DSO-TC3 Oscilloscope - 3-in-1 Handheld Oscilloscope & DDS Signal Generator & Transistor Tester, 500Khz Bandwidth 10MSa/s Sampling Rate, 6 Types of Waveforms, Transistors Measure

DSO-TC3 transistor tester can automatically identify and measure various transistors, including NPN and PNP transistors, N-channel and P-channel field effect transistors, junction field effect transistors, diodes, dual diodes, thyristors, and resistors, inductors, capacitors and other passive components. Automatic detection of pin definition. Automatically analyze NEC protocol infrared code.
DSO-TC3 transistor tester is especially suitable for fast pairing of transistors, identification of mixed surface mount and wordless components, and preliminary screening of small batch components. "Mos Test" mode can test various types of transistors, and can identify device type, pin polarity, hFE, turn-on voltage, junction capacitance, can test capacitance, resistance, inductance components, etc.
Other functional modes: Including circuit continuity test, 0~40V input voltage measurement, PWM output, 0~32V regulated diode measurement, DS18B20 temperature sensor measurement, DHT11 temperature and humidity sensor measurement.
Six waveforms: sine, square, pulse stroke, triangle, ramp and DC.
Product Description

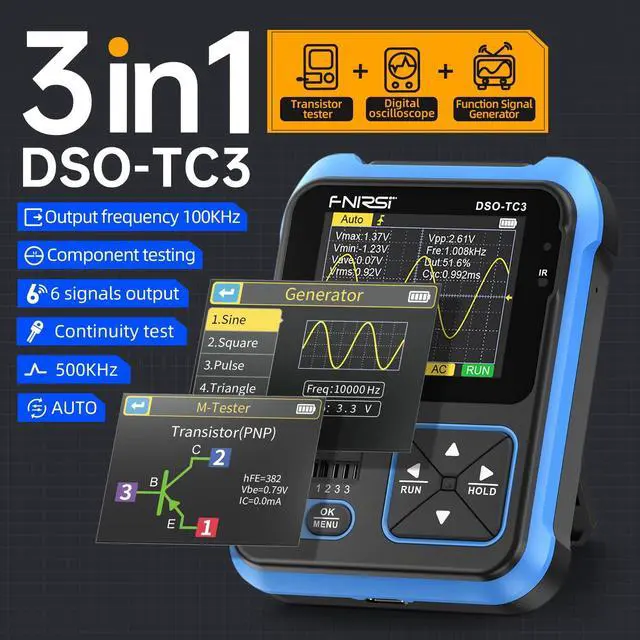

FNIRSI DSO-TC3 Oscilloscope - 3-in-1 Handheld Oscilloscope & DDS Signal Generator & Transistor Tester

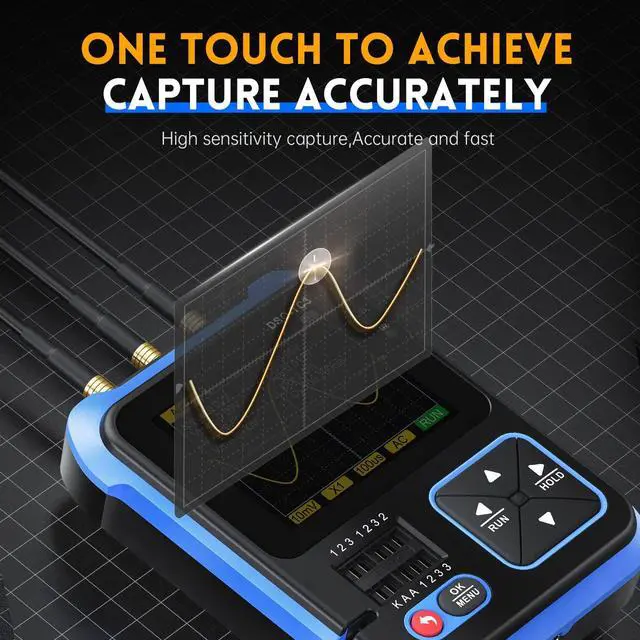

Handheld Oscilloscope

DSO-TC3 oscilloscope has a real-time sampling rate of 10MS/s and a 500kHz bandwidth.

With complete trigger function (Single, Normal, Automatic), it can be used freely for both periodic analog signals and aperiodic digital signals.

Up to ±400V voltage signal can be measured.

Equipped with efficient one-key AUTO, the measured waveform can be displayed without cumbersome adjustment.

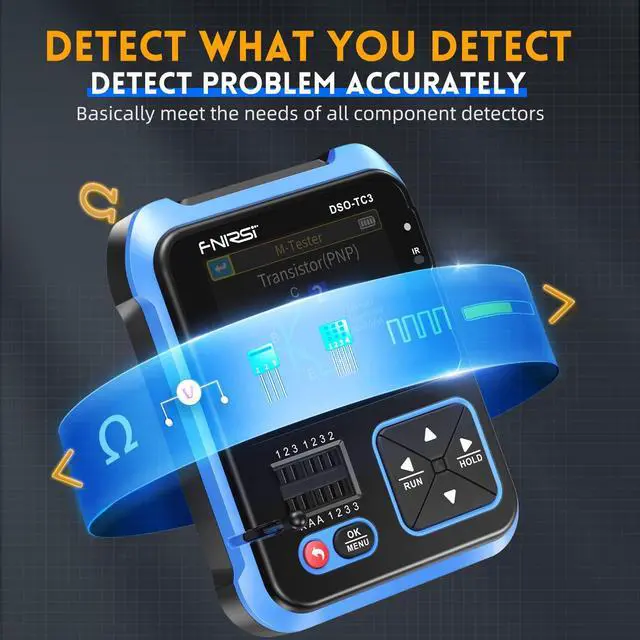

Transistor Tester

DSO-TC3 is especially suitable for fast pairing of transistors, identification of mixed surface mount and wordless components, and preliminary screening of small batch components.

DSO-TC3 can automatically identify and measure various transistors. Including NPN and PNP transistors, N-channel and P-channel field effect transistors, junction field effect transistors, diodes, dual diodes, thyristors, and resistors, inductors, capacitors and other passive components. Automatic detection of pin definition. Automatically analyze NEC protocol infrared code.

DSO-TC3 also can identify device type, pin polarity, hFE, turn-on voltage, junction capacitance; can test capacitance, resistance, inductance components, etc.

Function Signal Generator

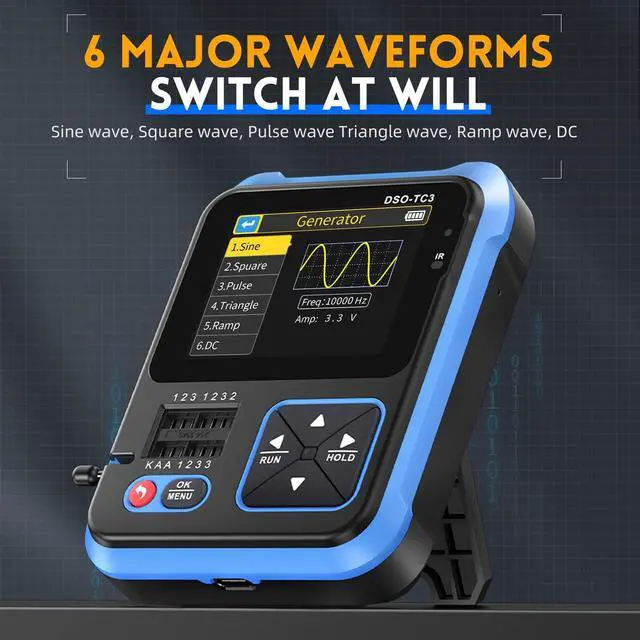

The signal generator has a total of 6 waveforms to choose from, with adjustable frequency and amplitude.

Triangle wave: 1-10KHz/0- 3.3V /50%.
Square wave: 1-100KHz/ 3.3V /50%.
Pulse wave: 1-100KHz/ 3.3V /0-100%.
Triangle wave: 1-10KHz/0- 3.3V /50%.
Ramp: 1-10KHz/0- 3.3V /0-100%. DC 0- 3.3V

Tool Box

Automatic detection of pin definition.

Automatically analyze NEC protocol infrared code.

Other functional modes: Including circuit continuity test, 0~40V input voltage measurement, PWM output, 0~32V regulated diode measurement, DS18B20 temperature sensor measurement, DHT11 temperature and humidity sensor measurement, etc.

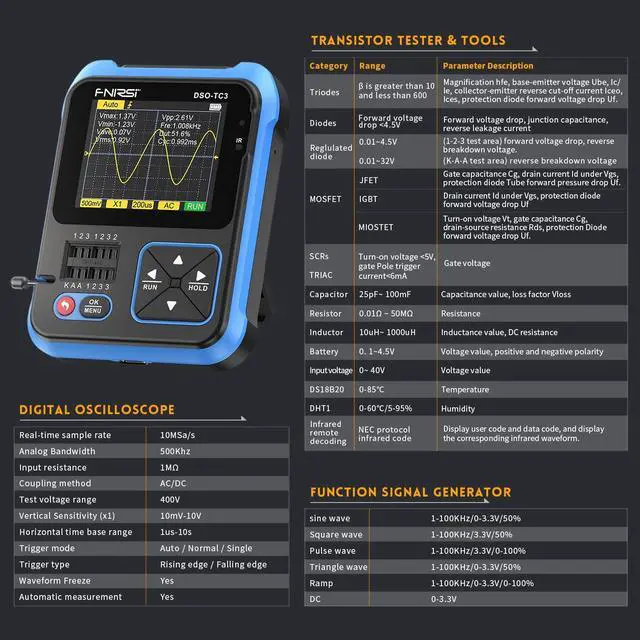

DSO-TC3 Basic Parameters

Display screen 2.4 inch TFT color screen, LED backlight

Supply voltageRechargeable lithium battery

Charging specifificationsUSB Type-C+5V

Product volume79*103*31mm

Bracket specifificationsAll-in-one foldable stand

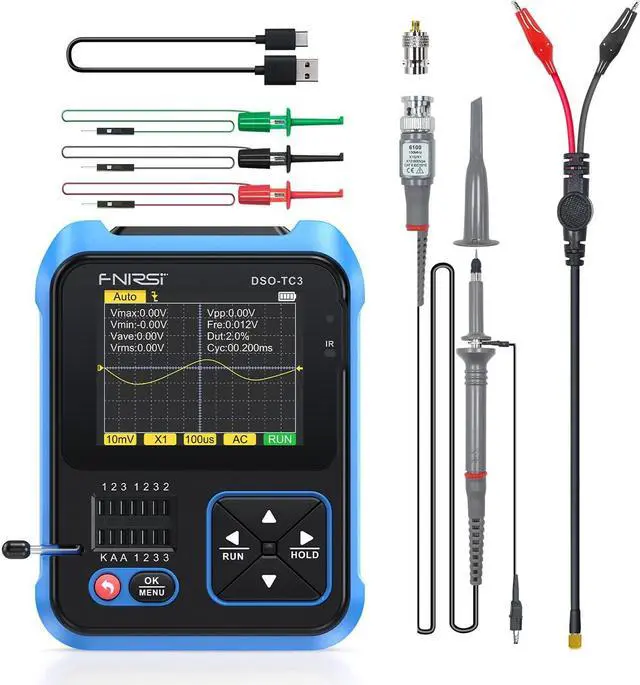

Package List

1. DSO-TC3*1, 2. P6100 High Voltage Probe*1,
3. Adapter*1,
4. Ordinary Probe*1,


5. Test Hook*3,
6. Packing Box*1,
7. Manual*1,
8. Type-C Charging Cable*1
