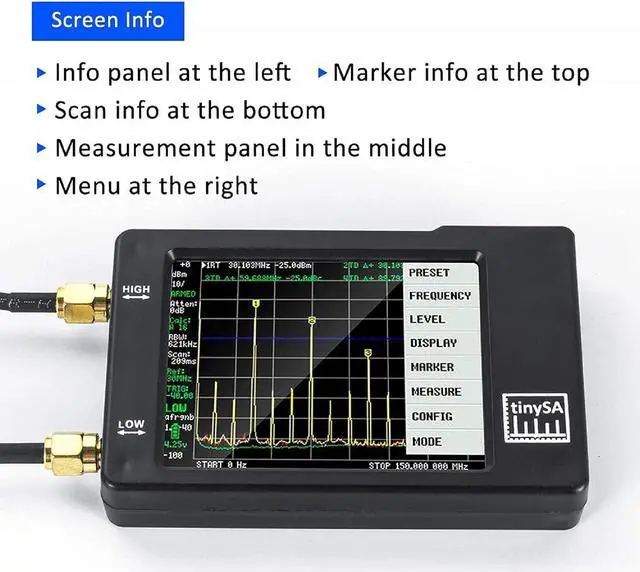

Portable Tinysa Spectrum Analyzer, AURSINC V0.3.1 Handheld Frequency Analyzer, Signal Generator 100kHz to 960MHz MF/HF/VHF UHF Input ESD Protected Function with 2.8 inch Touchscreen
- [Frequency Range] The tinysa spectrum analyzer with two inputs, high quality MF/HF/VHF input for 0.1MHZ-350MHz, lesser quality UHF input for 240MHz-960MHz. Switchable resolution bandpass filters for both ranges between 2.6kHz and 640kHz. The tinysa includes all the components of a traditional heterodyne swept spectrum analyzer, with a color display showing 290 scan points covering up to the full low or high frequency range

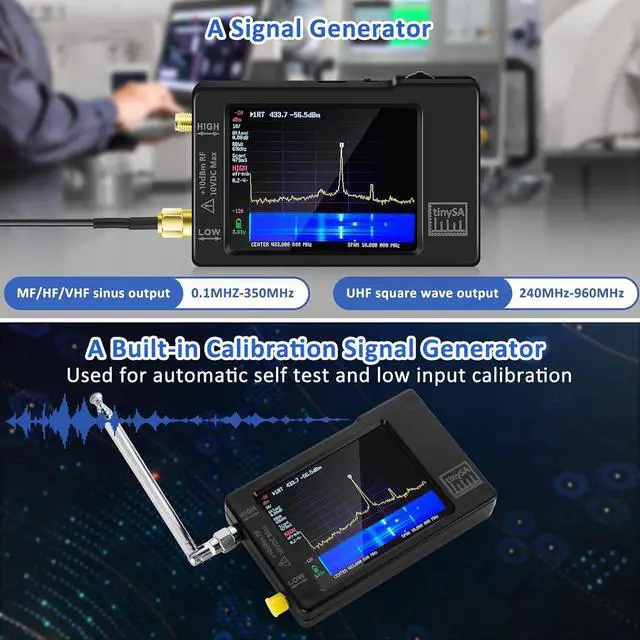

- [Built-in Calibration Signal Generator] When not used as Spectrum Analyzer it can be used as Signal Generator, MF/HF/VHF sinus output between 0.1MHZ-350MHz, UHF square wave output between 240MHz-960MHz. Built-in calibration signal generator enables automatic self-test and low input calibration
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
[Upgraded Version V 0.3. 1, ESD Protection Diodes] Tinysa with latest hardware V 0.3. 1. The firmware of the tinySA can be updated, for newest firmware version update, please
refer to: tinysa. org. The displayed version info indicates "ESD protection" with a diode for improved stability, sensitivity, anti-static level and longevity
[PC Control] The USB interface realizes the Serial over USB (CDC) protocol and a large number of commands can be called through the serial interface. The commands can be used for measurements or updating internal settings. The Windows driver will automatically install upon connecting to a Windows PC. The driver for Linux is built into the kernel. Tinysa-APP is available to control the tinysa and capture its screen
[Package List] 1x Tiny Spectrum Analyzer(with 500mah battary, 2.8 inch touchsreen); 2x 20cm/ 7.87 inch RF Cable; 1x USB-C Cable; 2x SMA Female to Female Connector; 1x Touchscreen Pen; 1x SMA Telescopic Antenna. Reliability you can trust, our spectrum analyzer caters to your diverse needs
Product Description
TinySA spectrum analyzer with latest firmware V 0.3. 1 is primarily intended for 0.1MH z to 350MHz input
Tinysa with
latest firmware V 0.3. 1
, produced by Hugen, brings improvements to our tinysa spectrum analyzer's performance and durability. The firmware of the tinySA can be updated, for
newest firmware version update
,
please refer to:
tinysa. org
.
refer to: tinysa. org. The displayed version info indicates "ESD protection" with a diode for improved stability, sensitivity, anti-static level and longevity
[PC Control] The USB interface realizes the Serial over USB (CDC) protocol and a large number of commands can be called through the serial interface. The commands can be used for measurements or updating internal settings. The Windows driver will automatically install upon connecting to a Windows PC. The driver for Linux is built into the kernel. Tinysa-APP is available to control the tinysa and capture its screen
[Package List] 1x Tiny Spectrum Analyzer(with 500mah battary, 2.8 inch touchsreen); 2x 20cm/ 7.87 inch RF Cable; 1x USB-C Cable; 2x SMA Female to Female Connector; 1x Touchscreen Pen; 1x SMA Telescopic Antenna. Reliability you can trust, our spectrum analyzer caters to your diverse needs
Product Description
TinySA spectrum analyzer with latest firmware V 0.3. 1 is primarily intended for 0.1MH z to 350MHz input
Tinysa with
latest firmware V 0.3. 1
, produced by Hugen, brings improvements to our tinysa spectrum analyzer's performance and durability. The firmware of the tinySA can be updated, for
newest firmware version update
,
please refer to:
tinysa. org
.
