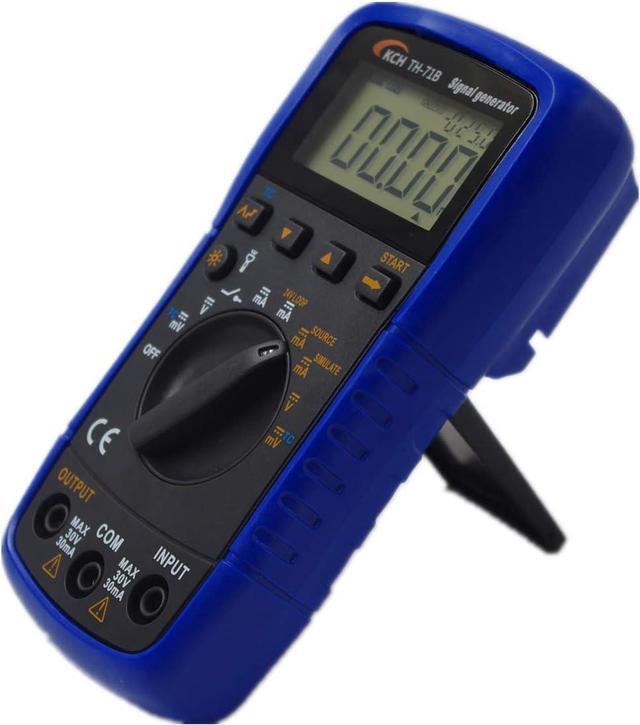

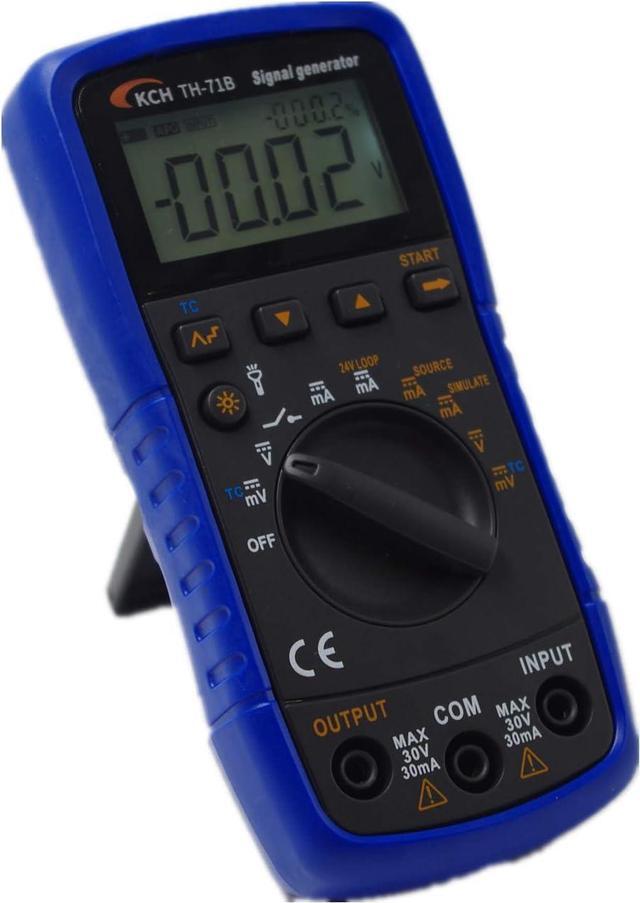

TH-71B Handheld Signal Generator Source Simulator Meter,DC Voltage Current Thermocouple K/E/J/T/B/R/S/N,24V Loop,V / mA Step Output

Manual step output for V and mA and auto waveform output.
The display screen is backlit and the meter has a flashlight on the back
Features:
1. Basic accuracy 0.2% for measure and source output.
2. Voltage and current and thermocouple measurement and source output.
3. 24V loop supply.
4. Manual step output for V and mA and auto waveform output.
5. LCD display, white backlight.
6. Temperature centigrade and Fahrenheit display

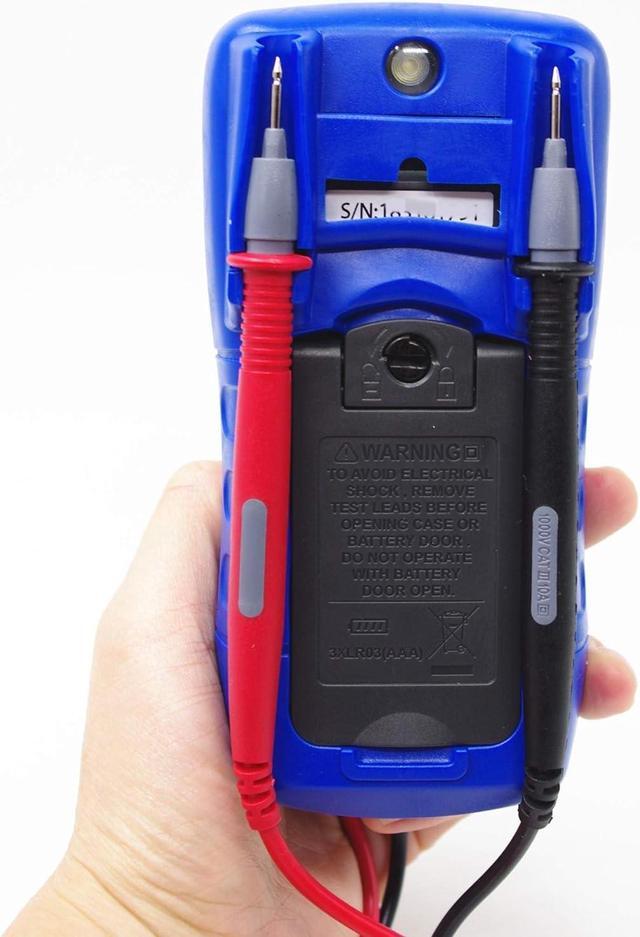

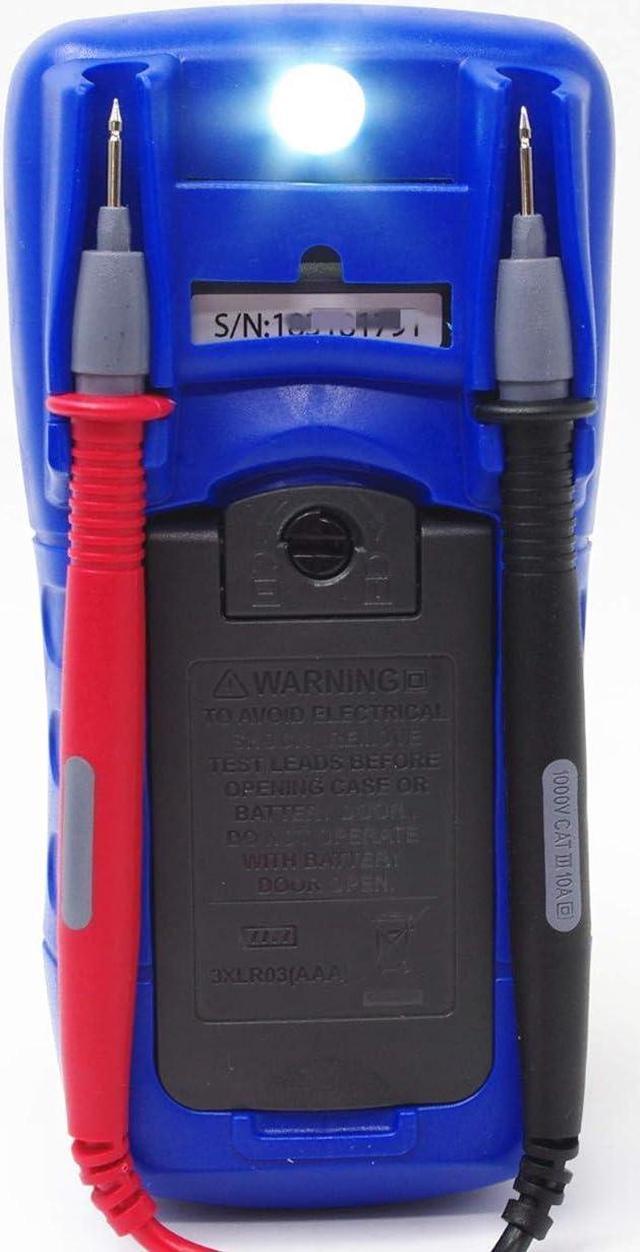

7.There is a flashlight on the back of the meter, which can be easily used in a dark environment.
Specifications:
Measurement function:
DC mV range: 100mV;
DCV range: 30V;
DC mA range: 20mA;
Loop supply: 24V;
Thermocouple range R: 0-1760, S: 0-1760, B: 400-1820, K: -200-1370,
E: -200-1000, J: -200-1200, T: -200-400, N: -200-1300.
Resolution: 1.
Accuracy: 0.5%+3
Source output function:
DC mV output range: 100mV; 0-110.0mV, resolution: 100uV, accuracy: 0.2%+4.
DCV output range: 10V; 0-11.00V, resolution: 10mV, accuracy: 0.2%+4.
DCA output range: 20mA; 0-22.00mA, resolution: 0.01mA, accuracy: 0.2%+4.
Simulate: -20mA; 0 to -22.00mA, resolution: 0.001mA, accuracy: 0.2%+4.
Thermocouple output range: R: 0-1760, S: 0-1760, B: 400-1800, K: 0-1350, E: 0-700, J: 0-950, T: 0-400, N: 0-1300.
Resolution: 1.
Accuracy: 0.5%+3
Manual step output: yes;
Auto waveform output: yes.
AAA*3PCS battery (NOT INCLUDED)

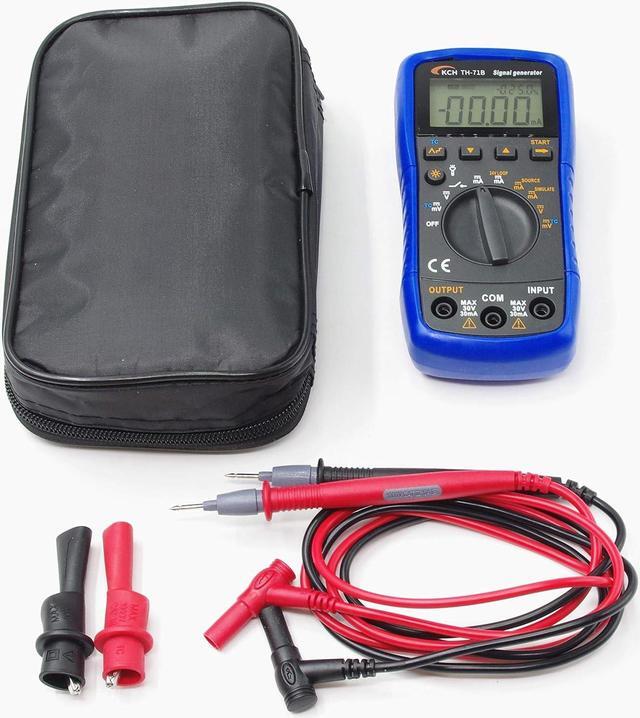

Package Including:
Signal Generator TH-71B

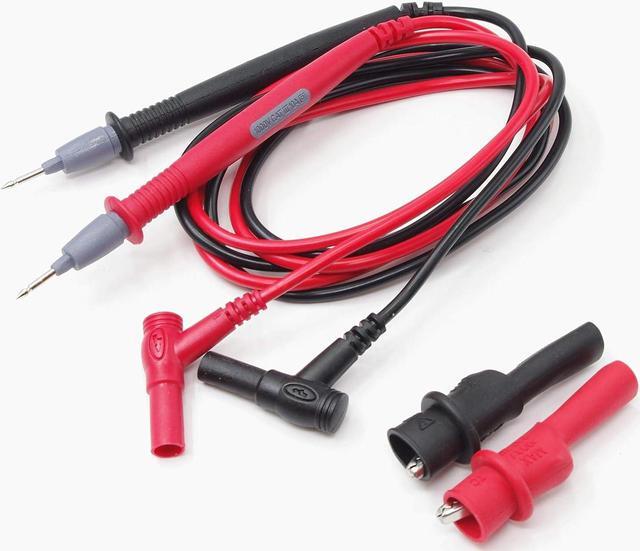

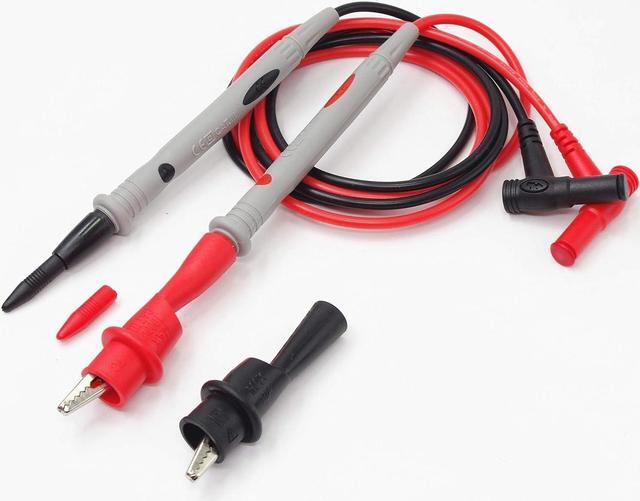

test leads X1
Soft bag X1
Alligator Clip X1
English manual
Brand:
TestHelper
