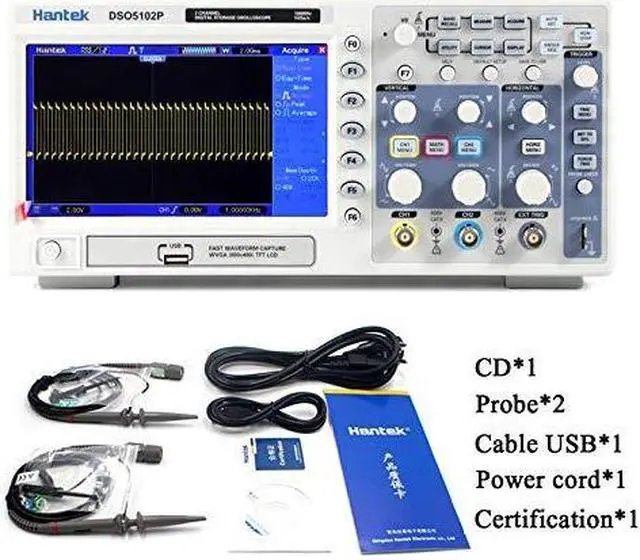

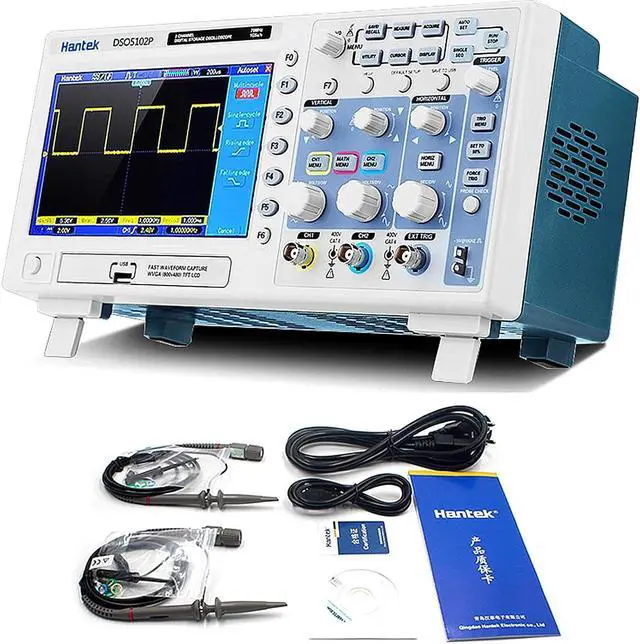

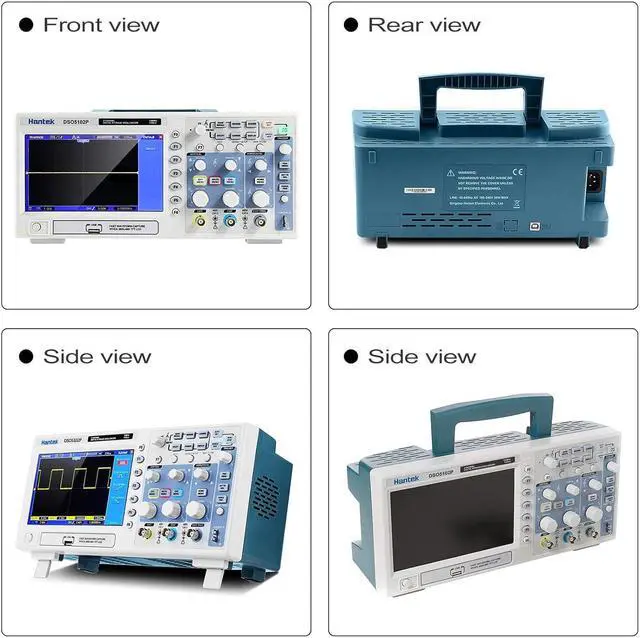

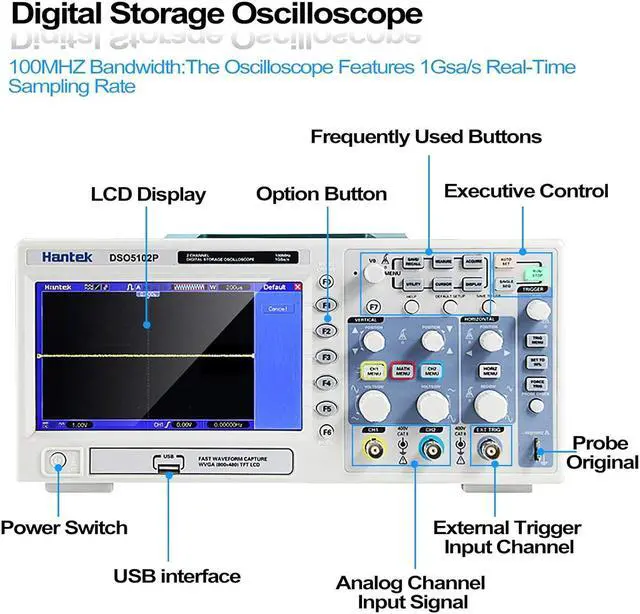

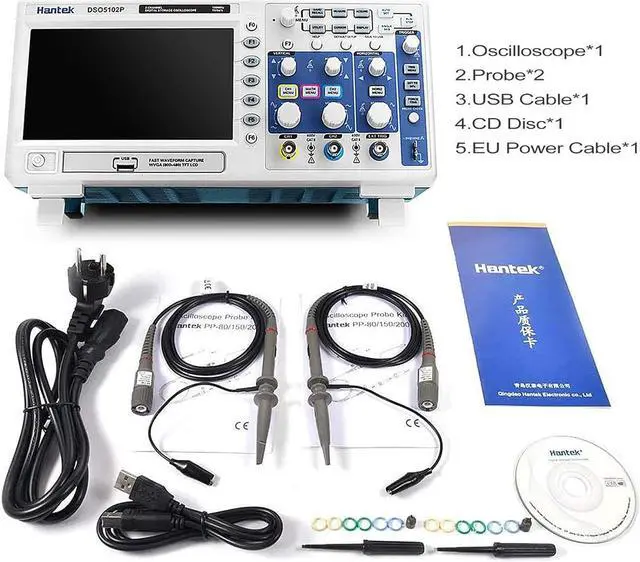

DSO5102P USB Storage Oscilloscope Oszilloskope 2 Channels 100MHz 1GSa/s
- Remote Control and U Disk Storage: Hantek DSO5102P oscilloscope can store more than 1000 waveforms information, and can upgrade the system through the USB port, support plug-and-play USB storage devices and communicate with the computer and remote control through USB.
- measure AC/DC Voltage and Current, Resistance, Diode, Continuity Buzzer

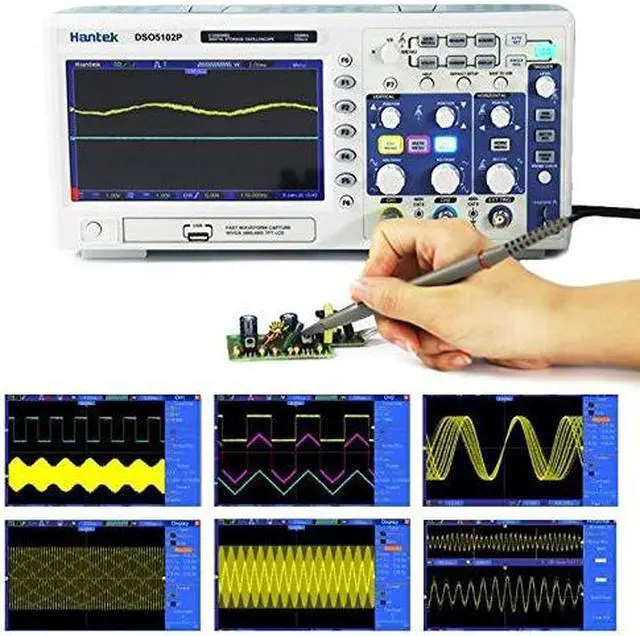

- Large TFT LCD Display: Large 7-inch 64K color TFT LCD display with a resolution of 800 * 480. It can clearly show any measured alternating current, including sine, square, sawtooth and triangular waves.
+
+
Overview
Specs
Reviews
A RS232C or USB standard serial port, data hold, relative mode,
Customer Service - If you have any questions about our product and service, please contact our after-sales customer service as soon as possible, we will solve it for you as soon as possible.
Product Description

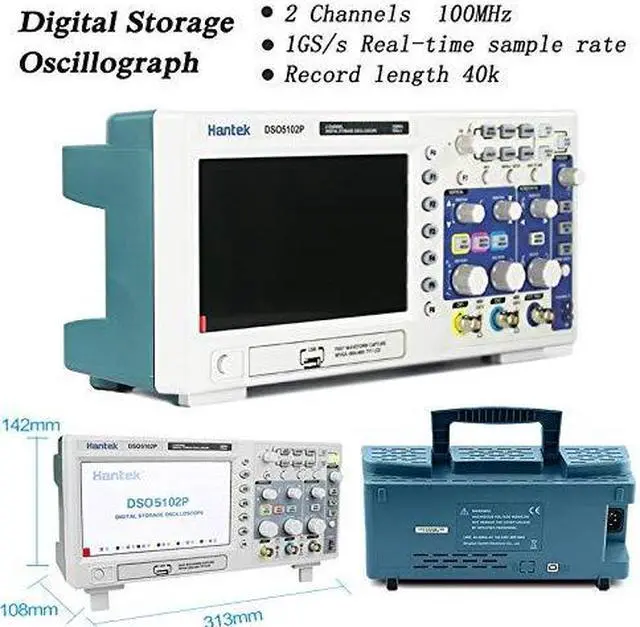

Hantek DSO5102P Digital Oscilloscope 100MHz 2Channels 40K 1GSa/s Real Time Sample Rate USB Host and Device Connectivity 7 Inch
Specification:
Model:
DSO5102P
Sample Rate: Real-Time Sample: 1GS/s;
Equivalent Sample: 25GS/s;
Average: Wavefom Average, selectable 4, 8, 16, 32, 64, 128;
Inputs Coupling: AC, DC, GND;
Inpits Impendance: 1M±2% 20pF±3pF;
Probe Attenuation: 1X, 10X;
Supported Probe Attenuation Factor: 1X, 10X, 100X, 1000X;
Horizontal
Sample Rate Range: 500MS/s--1GS/s
Waveform Interpolation: (sin x) /x
Record Length: 40K
SEC/DIV Range: 2ns/div to 80s/div
Sample Rate and Delay Time Accuracy: ±50ppmat over any 1ms time interval)
Vertical
Vertical Resolution: 8-bit resolution, all channel sampled simultaneously;
Bandwidth100MHz
Rise Time at BNC ( typical) 3.5 ns;
Math +, -, *, /, FFT;
Customer Service - If you have any questions about our product and service, please contact our after-sales customer service as soon as possible, we will solve it for you as soon as possible.
Product Description
Hantek DSO5102P Digital Oscilloscope 100MHz 2Channels 40K 1GSa/s Real Time Sample Rate USB Host and Device Connectivity 7 Inch
Specification:
Model:
DSO5102P
Sample Rate: Real-Time Sample: 1GS/s;
Equivalent Sample: 25GS/s;
Average: Wavefom Average, selectable 4, 8, 16, 32, 64, 128;
Inputs Coupling: AC, DC, GND;
Inpits Impendance: 1M±2% 20pF±3pF;
Probe Attenuation: 1X, 10X;
Supported Probe Attenuation Factor: 1X, 10X, 100X, 1000X;
Horizontal
Sample Rate Range: 500MS/s--1GS/s
Waveform Interpolation: (sin x) /x
Record Length: 40K
SEC/DIV Range: 2ns/div to 80s/div
Sample Rate and Delay Time Accuracy: ±50ppmat over any 1ms time interval)
Vertical
Vertical Resolution: 8-bit resolution, all channel sampled simultaneously;
Bandwidth100MHz
Rise Time at BNC ( typical) 3.5 ns;
Math +, -, *, /, FFT;
