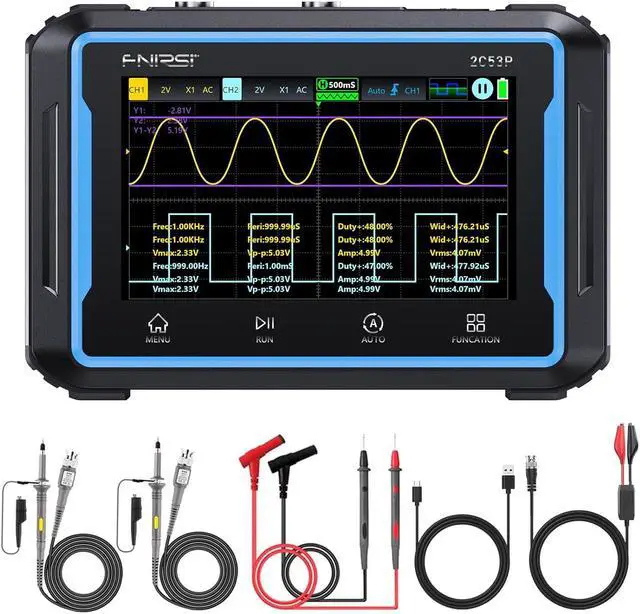

3in1 Oscilloscope/Multimeter/DDS Signal Generator Tablet Touch Screen Portable Digital Automotive Oscilloscope 2 Channel 50MHz Bandwidth 250Ms/S Counts 4.3 Inch
- Oscilloscope/Multimeter/DDS Signal Generator 3in1Upgraded from 2C23T, FNIRSI 2C53P not only has combined the functions of dual channels oscilloscope, digital multimeter and signal generator, but also highly improved its performances in all aspects you could imagined. It is touchscreen, handheld and portable, easy for electricians or DIY enthusiastics to use outdoor and indoor.
- Oscilloscope Mode The oscilloscope adopts FPGA+MCU+ADC hardware architecture, which highly advanced and protect itself from overheat and ensure a strong capture function. It has a sampling rate of 250MS/s, an analog bandwidth of 50Mhz and a built-in high-voltage protection module. It supports a maximum peak voltage measurement of ±400V; supports waveform screenshots.
- Multimeter Mode4 and a half digit 19999 Counts. It could measure both AC and DC voltage, measure the current, capacitance, resistance, diode, continuity, and temperature, etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
DDS Function Signal Generator ModeIt can output 12 kinds of function signals such as sine, square, triangle, full, half, noise, and DC etc. The maximum output of the signal generator is 10MHz, with a step of 1Hz. The output frequency, amplitude, and duty cycle are adjustable.
Accurate AnalysisThe 2C53P oscilloscope has excellent analyzation function. It has afterglow, FFT spectrum analysis, cursor measurement, LISSAJOUS graphics display, etc., visually displaying the relationship of signals, quickly analyzing the signal frequency ingredients, and helping you obtain the accuracy of analysis to the largest extent.
Product Description
FNIRSI 2C53P Oscilloscope/Multimeter/DDS Signal Generator
Upgraded from 2C23T, FNIRSI 2C53P not only has combined the functions of dual channels oscilloscope, digital multimeter and signal generator, but also highly improved its performances in all aspects you could imagined. It is touchscreen, handheld and portable, easy for electricians or DIY enthusiastics to use outdoor and indoor.
Basic Parameters
Screen size & resolution 4.3 Inch (480*272 pixels)
Screen materialSurface tempered glassSurface tempered glass + touch screen made of glass GLASS + IPS color screen
BacklightBacklight brightness can be set
Power supplyTYPE-C5V/2A
Battery4000mAh lithium battery
LanguageChinese, English, Pycc,, español, Português, Deutsch,
Product sizeabout 145x98x35mm
Product net weightabout 360g
Multimeter
DC Voltage 1.9999V / 19.999V / 199.99V / 1000.0V
AC voltage 1.9999V / 19.999V / 199.99V / 750.0V
DC current 19.999 mA/ 199.99 mA/ 1.9999A / 9.999A
AC current 19.999 mA/ 199.99 mA/ 1.9999A / 9.999A
Resistance 19.999M / 1.9999M / 199.99K / 19.999K / 1.9999K / 199.99
Capacitance 999.9 uF/ 99.99 uF/ 9.999 uF/ 999.9 nF/ 99.99 nF/ 9.999 nF/ 9.999 mF/ 99.99 mF
Temperature(-55~1300)/(-67~2372)
DiodeYes
Continuity testYes
Signal Generator
ChannelSingle channel
Frequency0-10MHzSine wave: 10MHz, other waveforms 5MHz
Amplitude 0.1V - 3.0V
Square wave duty cycle: 0-100%
Signal typesinusoidal wave, square wave, sawtooth wave, half wave, full wave, positive step wave, negative step wave, DC signal, exponential rise, exponential fall, multi-audio, and sync pulse
WHAT IS INLCUDED IN THE PACKAGE:
1. 2C53P2CH Touchable Oscilloscope Multimeter 3in1*1
2. P6100 Probe *2
3. Multimeter probe *1
4. Alligator clip probe *1
5. Data cable *1
6. Product Manual *1
Accurate AnalysisThe 2C53P oscilloscope has excellent analyzation function. It has afterglow, FFT spectrum analysis, cursor measurement, LISSAJOUS graphics display, etc., visually displaying the relationship of signals, quickly analyzing the signal frequency ingredients, and helping you obtain the accuracy of analysis to the largest extent.
Product Description
FNIRSI 2C53P Oscilloscope/Multimeter/DDS Signal Generator
Upgraded from 2C23T, FNIRSI 2C53P not only has combined the functions of dual channels oscilloscope, digital multimeter and signal generator, but also highly improved its performances in all aspects you could imagined. It is touchscreen, handheld and portable, easy for electricians or DIY enthusiastics to use outdoor and indoor.
Basic Parameters
Screen size & resolution 4.3 Inch (480*272 pixels)
Screen materialSurface tempered glassSurface tempered glass + touch screen made of glass GLASS + IPS color screen
BacklightBacklight brightness can be set
Power supplyTYPE-C5V/2A
Battery4000mAh lithium battery
LanguageChinese, English, Pycc,, español, Português, Deutsch,
Product sizeabout 145x98x35mm
Product net weightabout 360g
Multimeter
DC Voltage 1.9999V / 19.999V / 199.99V / 1000.0V
AC voltage 1.9999V / 19.999V / 199.99V / 750.0V
DC current 19.999 mA/ 199.99 mA/ 1.9999A / 9.999A
AC current 19.999 mA/ 199.99 mA/ 1.9999A / 9.999A
Resistance 19.999M / 1.9999M / 199.99K / 19.999K / 1.9999K / 199.99
Capacitance 999.9 uF/ 99.99 uF/ 9.999 uF/ 999.9 nF/ 99.99 nF/ 9.999 nF/ 9.999 mF/ 99.99 mF
Temperature(-55~1300)/(-67~2372)
DiodeYes
Continuity testYes
Signal Generator
ChannelSingle channel
Frequency0-10MHzSine wave: 10MHz, other waveforms 5MHz
Amplitude 0.1V - 3.0V
Square wave duty cycle: 0-100%
Signal typesinusoidal wave, square wave, sawtooth wave, half wave, full wave, positive step wave, negative step wave, DC signal, exponential rise, exponential fall, multi-audio, and sync pulse
WHAT IS INLCUDED IN THE PACKAGE:
1. 2C53P2CH Touchable Oscilloscope Multimeter 3in1*1
2. P6100 Probe *2
3. Multimeter probe *1
4. Alligator clip probe *1
5. Data cable *1
6. Product Manual *1
