Product Description

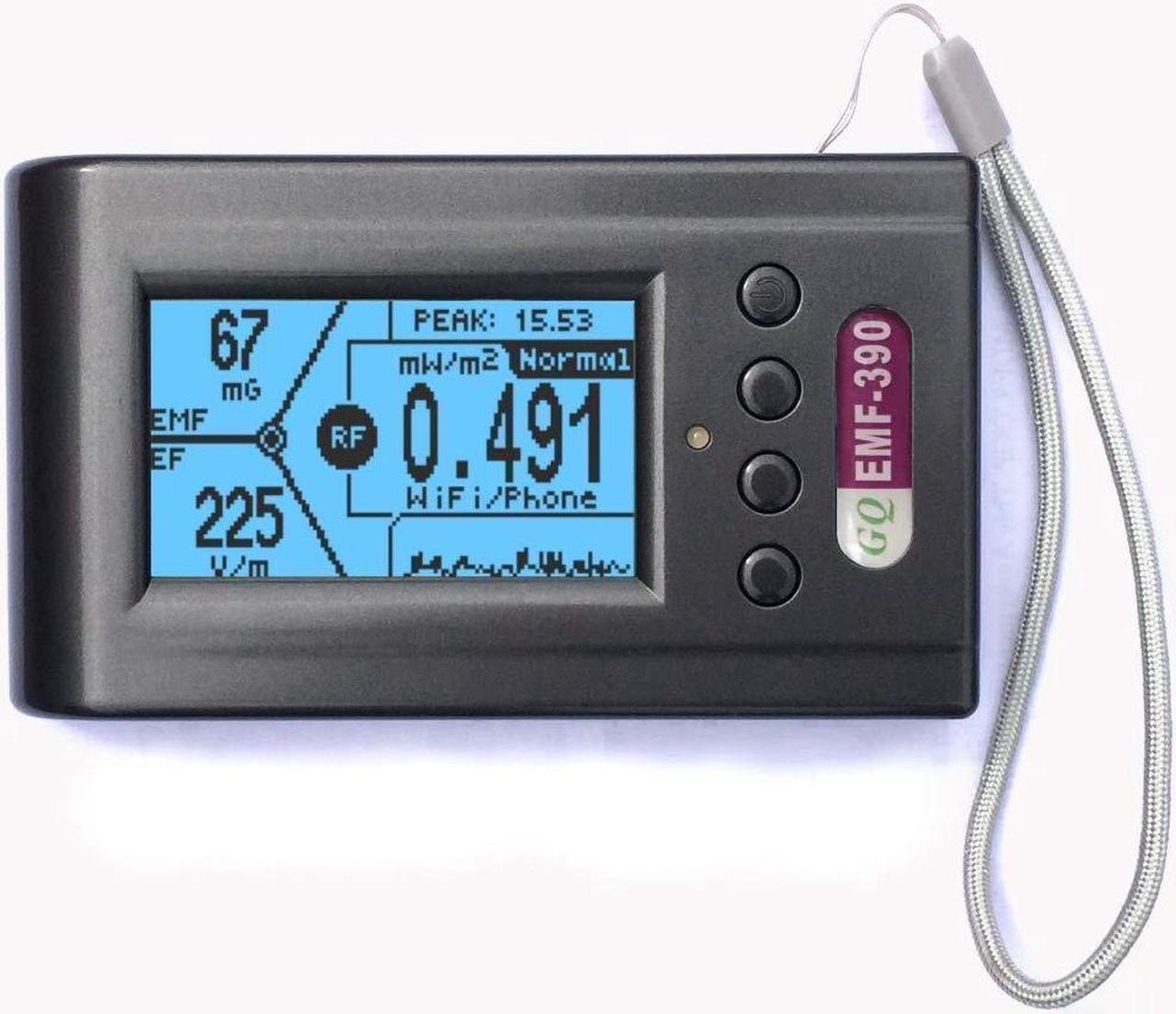

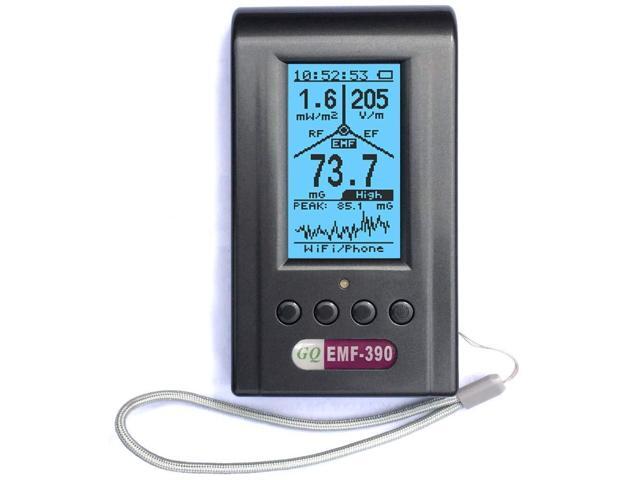

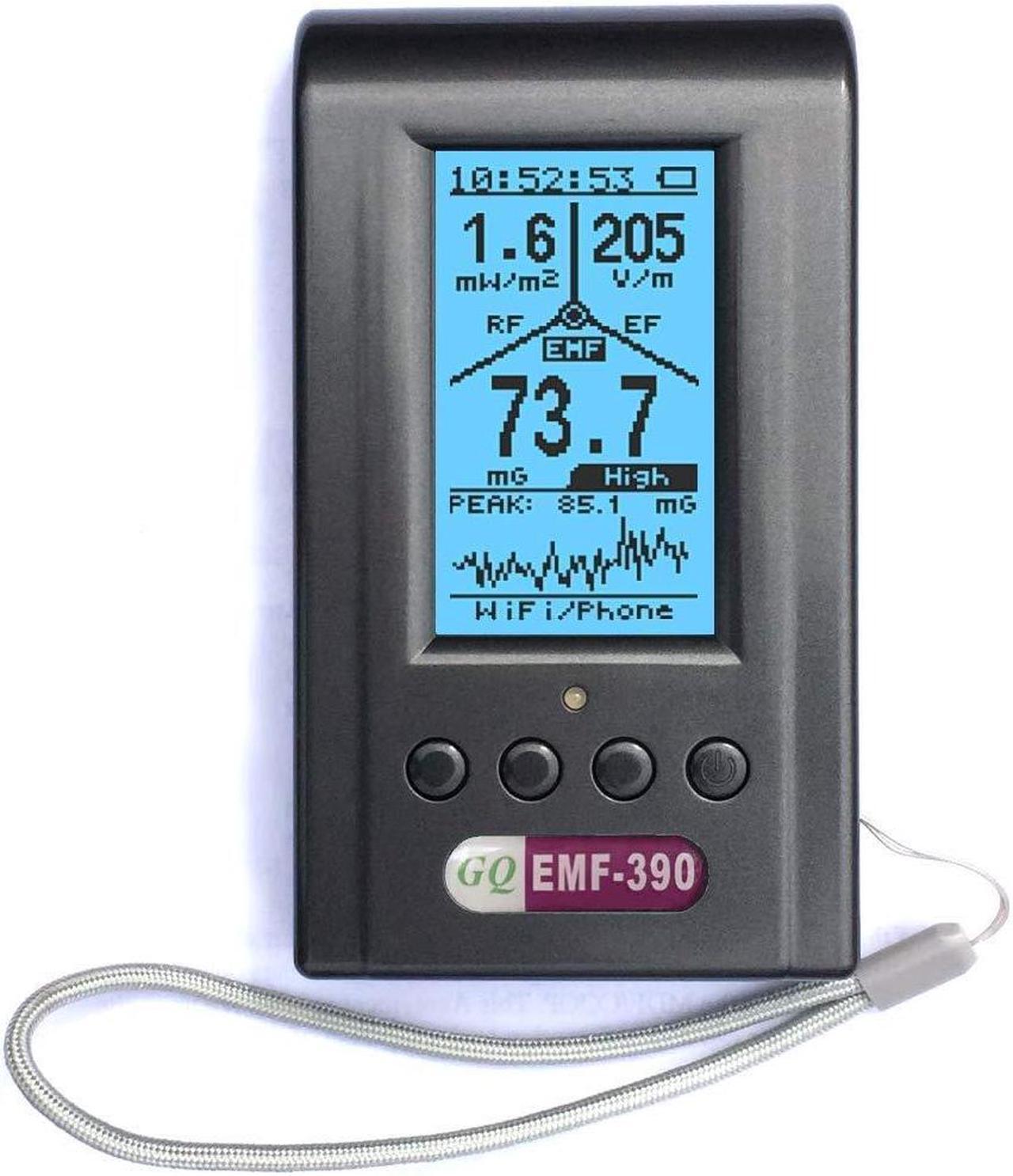

The GQ EMF-390 Advanced Multi-Function Digital EMF ELF Meter is a portable and convenient device created by GQ Electronics in Seattle, USA. It is suitable for general-purpose testing, detection, and various scientific applications, including assessing power lines, Wi-Fi, cell phones, cell towers, microwaves, smart meters, and more. This device integrates features such as a three-axis electromagnetic field, electric field, radio frequency, and radio spectrum power analyzer.

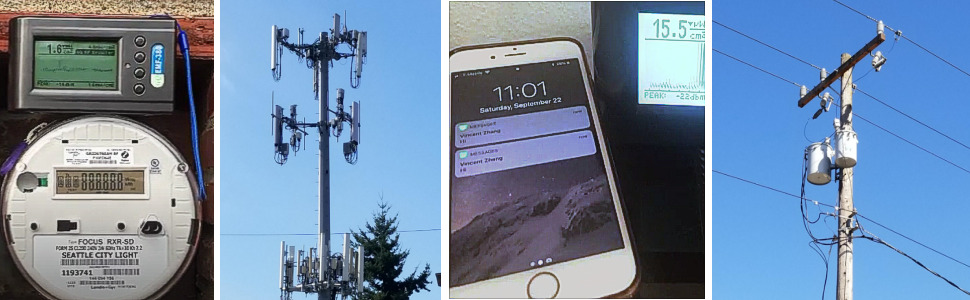

The meter excels in identifying and recognizing common sources of EMF/RF measurements, such as power lines, Wi-Fi, cell phones, cell towers, microwaves, etc. It includes a built-in audible and visual alarm for added convenience. The EMF-390 can be used for detecting and monitoring EMF, ELF, EF, and RF both indoors and outdoors, as well as in similar environments. When connected to a USB port for power, it continuously monitors radiation. Additionally, when connected to a PC, the included software allows users to download radiation data for later analysis.
Equipped with a high-contrast black/white LCD module and a front LED indicator, the device offers user-friendly features. The unique GQ RF browser feature visually represents RF radiation on the screen, providing an accurate display of estimated digital RF transmission data in bytes and RF power spectral histograms. The EMF-390 also boasts built-in flash memory, enabling real-time logging of EMF, EF, and RF power data every second. Users can easily download this data later using the free EMF-PRO software.
| EMF (Electromagnetic Field) | Triple axis (X, Y, Z) , 0.0~500mG, 0.0 to 50µT |
|---|---|
| EF (Electric Field) | 0-1000V/m, Res: 1 V/m |
| RF (Radiation Frequency) | 0.02µW/m² ~ 9999mW/m²; Detectable Frequency: up to 10GHz |
| RF Spectrum Analyzer | 50 ~ 65MHz, 65 ~ 76MHz, 76 ~ 108MHz, 300 ~ 348MHz, 387~ 464MHz, 779 ~ 928MHz, 2.4 ~ 2.504GHz |

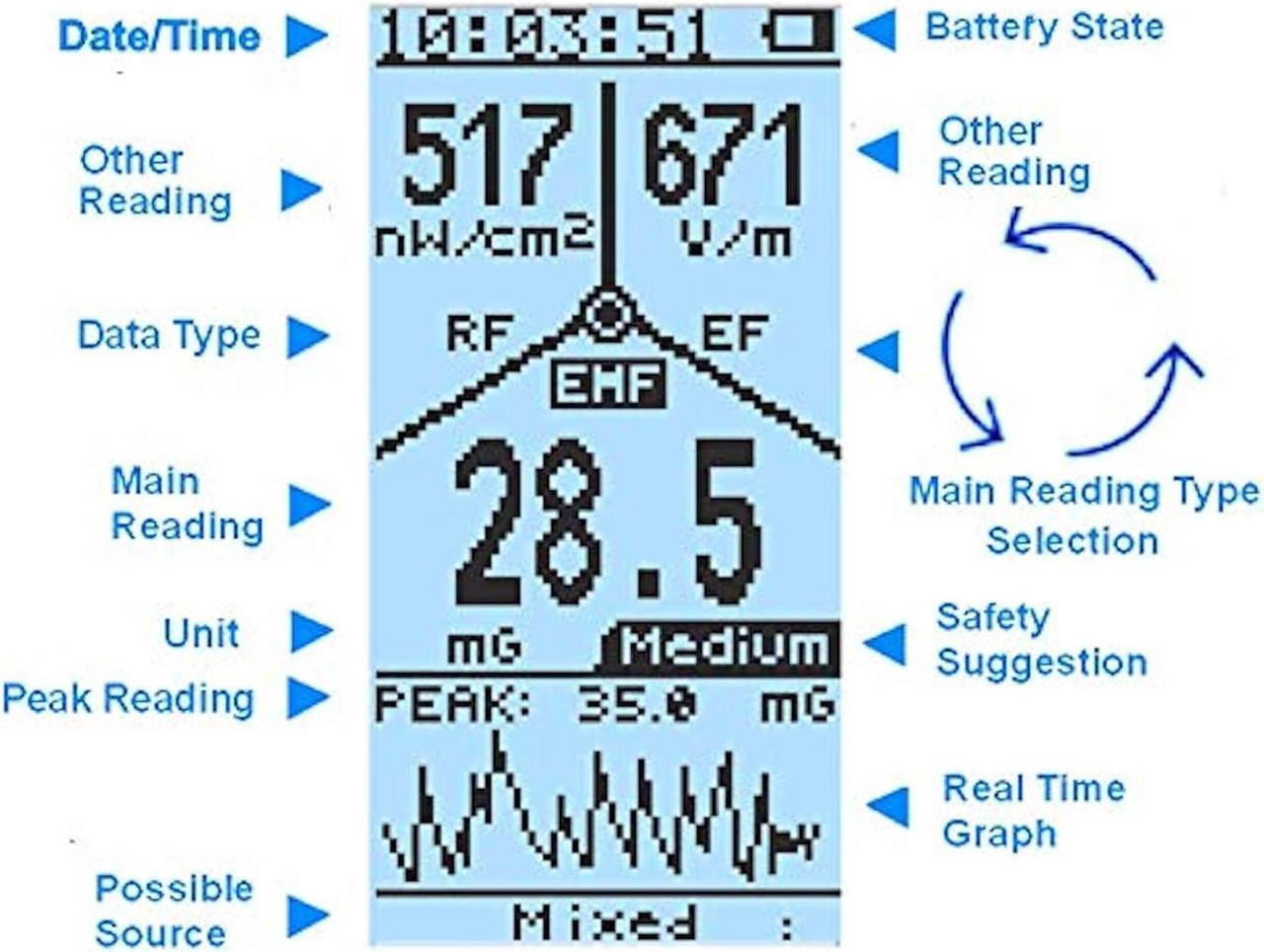

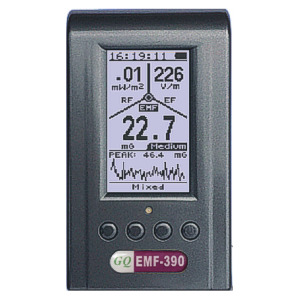

- The all-in-one display lets you see reading from all sensors at once
- Advanced features and multi-sensors to ensure the best detection from EMF, EF, and RF
- Compact design for easy testing and measurement
- Safety suggestion lets you understand the current situation instantly
- Radiation source recognition provides the fastest way to find out the radiation source

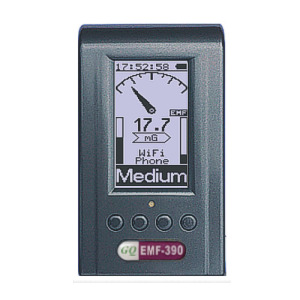

- With traditional analog style display, the data becomes even easier and faster to understand
- Left and right vertical bars are also indications of the EF and EMF radiation level at a glance
- Safety suggestion in large font for easier reading
- Real-Time clock displays the current time for time-sensitive testing
- Front LED visualizes alarm when triggered

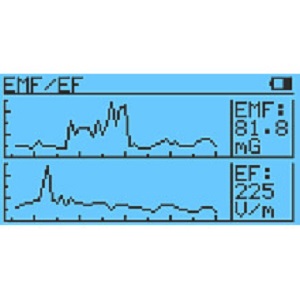

- Presents exact changes of EMF and EF radiation level been detected in past 45 seconds.
- The right side of graph shows a reading for both EMF and EF.

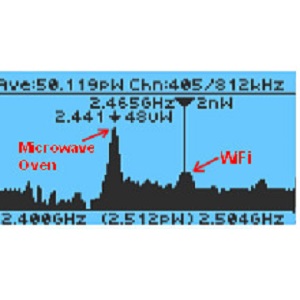

- Advanced users are able to use built-in RF Spectrum Analyzer to discover the RF signal power in a specific frequency.
- This graph shows two RF signal that has been detected at same time: Microwave oven and Wi-Fi signal.

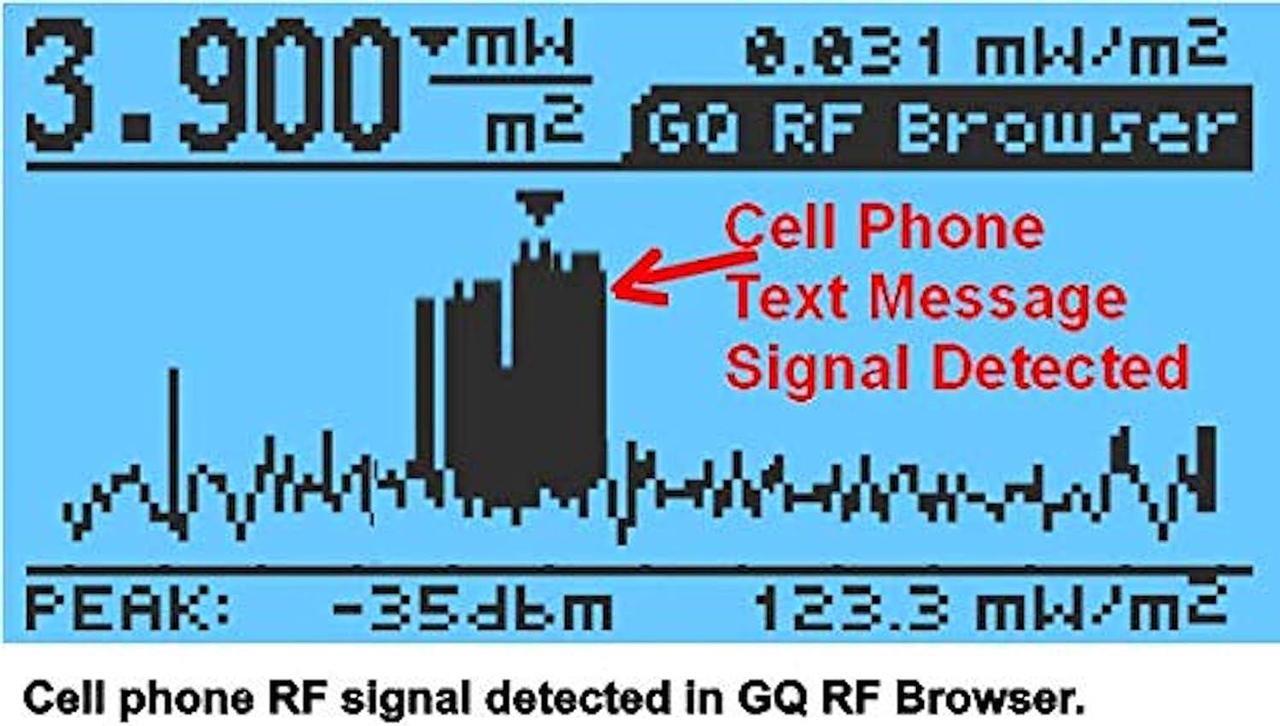

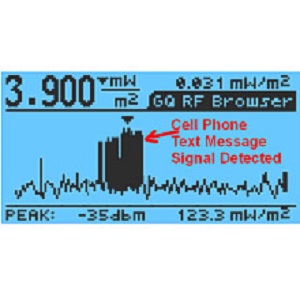

- GQ RF Browser is a unique feature of GQ EMF detector. The real-time graph is based on high sensitivity sensors.
- This graph shows a close by cell phone that just received a text message.

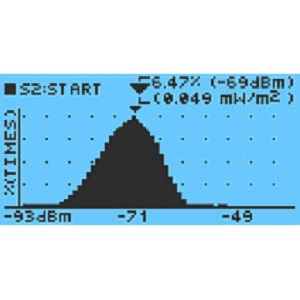

- RF power distribution is another important factor to let us understand how the RF radiation power distributed during the period.
- This graph shows the highest RF power is 6.47% of total at 0.049 Milliwatts per square meter during the testing period.
