Specification:

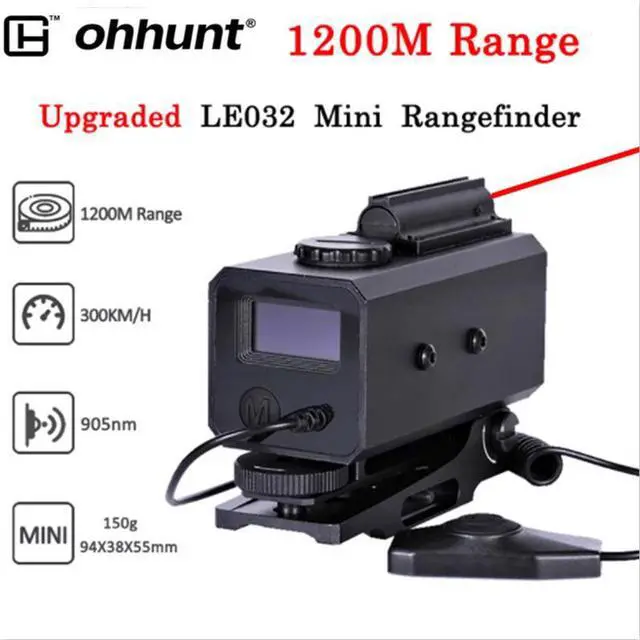

Measurement Range: 5 - 1200m
Accuracy: +/-1m
Speed Range: 0 - 300km/h
Water Resistance: IPX4

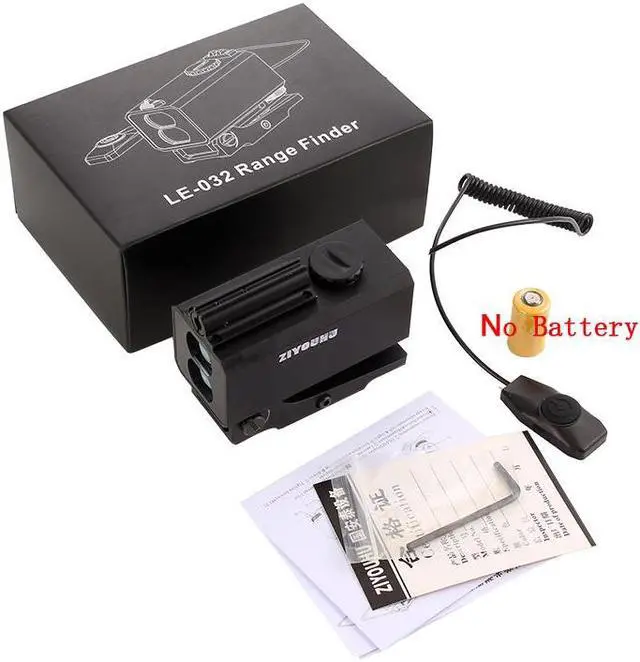

Battery: 3V CR2 (not included)
Display: OLED screen
Wave Length: 950nm
Material: Alloy

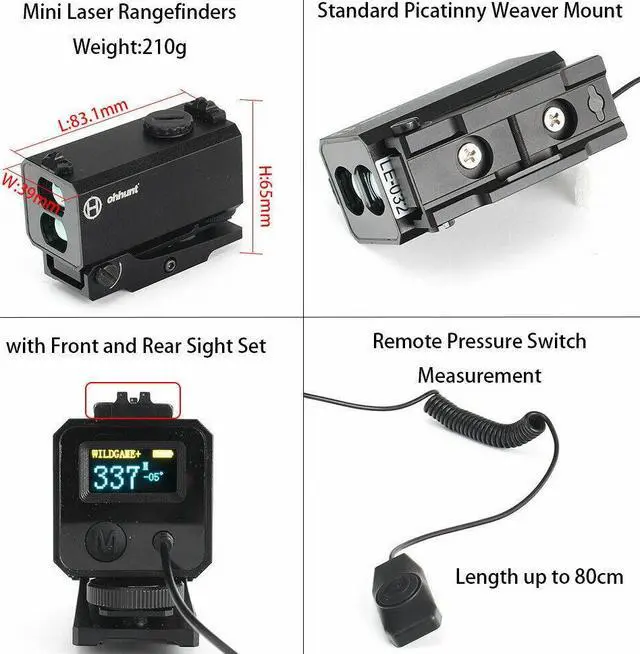

Dimension: 8.3 * 3.9 * 5.8 cm / 3.3 * 1.5 * 2.3 in
Weight: 223g / 7.9 oz
Description:
Continuous press the tail switch turns on the device.
Ranging mode is the default; this is the distance measurement mode.
continuous press the M button, change the unit of distance. M and Y.
Click the rat tail switch, the upward arrow will be appears at the bottom right of the screen,
That's mean the device is in the ranging mode. Measurement the distance.
Press M key to change the mode.
Multi-level power display.
In the "Speed" mode, the unit of the measured value needs to be converted separately. (Km/h or mile/h)
Pitch angle data by way of real time continuous output

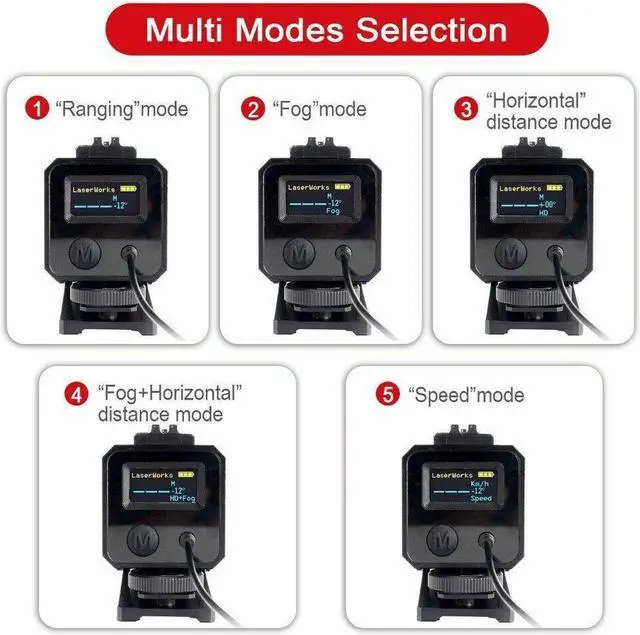

Ranging Mode:
Fog mode
Fog mode screen appears, press power key ranging
Fog mode can handle the interference caused by fog.
Horizontal distance measurement mode
Press power key to start measuring the distance and slope. After obtaining measurements.
Calculates and displays the horizontal distance and measuring slope.
Fog + Horizontal distance mode
Press power key to start.
In the fog can be horizontal distance measurement.
Fast lock into the target
Continuous measurment and real-time ranging.
Speed mode
Press power key to start the measurement speed.
In the speed mode. Long press M button to switch km/h and mile/h.
