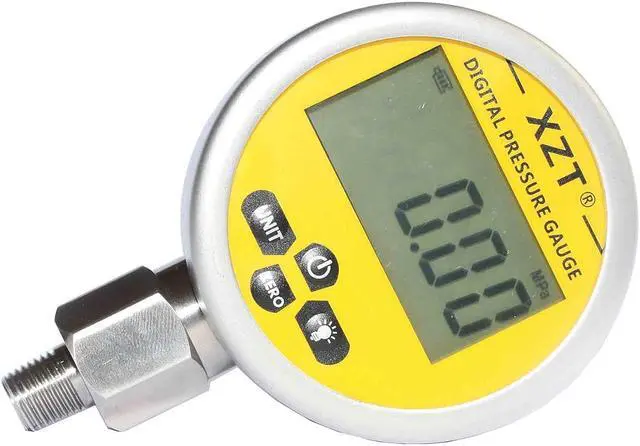

3.15" 10000 PSI Digital Hydraulic Pressure Gauge,Pressure Manometer, Pressure Sensor with 1/4-Inch NPT Connector,Base Entry

4:Backlight
5:Pressure Calibration
Specification:
Pressure Range: 0-10000PSI/700BAR;
Connection Thread: NPT1/4 male;
Display Unit: Bar, PSI ,MPa, Kgf/cm2;
Overload Capacity: 150%;
Accuracy: 0.5%FS;
Long-term Stability: 0.5%FS/year;

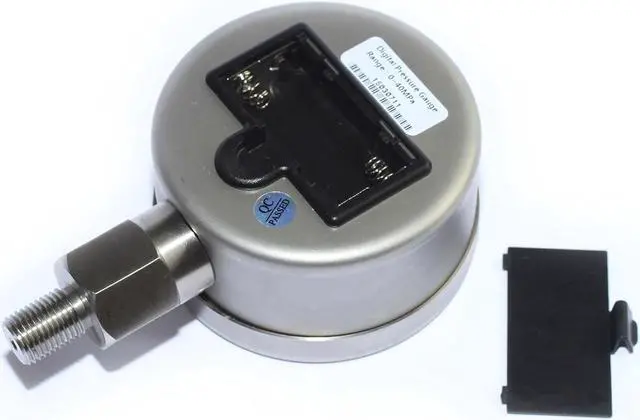

Input Voltage: 3V (two 1.5V AAA batteries);
Working Temperature: -20C-70C;
Footer Material and Pressure Connection: 304 Stainless Steel;
Protection Class: IP65
Thickness: 46mm(1.81inch);
Outline Dimension: 80mm(3.15inch);
Length:120mm(4.72inch).
Features:
Button Description:
Power button: press power button continuously for 3 seconds to Turn On or Turn Off;
UNIT button: shortly press Unit button to change the unit;
Long press "unit" button for 5 seconds, the display after the last reset
record maximum MAX;
Short press "unit" button, switch according to the minimum MIN.
Again short press "unit",then quit the records show.
ZERO button: pressure Zero button continuously for 3 seconds for zero clearing;
LIGHT button: press Light button shortly to turn on or turn off the light,will be closed automatically after 70 seconds.

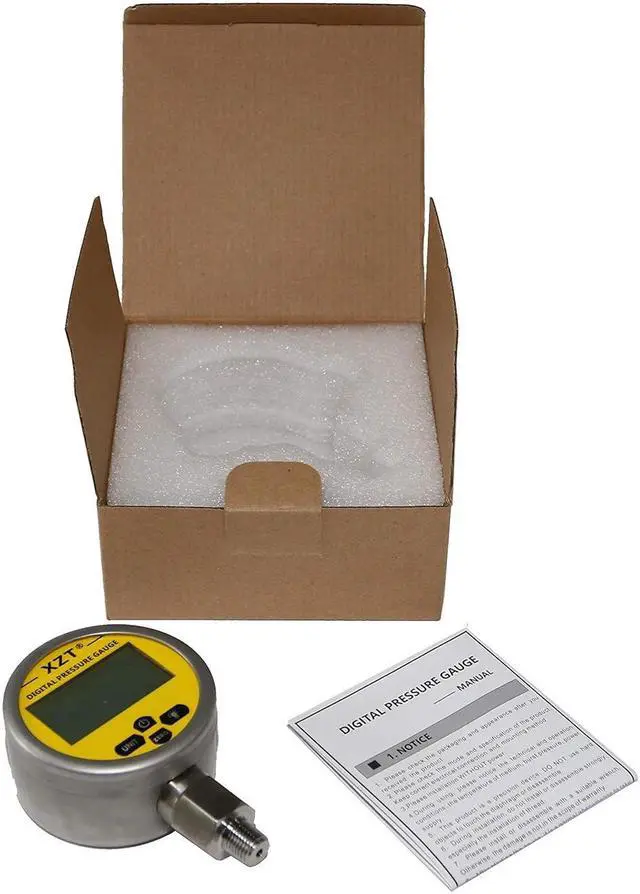

Package Content:
1 x Digital Pressure Gauge;
1 x Manual.
