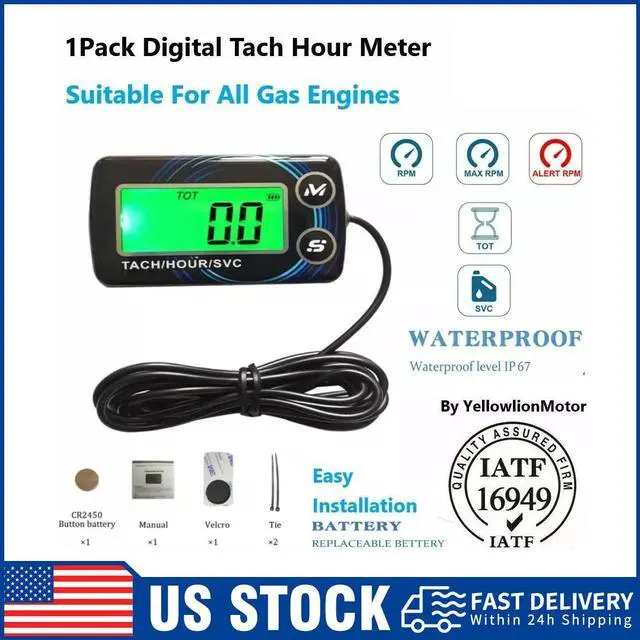

Digital Tachometer Tach Hour Meter For 2 & 4 Stroke Engines Motorcycle Kart

About this item:

Backlight LCD gasoline Inductive Tachometer for Paramotors, Microlights, Marine Engines - Inboards and Outboard Pumps, Generators, Mowesr, Model Boats, Motor Cycles, Scooters, Cleaners and Chainsaws.

The Tachometer will track engine hours and RPMs for 2 /4 stroke gasoline powered engines. The operation of the Hour meter is connected by 5 ft. insulated wire. You will wrap the wire around the spark plug for around 5 times. The meter is activated by the spark of the engine.

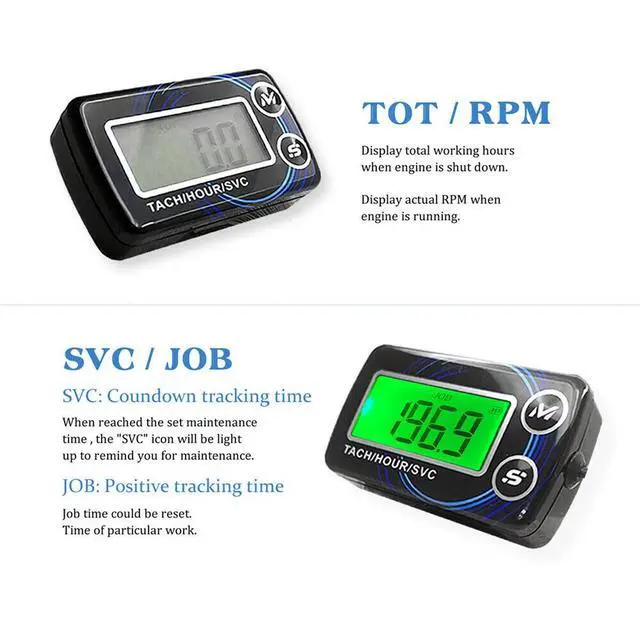

HOURS GAUGE ---- Total running hours TOT ;JOB timer used to measure the time of a particular work job, Like change oil, Air filter replacement etc.;Maintenance interval service timer(SVC )

RPM METER ---- Messuring and records your RPMs(0-25000RPM) when the engine is running; Recording and recall engine MAX RPM;RPM alert warning;

GREEN & RED BACKLIGHTS DISPLAY ---- Green backligh mode: always-on, OFF and automatical ; Red backlight will display to remind the RPM exceed warning.

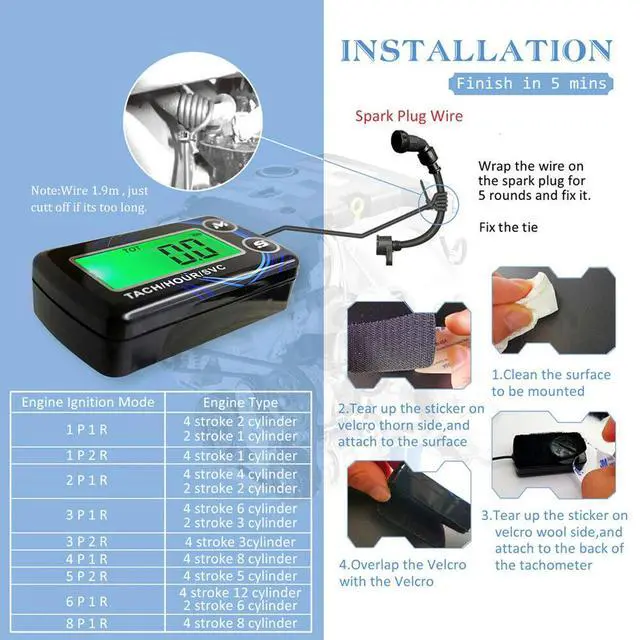

INSTALLATION ---- Simple mount it by stick-on and screw-on at any proper position;One wire hook-up design for engine signal detection with wire shorten or extend;

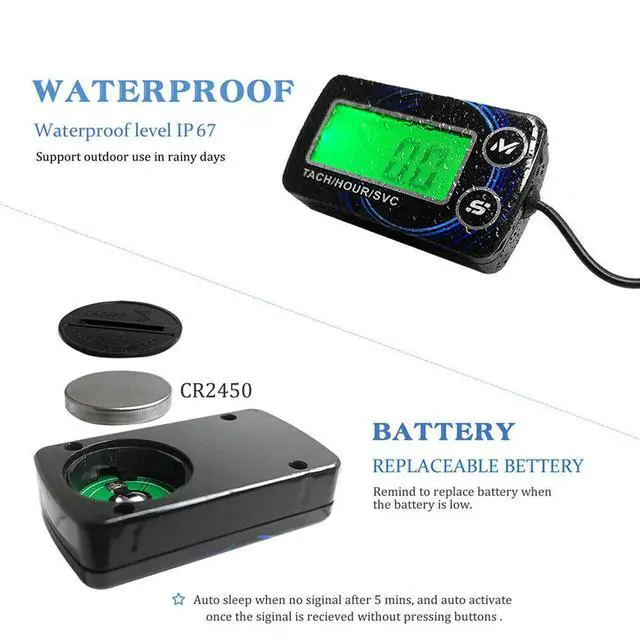

UNIQUE DESIGN ---- Built-in replaceable battery CR2450;Waterproof rating: IP67; User data will be retained after display shutdown or battery replaced;Reliable technical support and after-sales service(3 years).

Product Function:

Timing System Including:

Total running hours TOT,total hours are non-resettable

Partial running time JOB,partial hours are resettable

Maintenance timer can be set freely to 0-200 hours SVC

Hours Range 0-6000 hours with 0.1 hours accuracy

RPM Measuring System:

Measuring current engine RPM

recording and recall engine MAX RPM

Setting overspeed warning function and can resettable

RPM Range 0- 25,000,RPMs with 10 RPM accuracy.

Replaceable CR2450 battery.

Product Specification:

Waterproof Rate:IP67

Induction Wire:1.9M

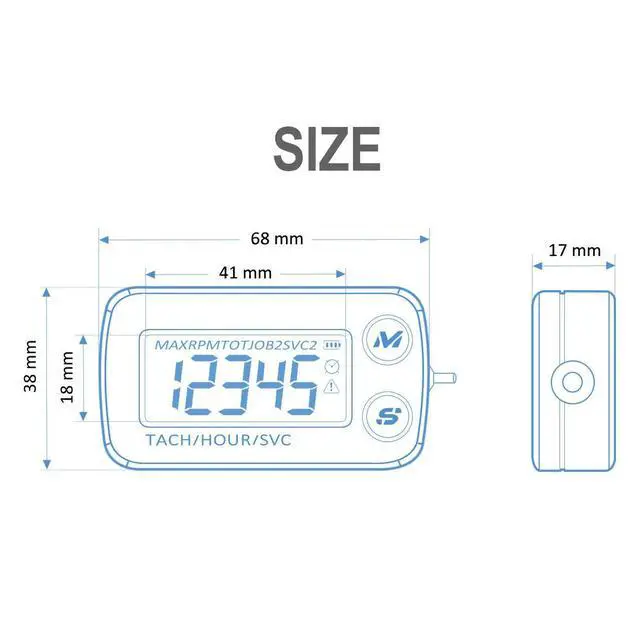

Product Size:68x18x17(mm)

Display Screen:LCD+GreenBacklight

Screen Size:41x18(mm)

Refresh Rate:0.5S/1S

Hours Range:0-6000H

RPM Range:0-25000RPM

RPM Alert Setting Range:1000-25000RPM

Housing Material:ABS

Package:Clamshell

N.W.45g

Length Battery Sepctification:CR2450

Timing Precision:0.1H

Maintinance Timer:0-200H

RPM Accuracy:10RPM

Applicative Engine Types:

2 Stroke Gasoline Engine of 1 Cylinder/ 2 Cylinders/ 3 Cylinders

4 Stroke Gasoline Engine of 1 Cylinder/ 2 Cylinders/ 3 Cylinders/ 4 Cylinders/ 5 Cylinders/ 6 Cylinders/ 8 Cylinders/ 12 Cylinders/

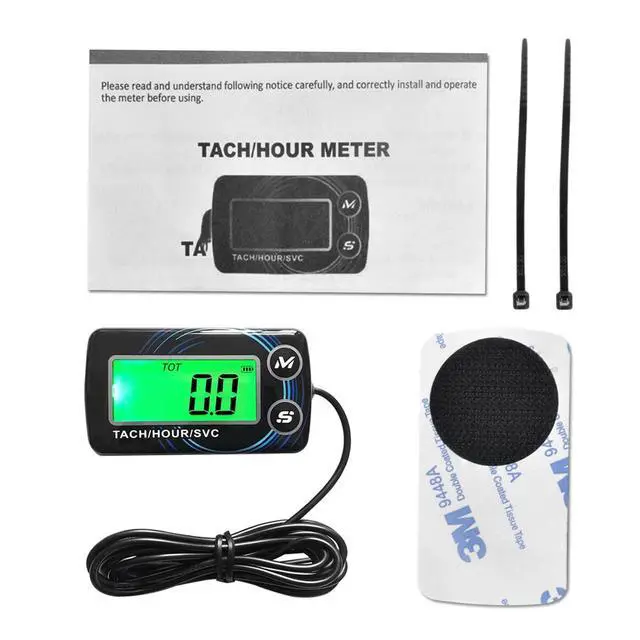

Package Includes:

1x Tach/Hour Meter with Wire

1 x Mount Accessories in the pictures

1x User Manual
