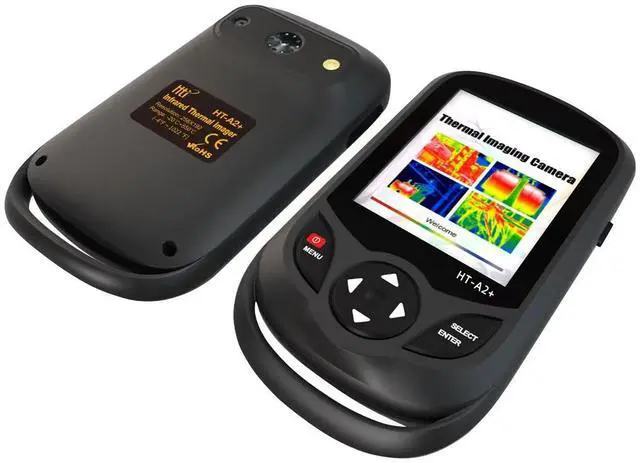

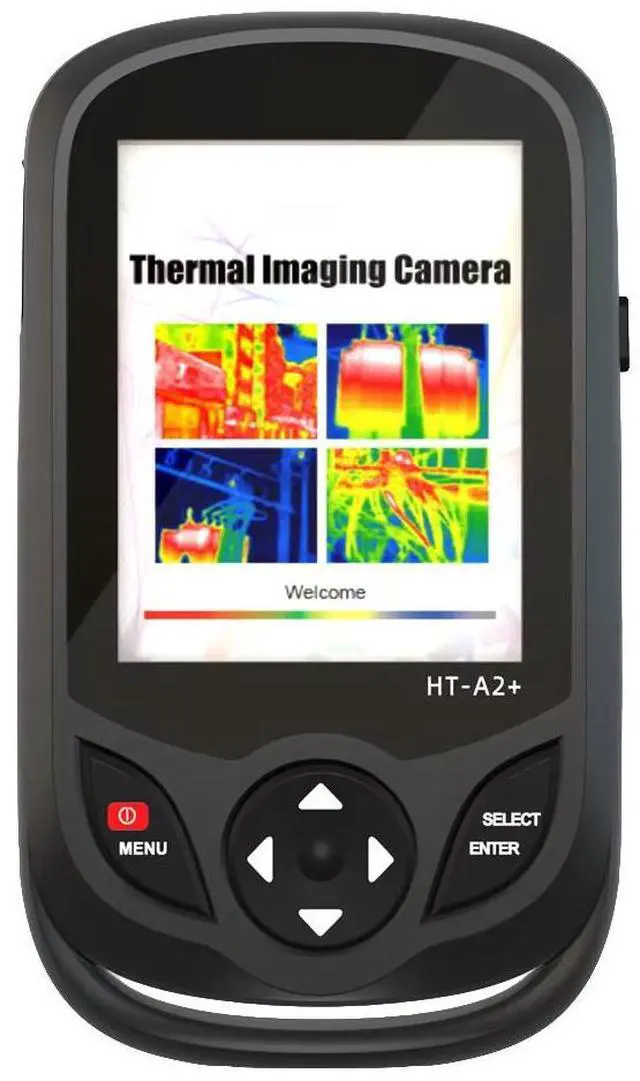

HTi HT-A2+ 3.2" Screen Thermal Imaging Camera 256 X 192 IR Resolution -20-550
- HTI HT-A2 Plus Thermal Imager 256X192 Dual-Camera Infrared Thermal Imager 5 Imaging Modes For Repair PCB Circuit Troubleshotting
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
| Product model | HT-A2+ | |||
| Display | 3.2inches full angle TFT display screen | |||
| Infrared image resolution | 256 x192(49,152pixles) | |||
| Visible image resolution | 640x480(307,200 pixles) | |||
| Pixel size | 12um | |||
| Response wave band | 8-14um | |||
| NETD | <50mk | |||
| Frame rate | 25Hz | |||
| Lens focal length | 3.2mm | |||
| Minimum imaging distance | 0.15m | |||
| Viewing angle | 56°x 42° | |||
| IFOV | 3.75mrad | |||
| Focus mode | Fixed focus | |||
| Temperature measurement | function | Center spot/Maximum temperature/ | Minimum temperature | |
| Temperature measurement | range | -20-120,120-550 | ||
| Temperature measurement | accuracy | 300-500:±4% | -15-300:±2or ±2% | -20-15:±4 |
| Temperature measurement | unit | Celsius and Fahrenheit | ||
| Emissivity setting | 0.01-1.0 adjustable | |||
| Language | Chinese, English, German, Italian | |||
| Operating temperature | -10--50 | |||
| Protection level | IP54 | |||
| Fall | 2M |
