HTi HT-18+ 256X192 Infrared Thermal Imager Camera Temperature Detector -20~550C
- Shining Points:
- -- 3.2'' full color screen, allows for detailed showing of infrared generated images;
- -- 220x160 resolution and 0.3 million pixel visible image resolution, high definition of images;
- -- 20~300°/-4°~572° temperature measurement range, 2.5° accuracy for better operation;

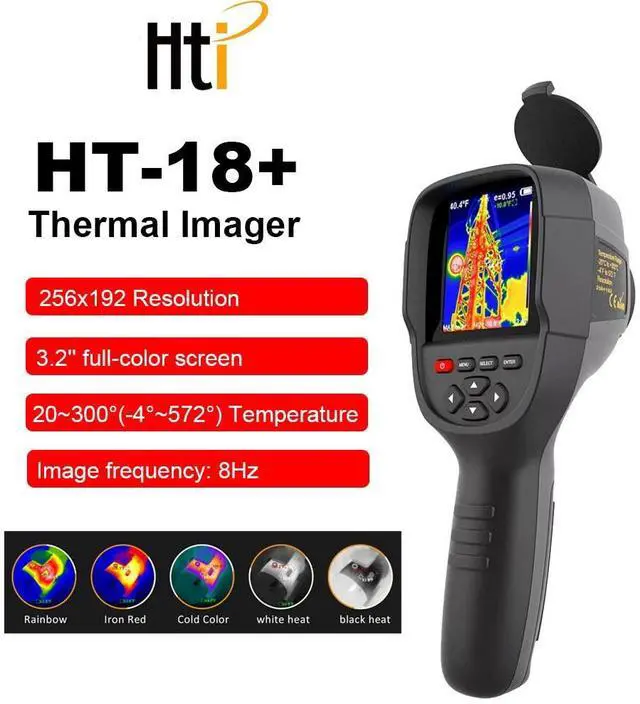

- -- 5 kinds of palette for choice: rainbow, iron red, cold color, black & white and white & black;
- -- Automatic setting: 5 mintues/20 minutes/ not power off automatically;
- -- Built-in 4GB SD card for storage, the pics can be also transferred to television, computer or other devices for checking;
- -- 2ide application at medical, fire-fighting, archaeology, traffic, farming, electronic manufacture and other fields;
- -- Seperate button for specific function, which is quite easy for you to turn it on or off, delete or check pictures;
- -- Mini and portable for 90×105×223mm size and 289g weight, attached pouch allows for more convenient carrying;
- -- Ergonomic handle, which can be used and held comfortably;
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Description
| Infrared detector type | Vanadium Oxide Uncooled Infrared Focal Plane |
| Infrared resolution | 256x192 |
| Infrared response band | 8 to14m |
| Cell size | 12m |
| NETD | 50mK 25, F/1.1 |
| Lens focal length | 3.2mm |
| IFOV | 3.75mrad |
| Field angle | 56°×42° |
| Focus mode | Free focus |
| Temperature measurement range | -20 to +550(-4 to 1022) |
| Measurement accuracy | -15 to 550 ±2or ±2%;-20 to -15 ±4 |
| Temperature measurement resolution | 0.1 |

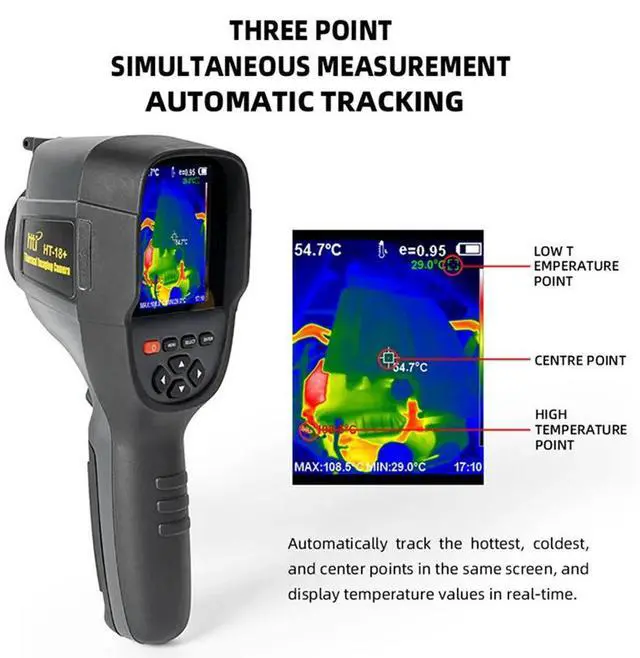

| Temperature measurement mode | Center point/hot and cold spot tracking |
| Color palette | Rainbow, iron oxide red, cold color, black & white, white & black |
| Emissivity setting | Adjustable from 0.01 to 1.00 |
| Thermal imaging frame rate | 25Hz |
| Visible light resolution | 640×480 |
| Display size | 3.2-inch(240×320) |
| Image display mode | Infrared/visible light/dual light fusion |
| Device storage | Built-in 4G eMMC (user available storage space is about 3G) |
| Storage Image/Video Format | JPG/MP4 |
| Image/video export method | USB connection to computer export |

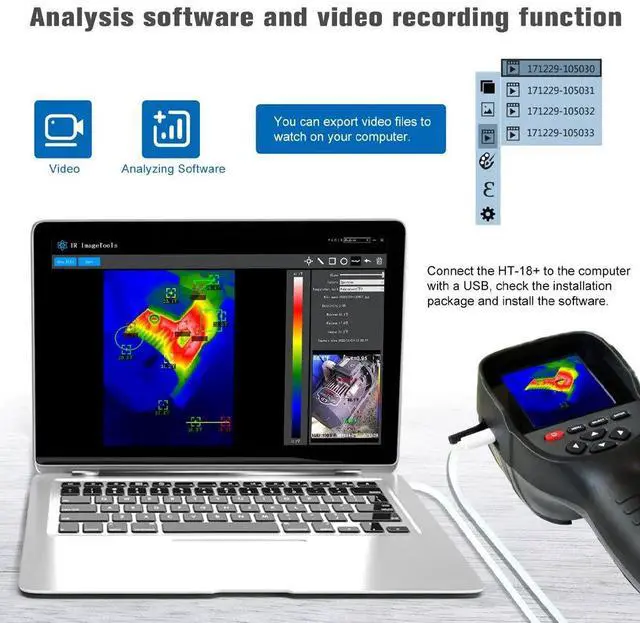

| Image analysis function | Support offline analysis on PC |
| Menu language | EnglishChineseItalianGerman |
| Battery Type | Dedicated removable rechargeable lithium battery |
| Battery capacity | 2200mAh |
| Working time | 2 to 3 hours |
| Power interface | Micro USB |
| Power configuration | 5 minutes / 20 minutes / no automatic shutdown |
| Work temperature | -10 to +50 |
| Storage temperature | -20 to +60 |
| Relative humidity | 10% to 85%RH (non-condensing) |
| Product weight | 389g |
| Product size | 90mm×105mm×223mm |
Specification:
Display screen: 3.2'' full-color screen
Infrared image resolution: 256×192
Visible image resolution: 0.3 million pixel
Thermal sensitivity: 0.07°
Temperature measurement range: -20~300°(-4°~572°)
Measurement precision: ±2.5° or ±2.5%
Wavelength coverage: 8-14um
Field angle/shortest focus length: 27°×35°/0.5m
Emissivity: Adjustable from 0.1 to 10.0
Focus mode: Fixed
Image capture frequency: 8Hz
View option: full infrared and full vision Visible image with 25% step length
Storage medium: built-in 4G
Image format: JPG
Power supply: built-in chargeable 18650 batteries
USB: Micro USB2.0
Automatic power-off time: 5 mintues/20 minutes/ not power off automatically
Size: 90×105×223mm
Weight: 289g
Work temperature: 0° to 50°
Storage temperature: -40° to 80°
Humidity: <85RH

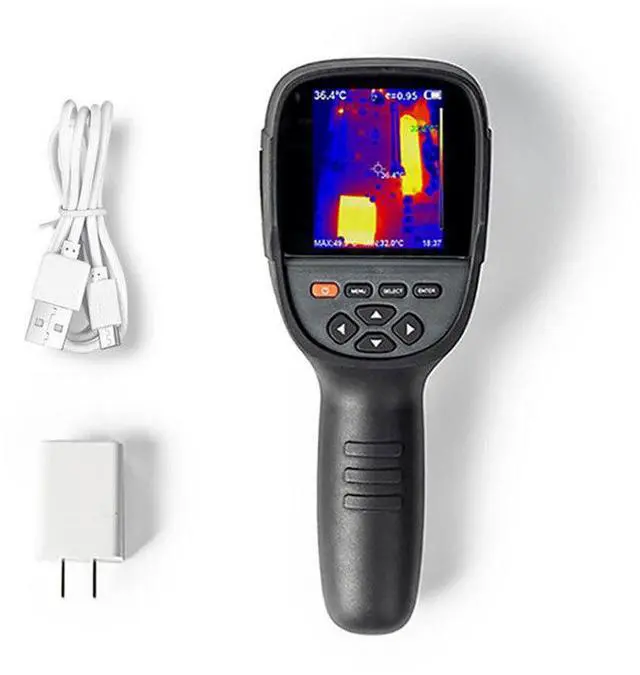

Package Includes:
1 x infrared temperature detector
1 x cable
1 x user manual
1 x carry pouch
1 x carry pouch strap
1 x cardboard package box
