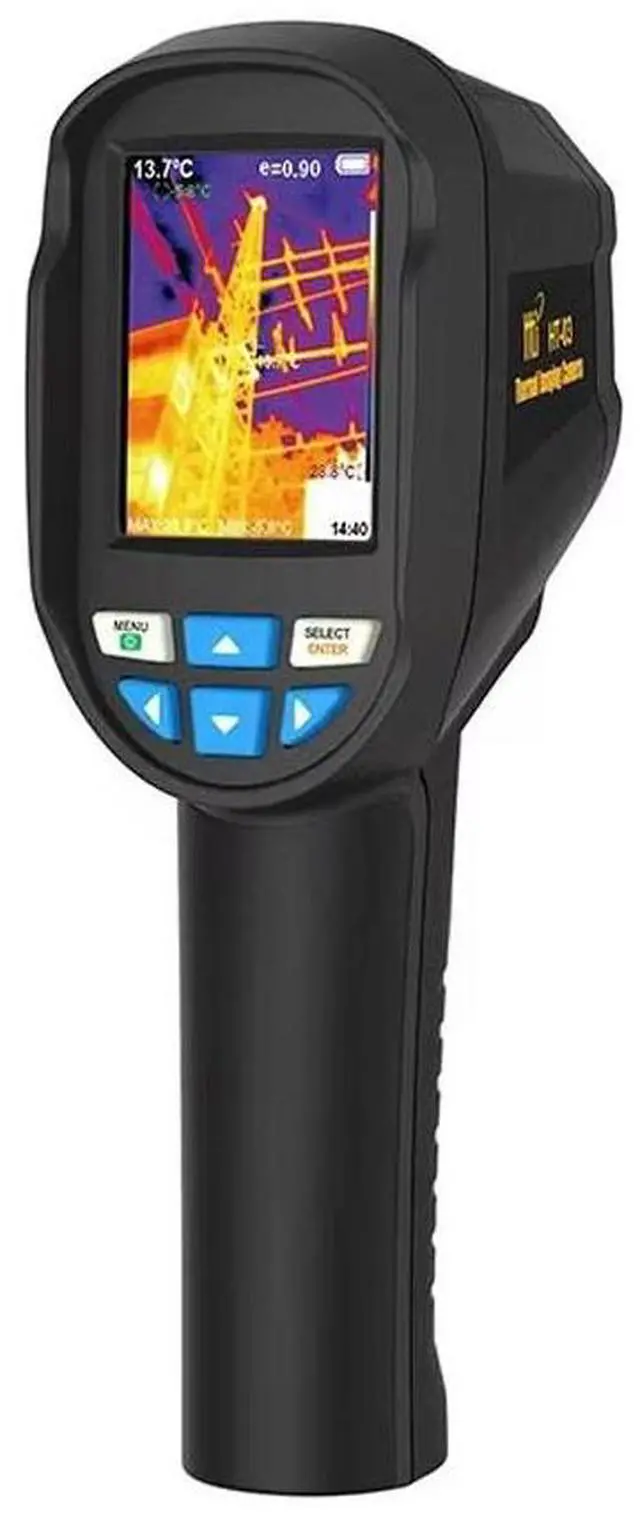

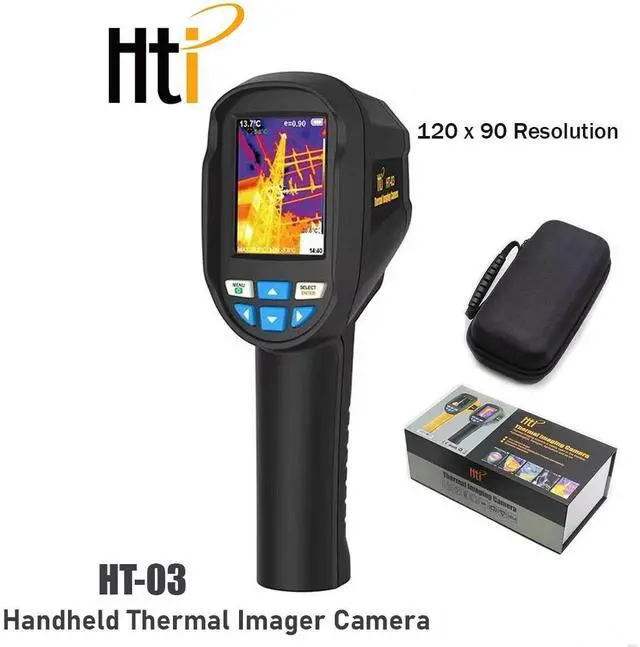

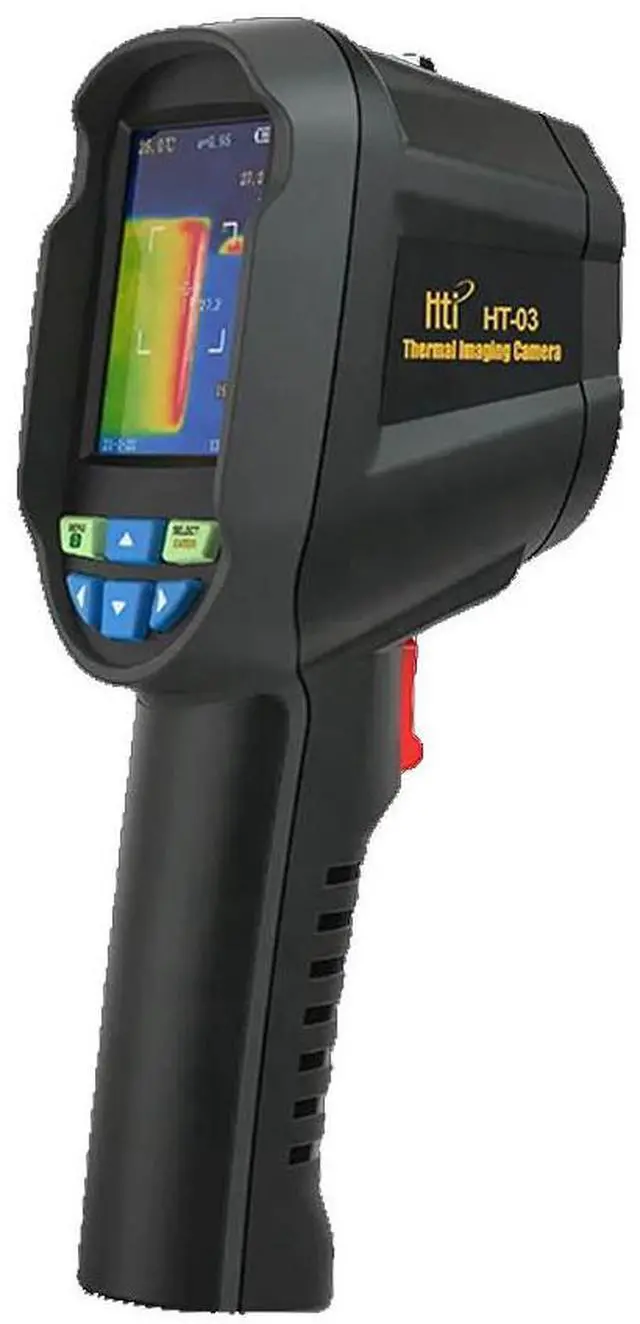

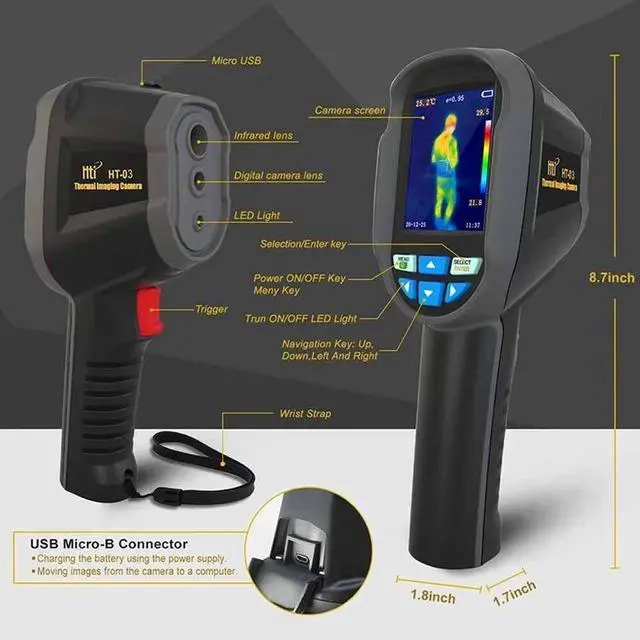

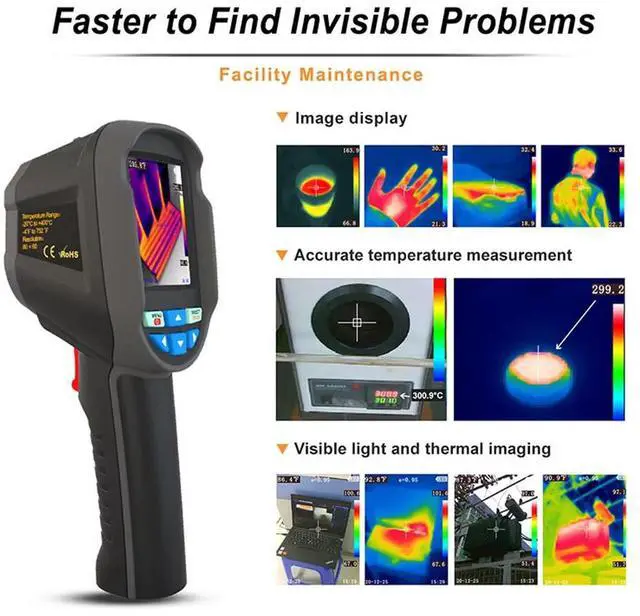

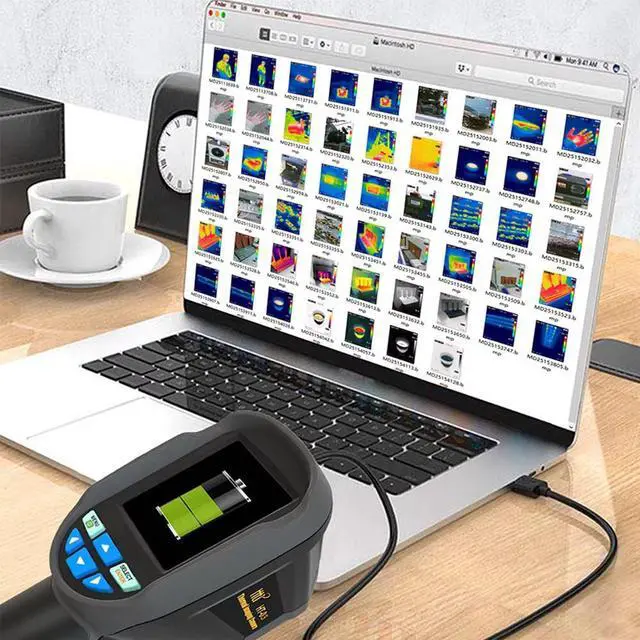

HTi HT-03 Thermal Imaging Camera 120x90 IR Resolution Infrared Temperature Meter
- Features
- Infrared Thermal CameraHigh Resolution Imaging:Capture intricate details with 120x90 infrared thermal imaging, ideal for PCB and industrial testing.
- Adjustable Emissivity:Customize temperature readings with 0.01~1.00 adjustable emissivity for accurate measurements.
- Extended Battery Life:Enjoy up to 2-3 hours of thermal imaging with a built-in 2000mAh rechargeable lithium battery.
- Versatile Temperature Range:Measure from -20 to 550 with a ±2/±2% accuracy, perfect for diverse thermal inspections.
- Compact and Portable Design:Lightweight at 375g and with a convenient 2.8 inch TFT display, the HTI HT-03 is easy to handle.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product sellpoints
- Infrared Thermal CameraHigh Resolution Imaging:Capture intricate details with 120x90 infrared thermal imaging, ideal for PCB and industrial testing.
- Adjustable Emissivity:Customize temperature readings with 0.01~1.00 adjustable emissivity for accurate measurements.
- Extended Battery Life:Enjoy up to 2-3 hours of thermal imaging with a built-in 2000mAh rechargeable lithium battery.
- Versatile Temperature Range:Measure from -20 to 550 with a ±2/±2% accuracy, perfect for diverse thermal inspections.
- Compact and Portable Design:Lightweight at 375g and with a convenient 2.8 inch TFT display, the HTI HT-03 is easy to handle.
| Display Screen | 2.8 inch TFT display screen |
| Infrared Thermal Image Resolution | 120×90 |
| Visible LightImage Resolution | 640×480 |
| LCD Resolution | 320×240 |
| Field Of View Angle/Focal Length | 26°× 19°/3.2mm |
| IFOV (spatial resolution) | 3.75mrad |
| Pixel Spacing | 12um |
| Image Frame Rate | 25Hz |
| Focus Mode | Fixed |
| Noise Equivalent Temperature Difference | 50mK @ 25,F#1.0 |
| Wavelength Range | 8m ~ 14m |
| Emissivity | 0.01~1.00 adjustable |
| Palette | Rainbow/Iron Red/Cool/White Heat/Black Heat |
| Temperature Measurement range | -20 ~ 550(-4°F ~ 1022°F) |
| Temperature Measurement accuracy | -15~550(±2/ ±2%);-20~15(±4) |
| Set Control | Localization unit adjustment/Language/Date time format/Automatic shutdown |
| Storage Media | Built in storage 4G (actual usable 3G) |
| Language | Chinese, English, German, Italian |
| Image Format | JPG/MP4 |
| Interface Type | Micro USB 2.0 |
| Battery Type | Built in 18650 rechargeable lithium battery |
| Working Temperature | 0 ~ 45 |
| Storage Temperature | -20 ~ 60 |
| Relative Humidity | 10% RH ~ 80% RH |
| Battery Capacity | 2000mAh |
| Working Hours | 2-3 hours |
| Product Size | 96×72×226mm |
| Product Weight | 375g |

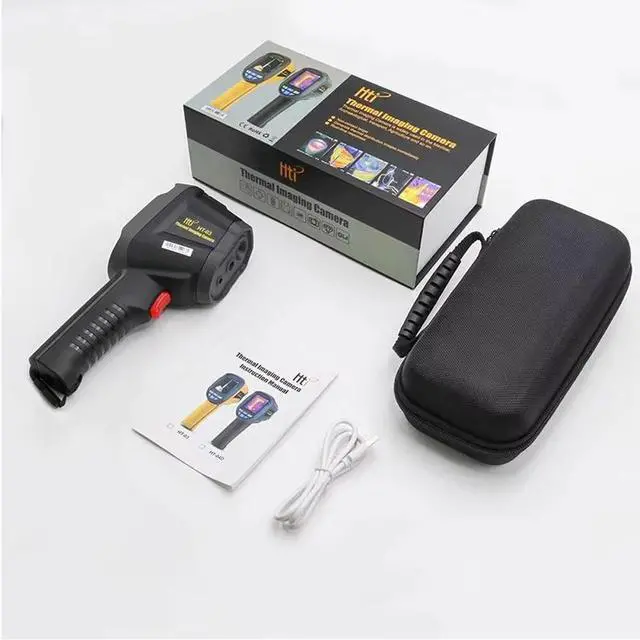

Packaging include:
1 x Thermal imager
1 x gift case
1 x user maual
