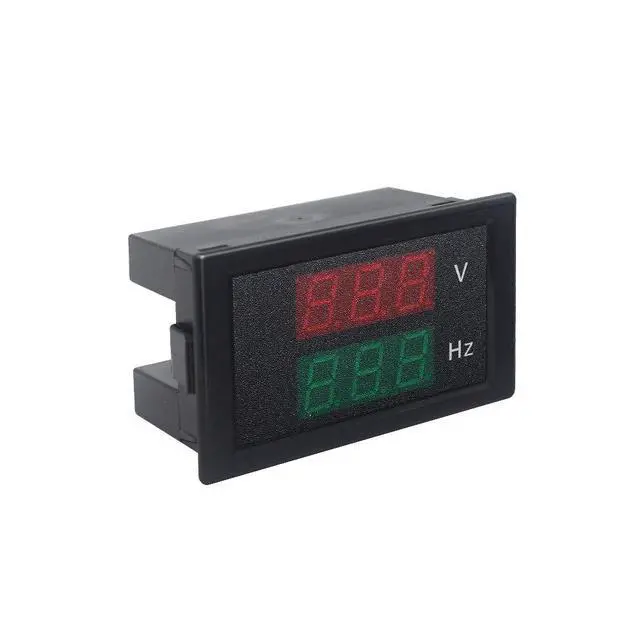

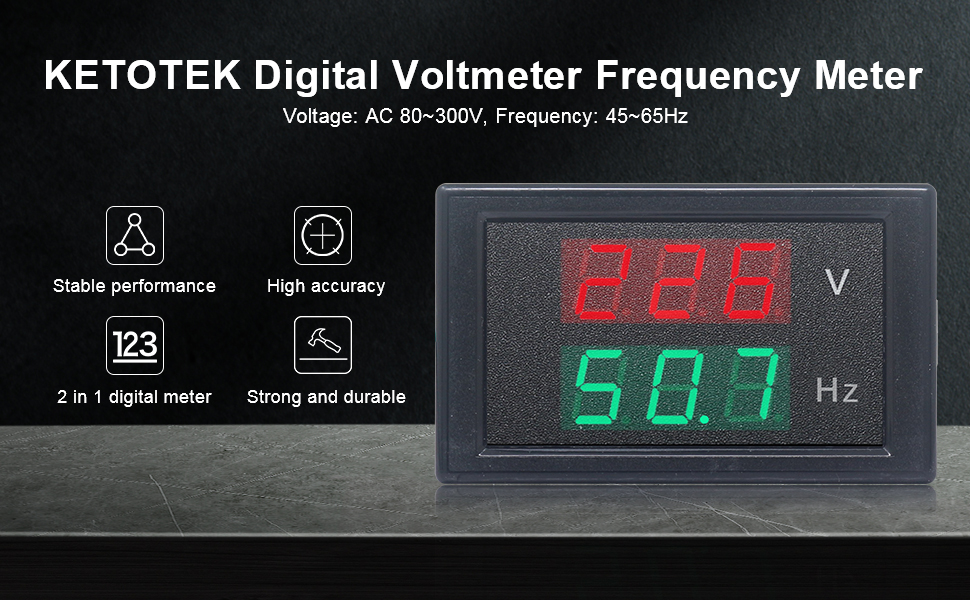

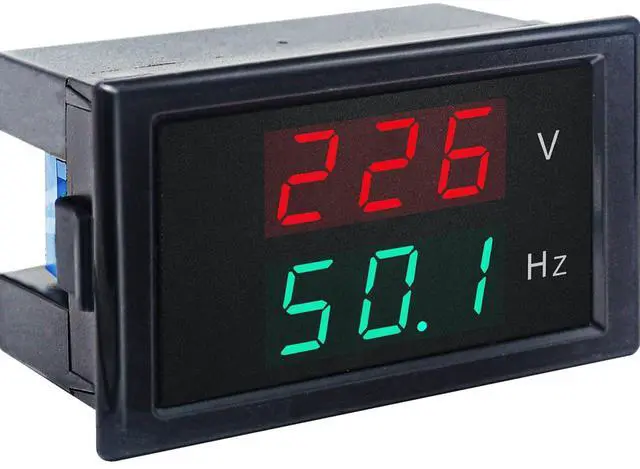

KETOTEK Digital AC Voltmeter Panel Mounting Meter AC80-300V Frequency Counter 45.0-65.0 HZ LED Display Voltage Volt Frequency Meter Tester Gauge

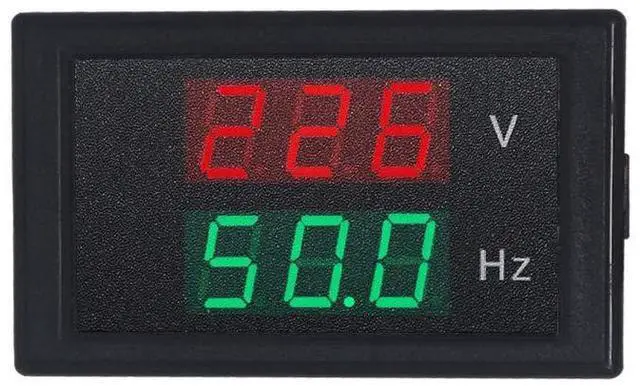

2 in 1 MultimeterVoltage and frequency can be displayed with different color on the LED screen, red for voltage, green for frequency. It is clear and convenient to read.
Wide measuring rangeVoltage: AC 80~300V, Hertz: 45-65Hz, Accuracy: 1% ± 2 digits, with high working efficiency of 2 times/s measuring speed.
No extra individual power supplyIt can directly connect two wires to the tested voltage to measure voltage and frequency without power supply.

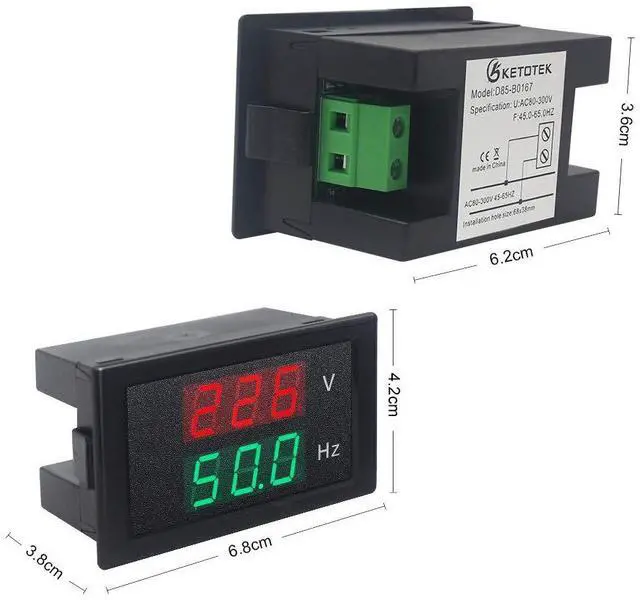

Ultra small size2.68×1.65×1.5inch / 68x42x38mm. This Voltage Frequency Meter can be installed on anywhere flexibly.
More informationOperating temperature: 10°F~122°F/-10 ~ 50. Note: The AC current meter only suits for pure AC 50-60HZ power supply and can NOT be used for square wave, inverter output and sine wave circuit measurement of modified sine wave, otherwise the meter will be damaged.

Technical Indicators:

Measurement accuracy: 1% ± 2 words
Measuring range: AC voltage: AC80.0~300V, frequency: 45.0~65.0Hz

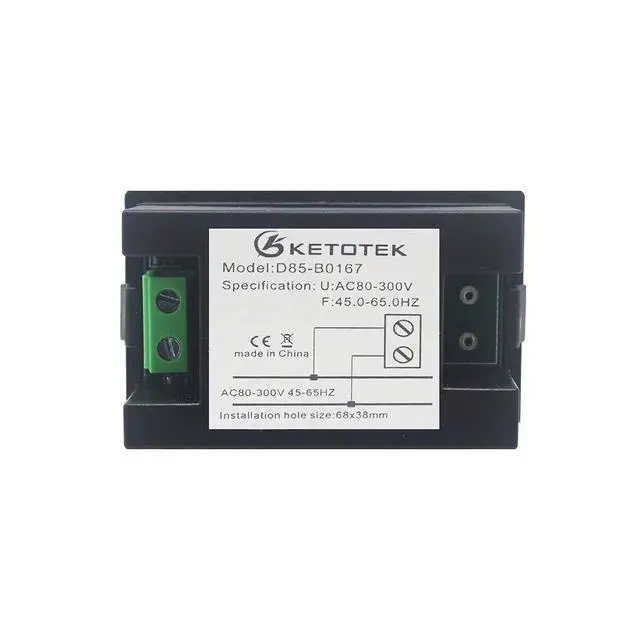

No power supply required: The voltage and frequency measurement can be completed by directly connecting the two wires to the measured voltage (AC regardless of polarity)
Measuring speed: 2 times per second
Dimensions: 68 × 42 × 38mm
Installation size: 68 × 38mm

High Quality Chip

Using high-quality chips, precise design ensures the stability and accuracy of this AC voltmeter. Small size, embedded installation, more convenient to use.

This voltage frequency meter is suitable for chemical industry, power plants, automation equipment, DOS systems, electromechanical equipment and other places.

Frequency meter

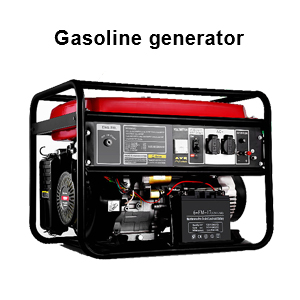

Gasoline Generator

Frequency meter

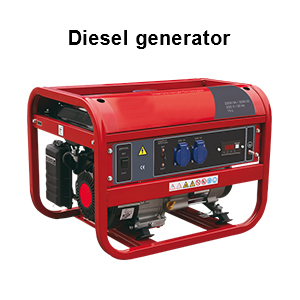

Diesel Generator

Frequency meter

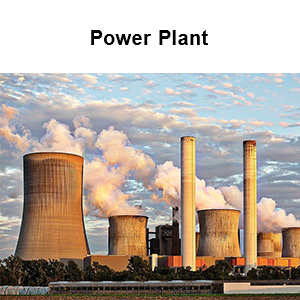

Power Plant

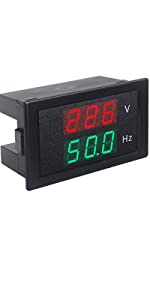

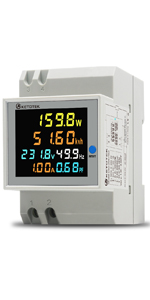

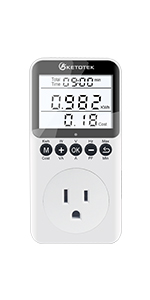

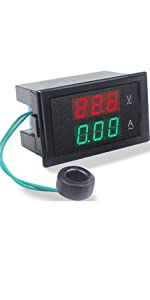

	Frequency Voltmeter	Voltmeter Ammeter	Energy Meter Din Rail	Power Meter Plug	Power Meter Plug

Customer Reviews	—	—	—	—	—
Price	—	—	—	—	—
AC voltage range	AC 80.0-300.0V	AC 80.0-300.0V	AC 40.0-300.0V	AC 100-250V	AC 100-250V
AC current range	- no data	AC 0-100A	AC 0-100A	AC 15A	AC 15A
Frequency	45-65Hz	- no data	45-65Hz	50/60Hz	50/60Hz
Power	- no data	- no data	0-30000W	3680W Adjustable	3680W Adjustable
Energy	- no data	- no data	0-99999KWh	0-9999KWh	0-9999KWh
Power factor	- no data	- no data	1.00-0.00PF	1.00-0.00PF	1.00-0.00PF
Cumulative time	- no data	- no data	- no data	0second-9999days	0second-9999days
Electricity cost	- no data	- no data	- no data	0.00-9999 COST	0.00-9999 COST
