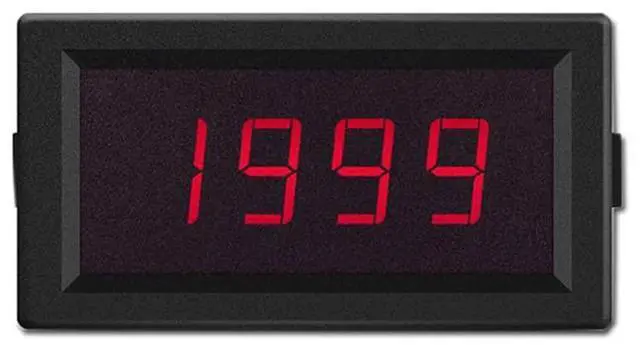

Taidacent Ohm Meter Resistance Tester Ohmmeter Digital DC Resistance Measuring Instrument Fixture Resistance Measure Panel Meter (200 Ohm, DC12V with Cover)
- Power supply: DC5V/DC12V optional (current consumption is less than 50mA)

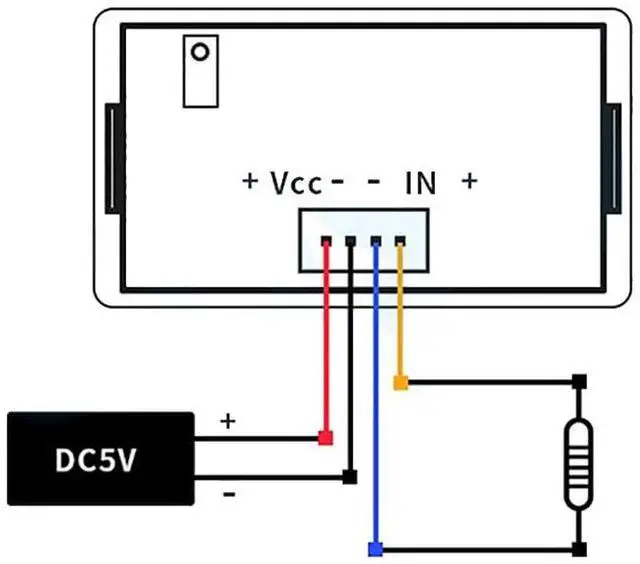

- This ohmmeter is a common ground instrument, non-isolated, it is recommended to use a separate power supply, that is, the power supply is not related to the signal
- The resistance meter cannot be measured with electricity, otherwise the meter will be burnt out
- Select a suitable range, if the range is selected too much, the small resistance cannot be recognized or the measurement is inaccurate

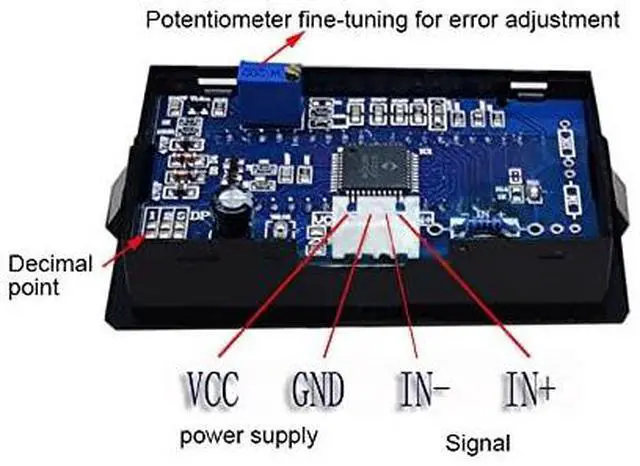

- The meter head is a common ground instrument (that is, the negative pole of the power supply and the negative pole of the signal are connected), it is recommended to use a separate, independent, and isolated power supply (that is, the power supply and the measurement terminal are not related)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Parameter
Power supply: DC5V/DC12V optional (current consumption is less than 50mA)
Display range: -1999 ~ 1999
Font size: 0.56 inches red LED
Measurement accuracy: 0.5 level ± 2 words
Temperature drift coefficient: less than 100PPM/C
Working environment: 0-50%; 80%RH
Dimensions: 79x43x28mm
Hole size: 76x39.5mm (±0.5~1mm)

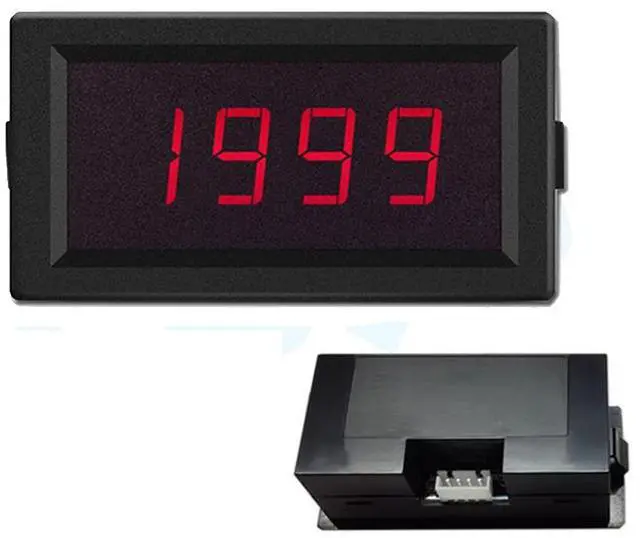

Package type: flat right-angle frame, purple frosted window
Resistance
Range: 200
Display range: 0- 199.9
Resolution: 100m
Input impedance: 200
Range: 2K
Display range: 0- 1.999
Resolution: 1
Input impedance: 2K
Range: 20K
Display range: 0- 19.99
Resolution: 10
Input impedance: 20K
Range: 200K
Display range: 0- 199.9
Resolution: 100
Input impedance: 200K
Above 200, within 2K, please select 2K range, resolution is 1
Above 2K, within 20K, please select 20K range, resolution is 10
Above 20K, within 200K, please select 200K range, resolution is 100
