HaoDuoQian Dual Display Volt Amp Meter2Pcs DC 4.5-100V Digital Voltmeter Ammeter Multimeter Panel LED Digital Current Meter 0-50A LED Display Voltage Gauge Measurement Meters with Shunt
- AMeasuring voltage DC 4.5V-100V; current 0-50A.Lead length: 142mm
- BSuitable for monitoring storage battery, solar panel, model railroad, RV, motorcycle, house batteries, motor, etc.
- C0.28'' crisp and bright LED screen displays voltage & current value.

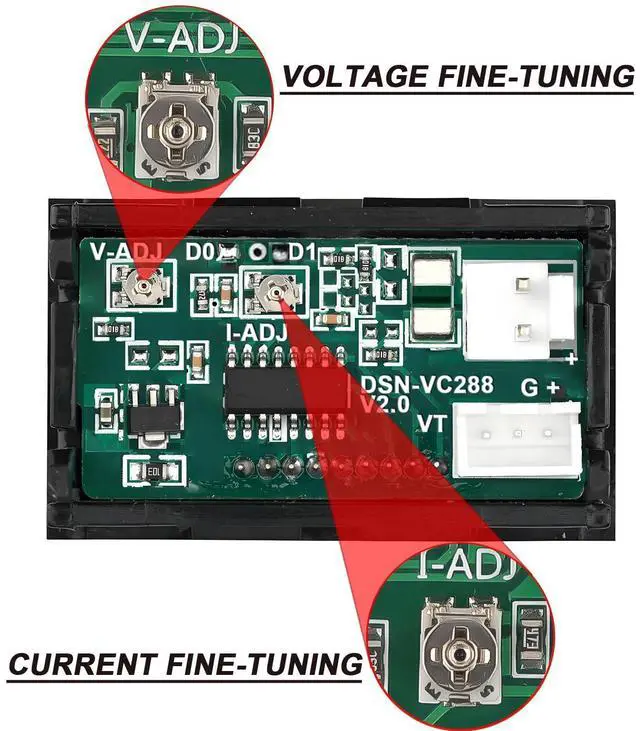

- DWith voltage & current calibration potentiometer.Working temperature: -10 -65
- EConnect the splitter before connecting the power supply, otherwise it may burn out the instrument.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Parameters:
Voltage Measuring Range: DC 4.5-100V
Voltage Resolution: 0.01V under 10V; 0.1V between 10V and 100V
Current Measuring Range: 0.0-50.0A
Current Resolution: 0.1A

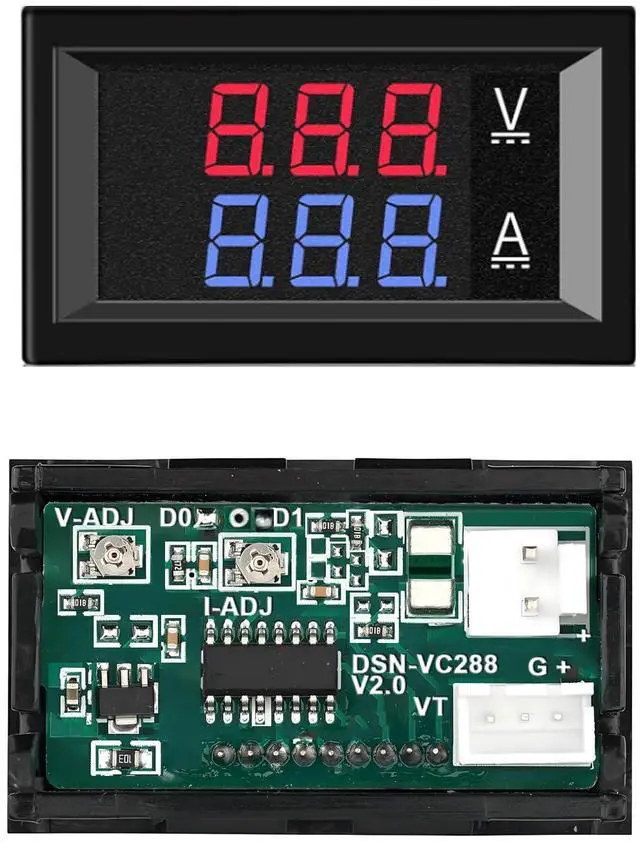

Display: 0.28" LED dual display
Measuring Rate: 500mS/time
Measurement Accuracy: 1% (±1 digit)
Shunt: 50A/75mV

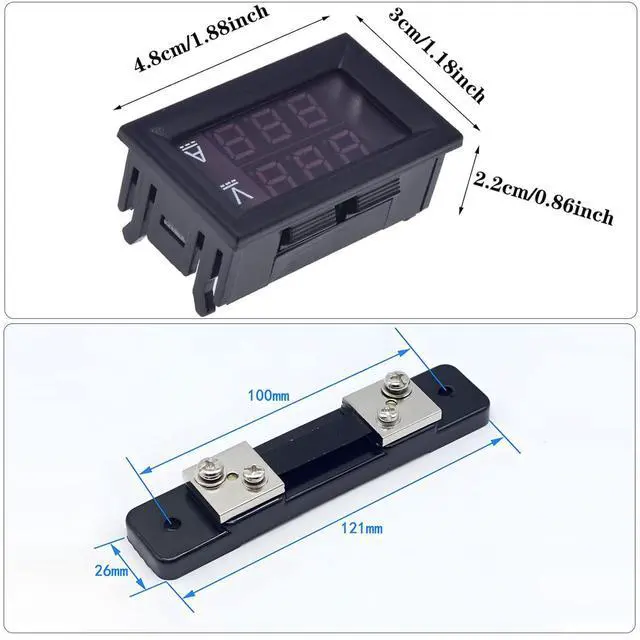

Meter Opening Size: 68*38mm/2.67*1.49 inch
Meter Dimension: 70*40*30mm/2.75*1.57*1.18 inch
Shunt Size: 120*25mm/4.72*0.98 inch
Working Condition:
Working Temperature: -10+65
Working Humidity: 1080% ( No Condensation)
Working Air Pressure: 80106kPa
Sunlight: No direct exposure
Note:

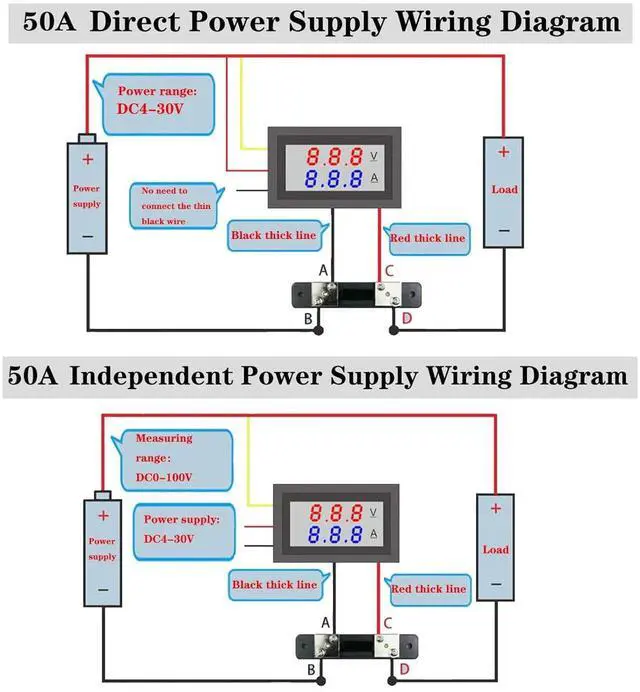

If the current cannot display properly, please check whether the wires are connected correctly.
If you are not sure of the wiring method, please feel free to contact us.

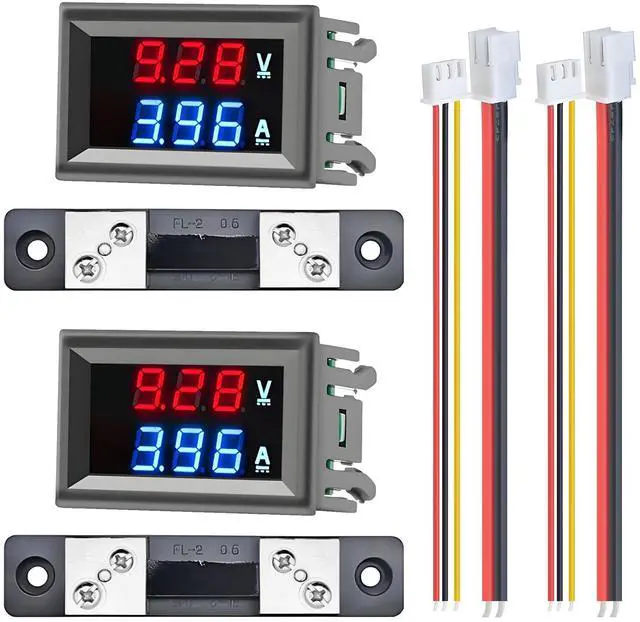

Package Included:
2x Voltage Current Display
2x 50A/75mV Shunt
