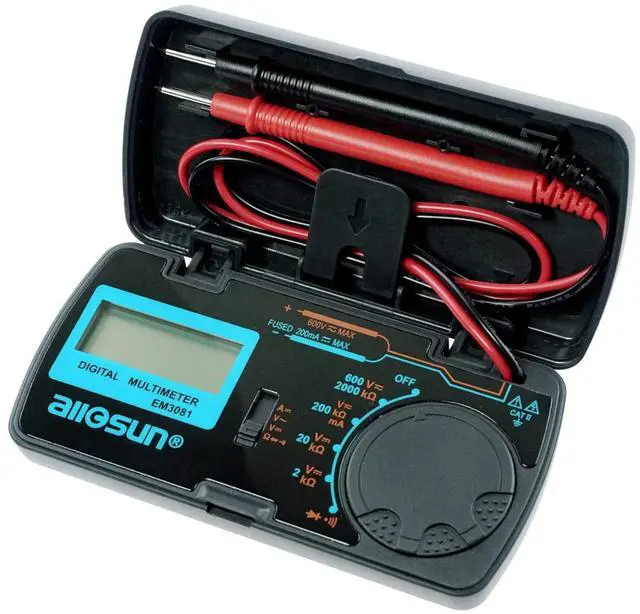

Manual Range Mini Digital Multimeter 6 Functions Handheld Folding Voltmeter 3-1 2 Digit Pocket DMM DC/AC DC Ammeter Ohm Continuity Diode Tone Tester EM3081
- Easy To Use & Carry: The multimeter seems to work great and it is a perfect size to keep in your glove box/travel tool box or where ever you may need it.

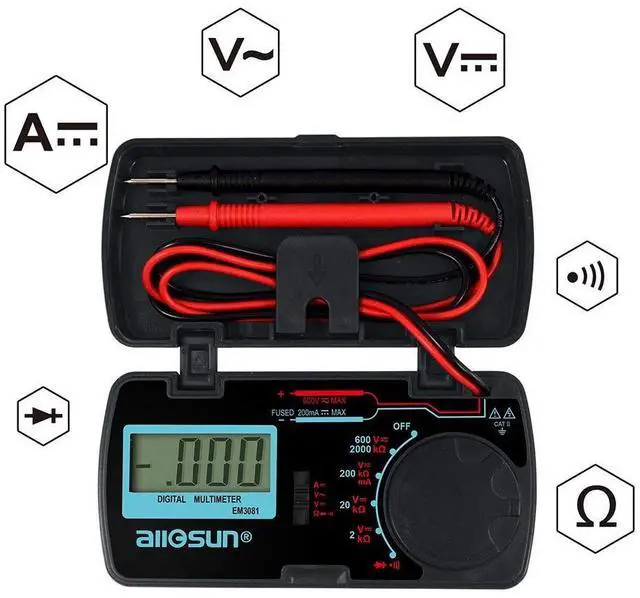

- Multi-Functionals: Mini digital dc voltmeter is great little DMM, it has all the needed functions.DC Volts, AC Volts, Ohms, Amps and continuity testing with tone.
- Manual & Remove Tape: The small multi meter is no auto off and not auto-ranging, before operating the first time, you need to remove the tape insulating the battery.
- Quick Measurements: Mini digital voltmeter can check various rechargeable batteries, compact unit good for keeping in your tool kit or vehicle for quick measurements.
- Testing Electrical Troubleshoot: Pocket multimeter can handles all the electrical testing troubleshoot and resolve electrical problems, test batteries, check for continuity. It's not made for commercial use or handling large loads and heavy use.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Introduction
The meter is a compact 3 1/2-digit digital multimeter for measuring DC/AC voltage,DC current,resistance,diode and continuity.
It features polarity indication,low battery indication,small size,lightness,and uses box-type design.It is easy to carry and is an ideal tool.
NOTICE

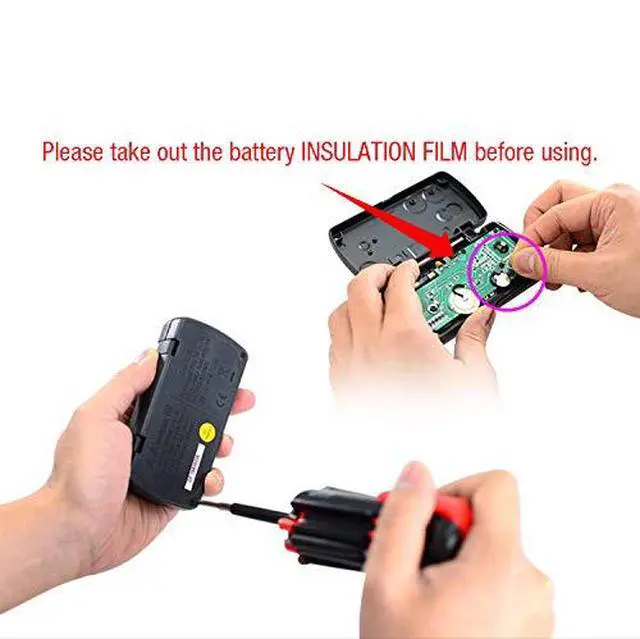

You need to using the screwdriver, remove 4 screws from the back, to open the cover back of the multimeter, then take the insulation strip before using it.
Feature
1)Display:3 1/2-digit LCD with a max,reading of 1999
2)Overrange indication:Only figure"1" shown on the display
3)Negative Polarity Indication: Negative sign"-"shown on the display automatically
4)Sampling Rate:About 2 to 3 times/sec
5)Battery:1.5V button cell,LR44 or equivalent,2 pieces
6)IP Degree:IP20
7)Operation Environment: Temperature:0-40 degree, Relative humilty:<75%
8)Storage Temperature: Temperature: -10-50 degree,Relative humilty:<85%

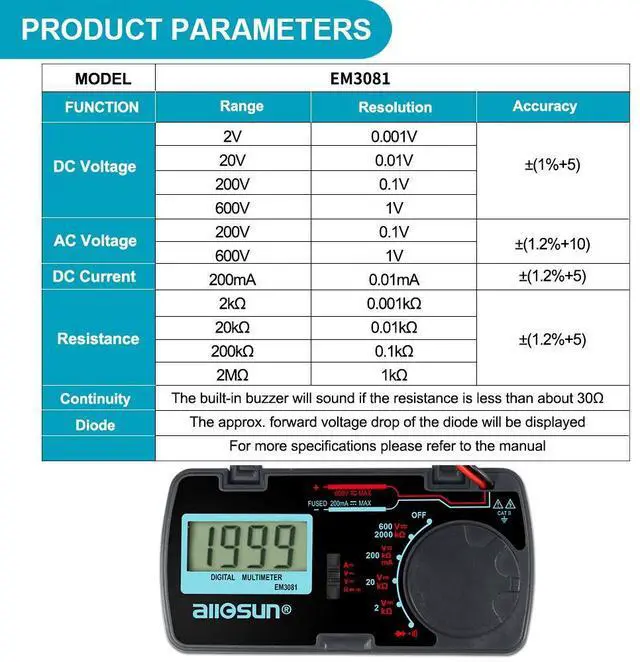

Specifications
DC Voltage:
Range Resolution Accuracy
2V 0.001V ±(1.0%+5)
20V 0.01V ±(1.0%+5)
200V 0.1V ±(1.0%+5)
250V 1V ±(1.0%+5)
Input Impedance:1M
Max.Allowable Input Voltage:250V dc
AC Voltage:
Range Resolution Accuracy
200V 0.1V ±(1.2%+10)
250V 1V ±(1.2%+10)
Input Impendace:About 500K
Frequency Range:40Hz to 400Hz
Max.Allowable Input Voltage:250V ac rms
Responable:Average.calibrated in rms of sine wave
DC Current:
Range Resolution Accuracy
200mA 0.1mA ±(1.2%+5)
Resistance:
Range Resolution Accuracy
2k 0.001k ±(1.2%+5)
20k 0.01k ±(1.2%+5)
200k 0.1k ±(1.2%+5)
2000k 1k ±(1.2%+5)
Diode and Continuity:YES
