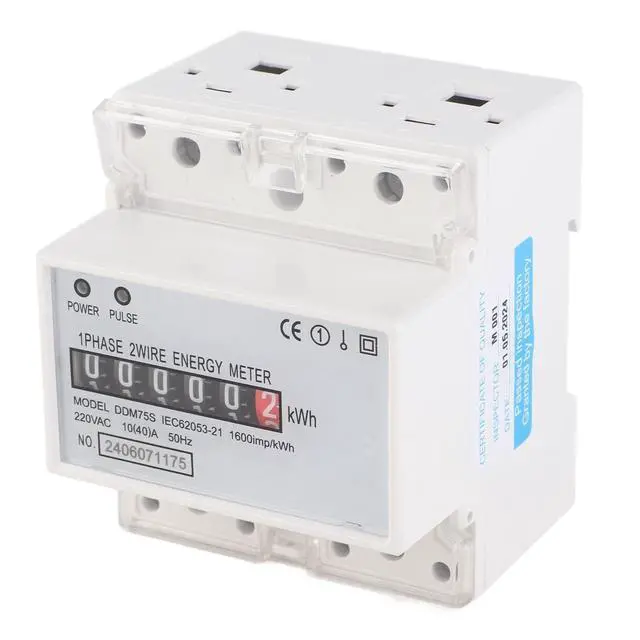

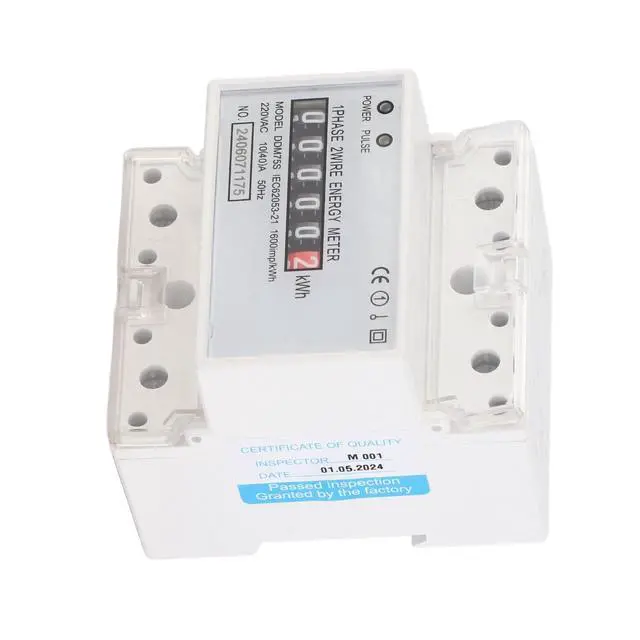

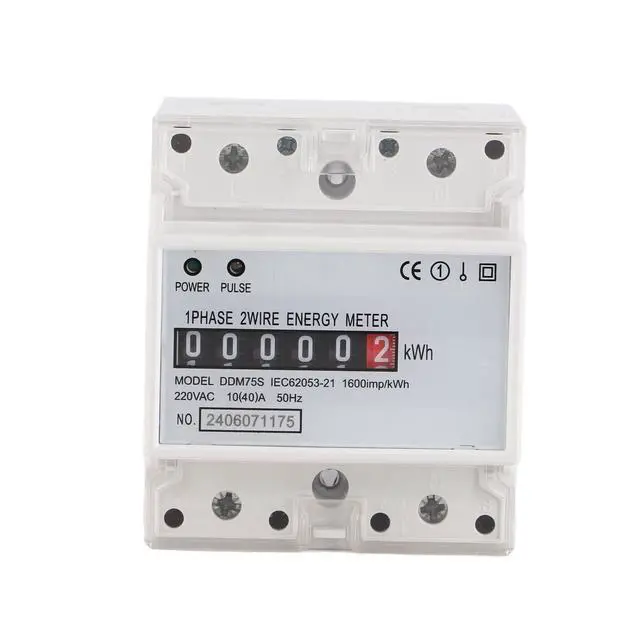

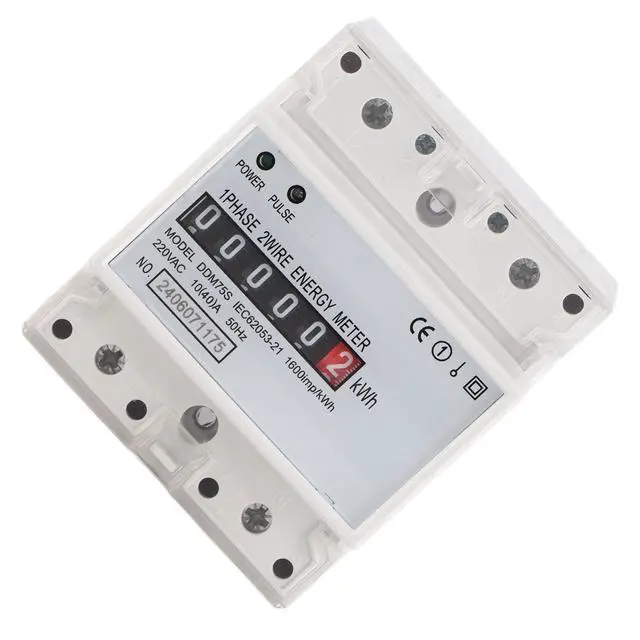

Kilowatt Usage Meter, 220V/230V 50/60Hz Single Phase KWh Meter, 4P DIN Rail Electric Energy Meter with Double Color LED, 10-40A Electricity Power Consumption Wattmeter
- Specification: 4P single phase kwh meter supports 220V/230V wide voltage input and 50/60Hz frequency, with a current of 10 (40) A. Electric usage meter adopts 35mm standard DIN rail installation (not included), which complies with DIN EN50022 standard
- Easy to Observe: Energy meter uses a 5+1 digital display (99999.1KWh), which can visually observe energy consumption. The dual color LED of electric energy meter displays the power status (green) and energy pulse signal (red) for instant observation
- Wiring Connections: Electricity usage meter supports single-phase system with functional consumption measurement, which is in compliance with IEC 62053-21. There are S type wiring and U type wiring connections for electricity power consumption wattmeter
- 6-Width Options: The kilowatt usage meter offers 6pcs width options (modulus 12.5 millimeters) to accommodate different space requirements. DIN rail voltage meter complies with DIN43880 standard, which can enhance the flexibility of device deployment
- Output Mode: The pulse output of digital electricity meter is passive (polar), and remote pulse output can be selected as passive (non-polar). Electric submeter can easily touch various AMR systems, complying with IEC standards 62053-31 and DIN43864.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
Small size, light weight and easy installation.
35mm standard DIN-rail mounting in accordance with standard DIN EN50022.
Six widths (12.5mm modulus) in accordance with DIN43880.
Standard configuration 5+1(99999.1KWh) digital display.
The standard configuration pulse output is passive (polar) and the remote pulse output can be selected as passive (non-polar). It is easy to touch with various AMR systems and conforms to the standards IEC 62053-31 and DIN43864.
Double color LED indicates the power status (green) and the energy pulse signal (red).
One-way measurement of single-phase two - wire active energy consumption . This has nothing to do with the direction of the load current. Comply with IEC 62053-21.

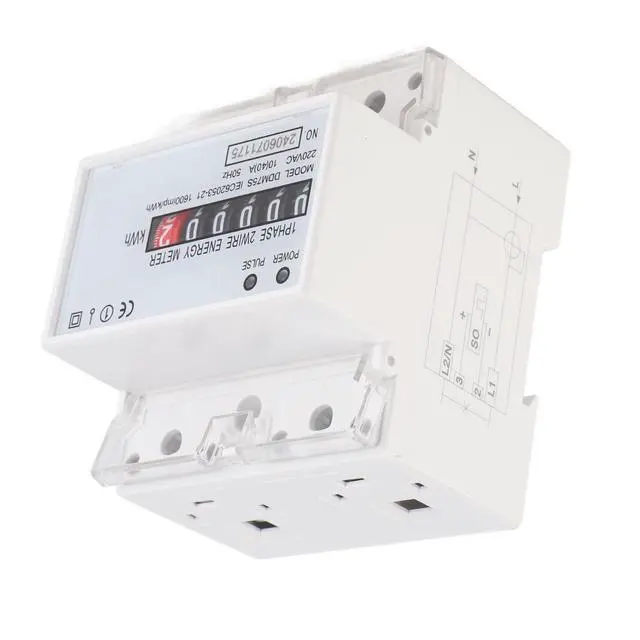

Direct connection, two wiring methods. Standard configuration S type wiring, U type wiring can be selected.
Extend the terminal cover to protect the use of the energy meter.
Specification:
Item Type: Din Rail Energy Meter
Model: DDM75S
Voltage Specification: 220V/230V 50/60Hz
Frequency: 50/60Hz
Current Specifications: 10(40)A
Insulation performance: AC voltage 4KV, 1 minute, 1.2/50us waveform impulse voltage 6KV
Display mode: (5+1) digital display
Installation method: rail installation
Weight: 246 g / 8.7 oz(approx.)
Package List:
1 * Energy Meter
