USB 3.0 Multimeter Tester (3.7-32V / 0-5.1A), Digital USB Voltmeter Ammeter with IPS Color Display, Power & Battery Capacity Detector

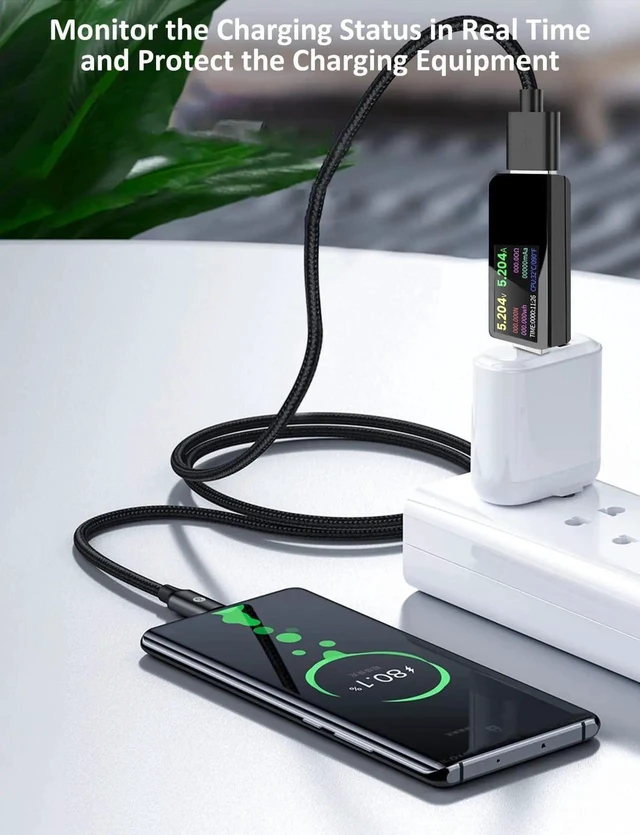

- REAL-TIME USB POWER ANALYSIS Monitor voltage, current, power, capacity, energy, equivalent impedance, and temperature to evaluate chargers, cables, power banks, and USB-powered devices.
- 3.7-32V / 0-5.1A TESTING RANGE Measure USB charging performance with 0.01V voltage resolution, 0.001A current resolution, up to 120W power measurement, and a 0.5Hz refresh rate.
- FAST-CHARGE PROTOCOL DETECTION Identify QC 2.0/3.0, Apple 2.4A/2.1A/1A/0.5A, Android DCP/AFC, FCP, and SCP charging modes for a clearer view of device and charger negotiation.

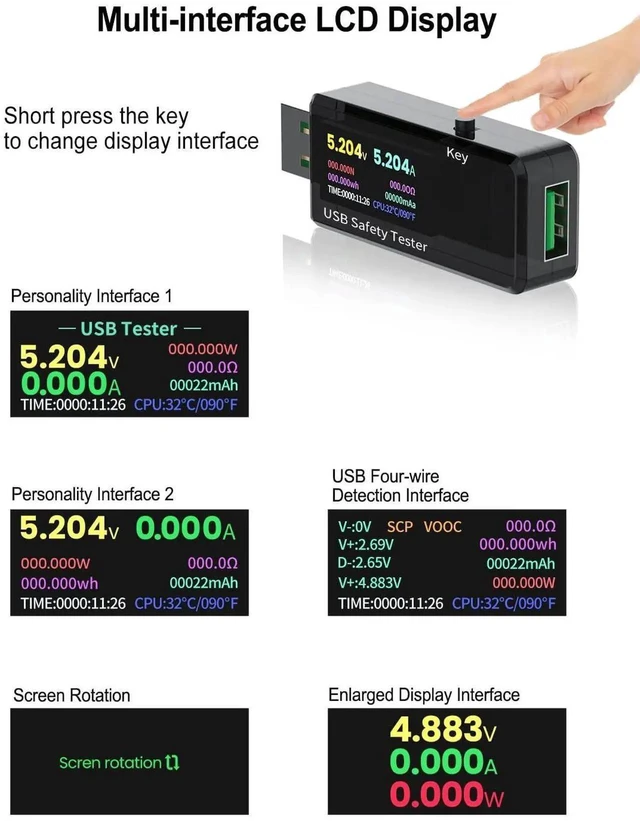

- 0.96-INCH IPS COLOR DISPLAY Switch among 6 display modes and view measurements from a 160-degree angle; the bright color screen organizes multiple charging indicators for quick inspection.
- POWER-OFF DATA STORAGE Retains accumulated capacity and energy information after power is removed, making it easier to continue power-bank capacity testing and review previous measurements.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

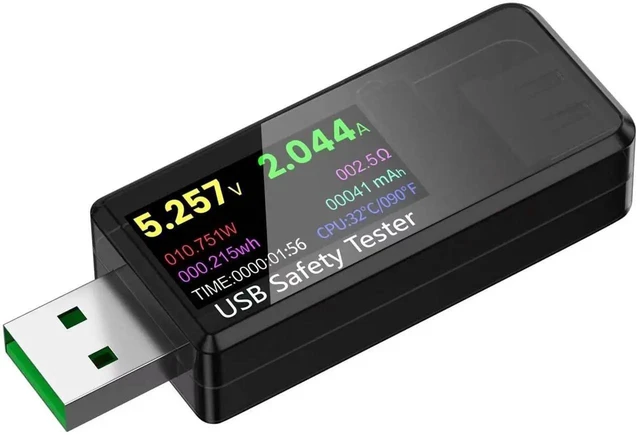

USB 3.0 Power Testing with a Color IPS Display

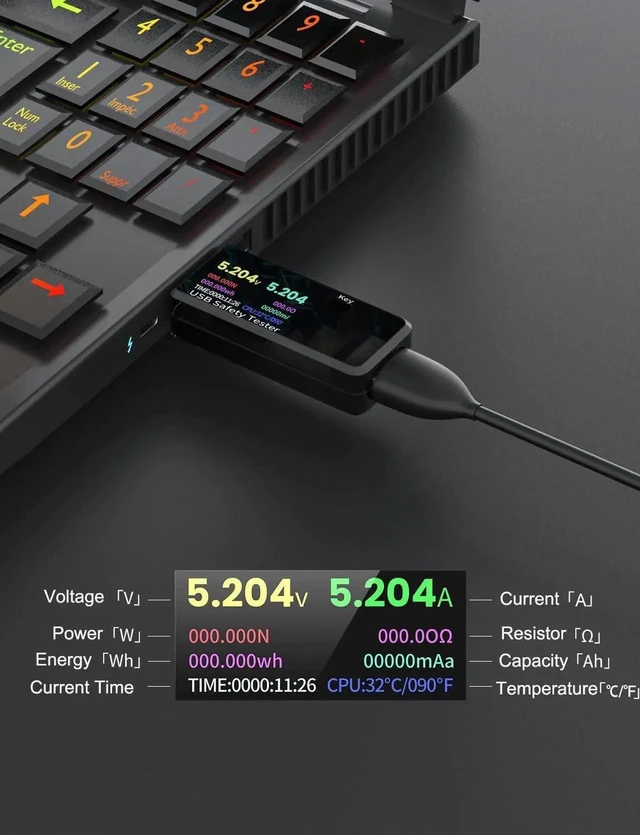

The USB 3.0 Multimeter Tester is a compact digital USB voltmeter and ammeter designed to inspect chargers, cables, power banks, mobile devices, USB flash drives, and compatible USB 3.0 peripherals. Its 0.96-inch IPS color display presents voltage, current, power, capacity, energy, equivalent impedance, and temperature.
Measure and Diagnose Charging Performance
Measure voltage from 3.7V to 32V and current from 0A to 5.1A, with power measurement up to 120W. The meter provides 0.01V voltage resolution, 0.001A current resolution, and a 0.5Hz refresh rate. Six selectable display modes and a 160-degree viewing angle support quick inspection.

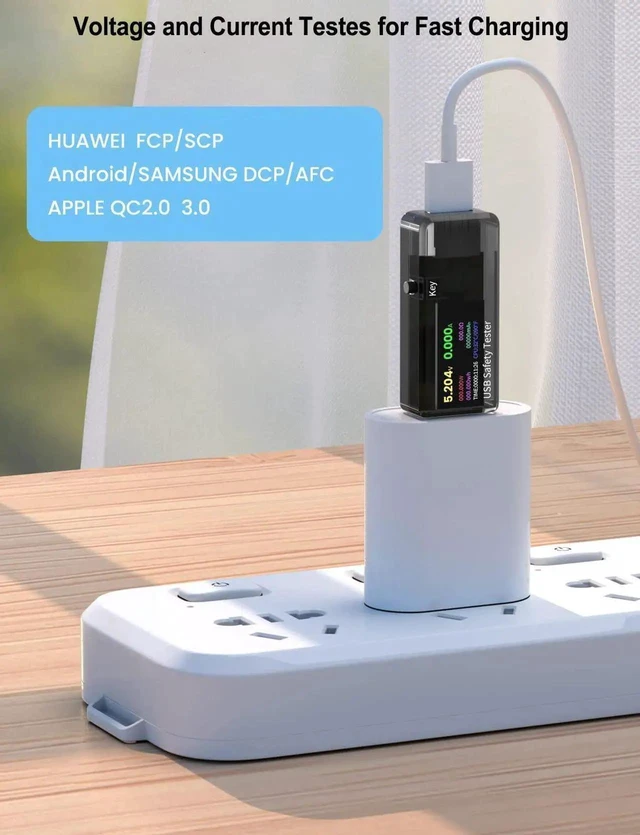

Fast-charge protocol detection identifies QC 2.0, QC 3.0, Apple 2.4A/2.1A/1A/0.5A, Android DCP/AFC, FCP, and SCP charging modes. Comparing voltage under no-load and load conditions can also help evaluate charger and cable performance.

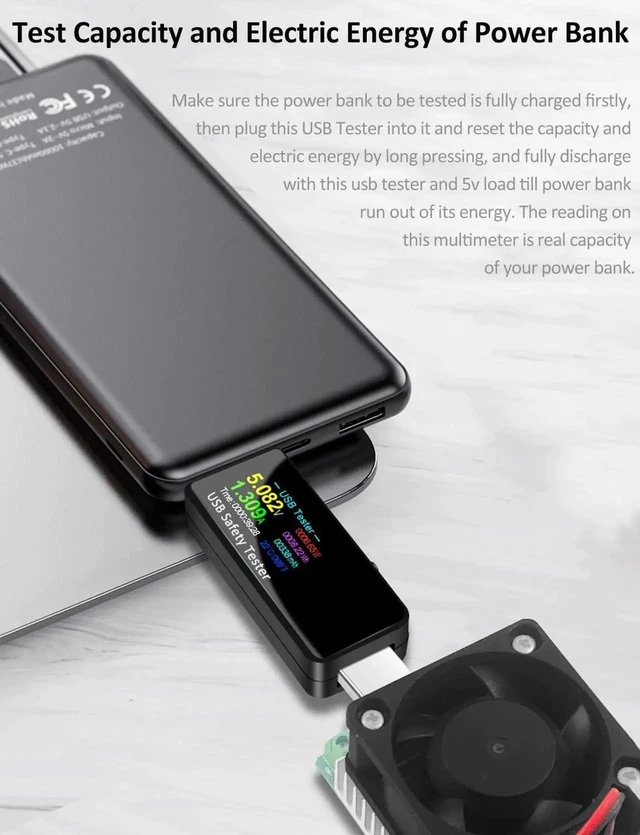

Power-Off Data Storage
Accumulated capacity and energy readings remain available after power is disconnected, making the tester useful for reviewing measurements and checking power-bank capacity.
Specifications
- Voltage range: 3.7-32V
- Current range: 0-5.1A
- Power range: 0-120W
- Capacity range: 0-99,999mAh
- Energy range: 0-999.99Wh
- Equivalent impedance: 1-9,999.9
- Temperature display: 0°C-65°C / 32°F-149°F
- Voltage resolution: 0.01V
- Current resolution: 0.001A
- Display: 0.96-inch IPS color screen
- Refresh rate: 0.5Hz
- Dimensions: approximately 64 x 22 x 12 mm
Package Contents
- 1 x USB tester
Frequently Asked Questions
What measurements can this USB tester display?
It displays voltage, current, power, capacity, energy, equivalent impedance, and temperature across six selectable screen modes.
Can this USB multimeter identify fast-charging protocols?
Yes. It detects QC 2.0/3.0, Apple charging modes, Android DCP/AFC, FCP, and SCP protocols supported by the connected equipment.
Does it save battery-capacity data after disconnection?
Yes. Its power-off storage function retains accumulated capacity and energy readings when USB power is removed.
Can it help compare USB chargers or cables?
Yes. Comparing voltage under no-load and load conditions can help reveal voltage drop and evaluate charging-system performance.
