DSO 138 DIY Oscilloscope Kit Opening Source 2.4" TFT 1MSPS Digital Oscilloscope Kit with DIY Parts & Probe, Handheld Pocket Sized 13803K, SMD Electronic Learning Set
- Digital DIY oscilloscope uses ARM Cortex-M3 processor and contains a 2.4-inch color TFT display, which can be used as an ARM development test board.
- Let you effectively observe and measure signal waveforms in many occasions such as audio, video synchronization, low-frequency switching power supply, infrared receiving and transmitting.
- Can make a tailor-made software development on the basis of this kit, which can be can be changed to millivoltmeter, data recorder, etc.
- The variety of components is suitable for students to understand the oscilloscope structure and principles, and do in-line component , and chip component training.
- The oscilloscope kit is a kit specially designed for professional teaching and training in electronics. Please note that this kit need to be assembled by yourself.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Specifications:
Maximum Real-time Sampling Rate: 1Msps
Accuracy: 12Bit
Sampling Buffer Depth: 1024 bytes
Analog Bandwidth: 0-200KHz
Vertical Sensitivity: 10mV / Div - 5V / Div (1-2-5 progressive manner)
Input Impedance: 1M
Maximum Input Voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)
Coupling Modes: DC / AC / GND
The Horizontal Time Base Range: 10s / Div - 50s / Div (1-2-5 progressive manner)
Supply Voltage: DC 9V

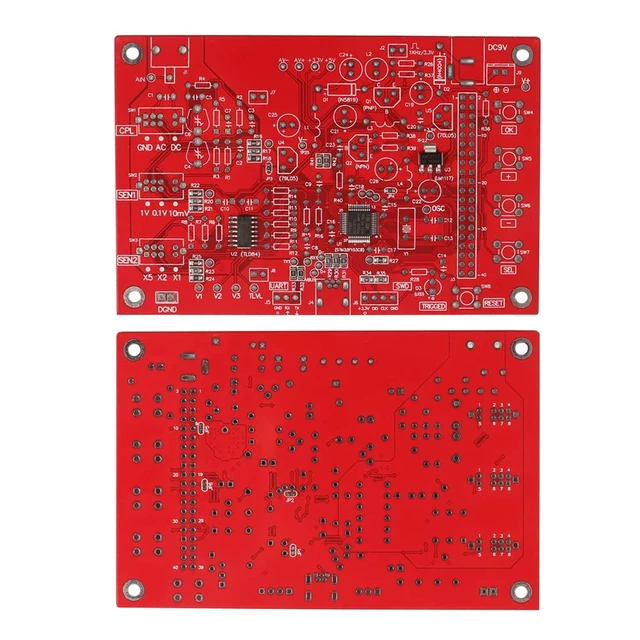

Oscilloscope Circuit Boards
PCB size: 117 X 76mm / 4.6 X 3in
Screen size: 52 X 40mm / 2 X 1.57in
The Oscilloscope DIY kit is an upgraded version of the popular DIY oscilloscope kit

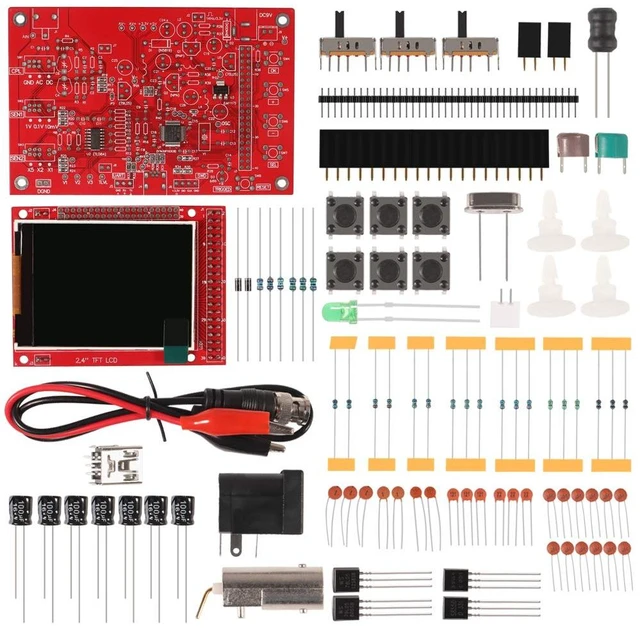

All parts required for completion are included, along with assembly instructions and a user manual
Package included:
1 X Oscilloscope DIY kit
1 X Probe
1 X Instruction
