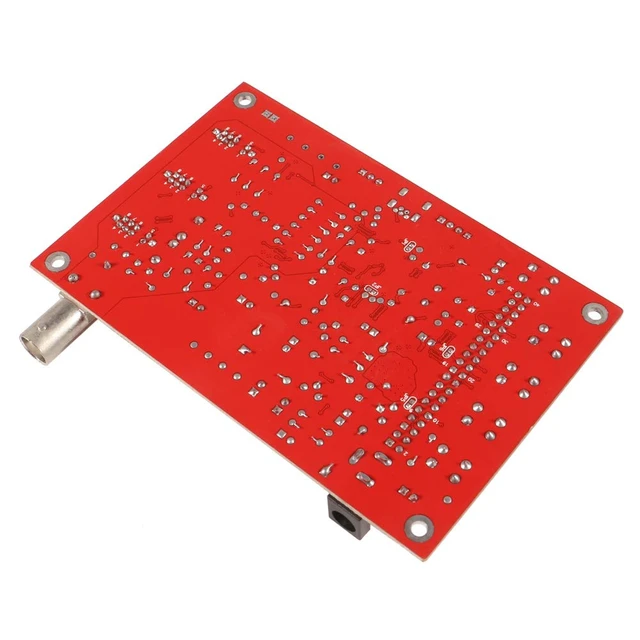

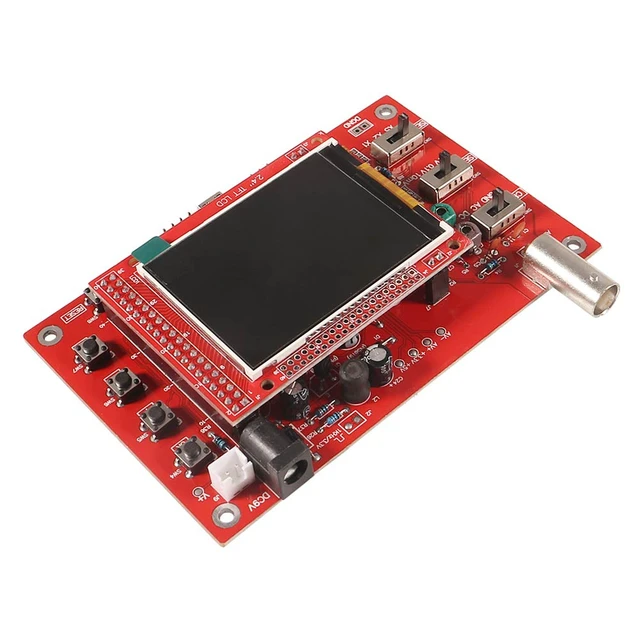

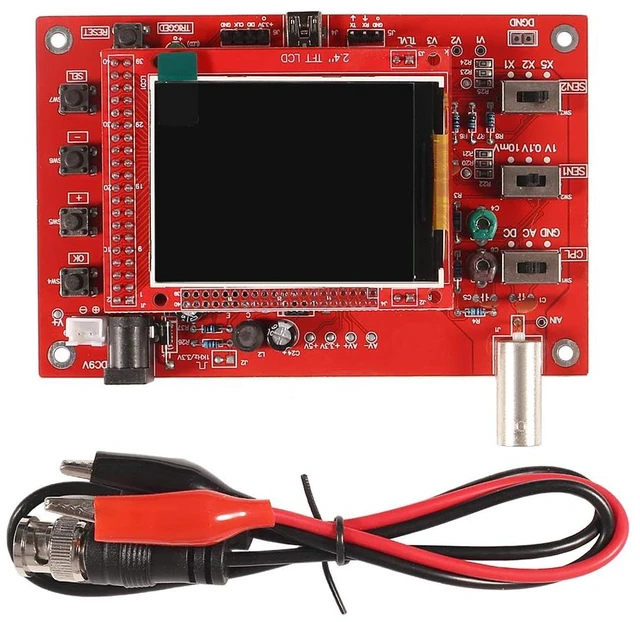

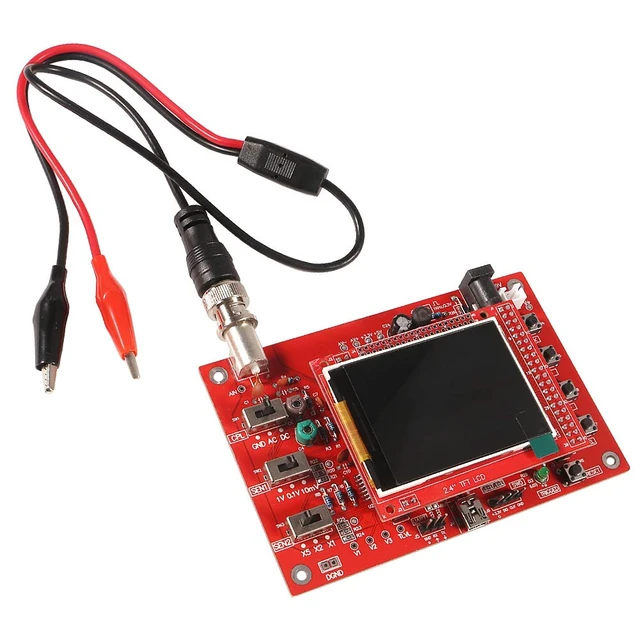

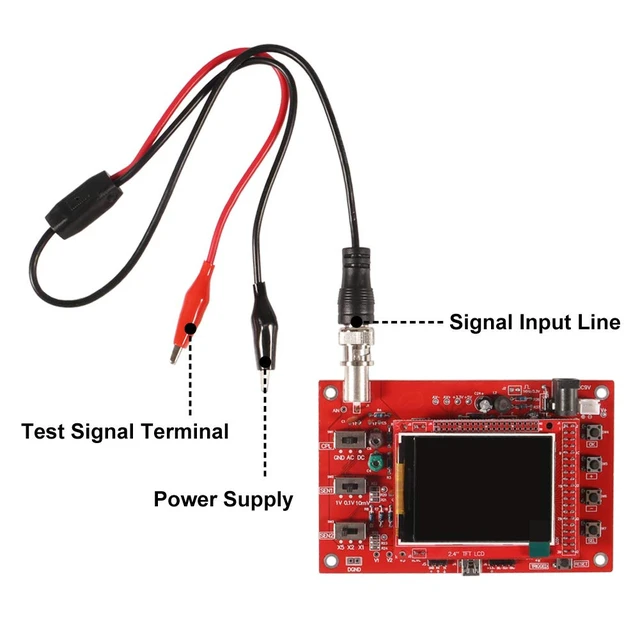

138 DIY Oscilloscope Kit Opening Source 2.4" TFT 1MSPS Pocket-Size Digital Oscilloscope Kit with DIY Parts & Probe, Handheld Pocket Electronic Learning Set, Assembled Vision
- This DSO 138 oscilloscope circuit boards has been assembled and can be used directly.
- This oscilloscope board uses ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display screen, can be used as ARM test development board.Can freeze at any time waveform display (HOLD function).Comes 1Hz /3.3V square wave test signal source.
- 2.4" Oscilloscope with automatic, regular and one-shot modes, easy to capture the moment waveform.Available rising or falling edge trigger.Observable previous trigger waveform (negative delay).
- 2.4 inch TFT handheld pocket-size digital oscilloscope with waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.Waveform storage function: will not lose the waveform after power off.
- Partially open-sourced,the MCU has been programmed, adjustable vertical displacement,and with instructions,which increase the likelihood of adding different features or developing new applications on the hardware for users.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Specifications:
Maximum Real-time Sampling Rate: 1Msps
Accuracy: 12Bit
Sampling Buffer Depth: 1024 bytes
Analog Bandwidth: 0-200KHz
Vertical Sensitivity: 10mV / Div - 5V / Div (1-2-5 progressive manner)
Input Impedance: 1M
Maximum Input Voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)
Coupling Modes: DC / AC / GND
The Horizontal Time Base Range: 10s / Div - 50s / Div (1-2-5 progressive manner)
Supply Voltage: DC 9V
PCB Size: 117 X 76mm / 4.6 X 3in
Screen Size: 52 X 40mm / 2 X 1.57in
Tips:
Package Included:
1 X DSO 138 digital oscilloscope board

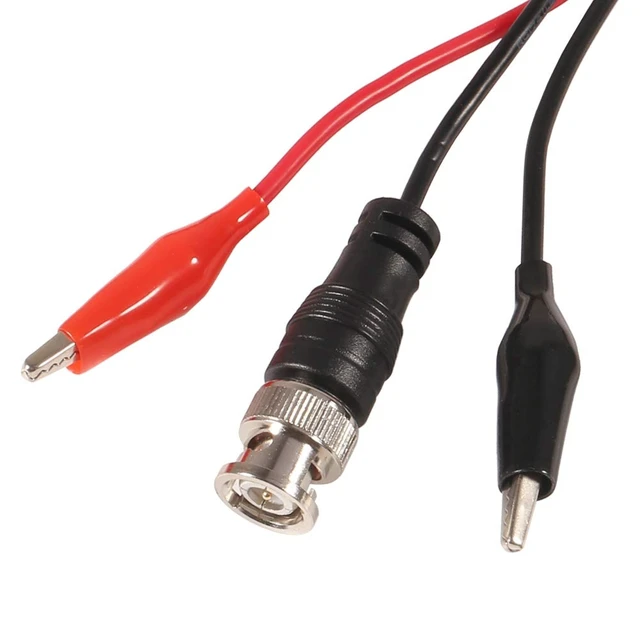

1 X Probe
3 X User Manual(English)
