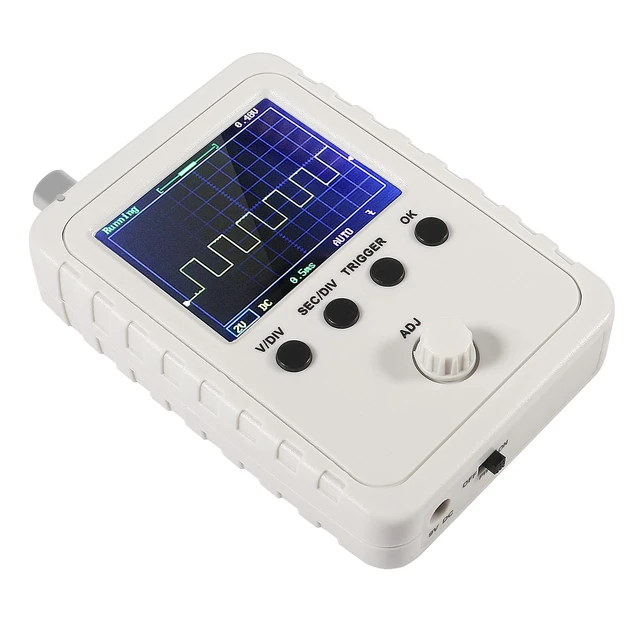

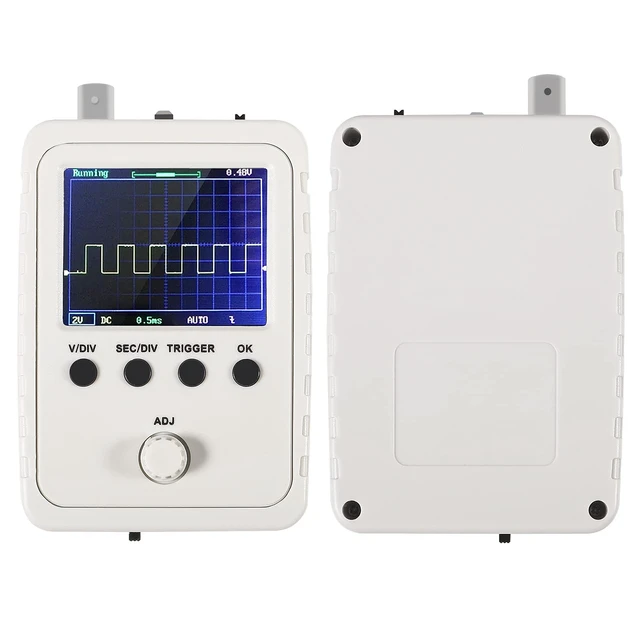

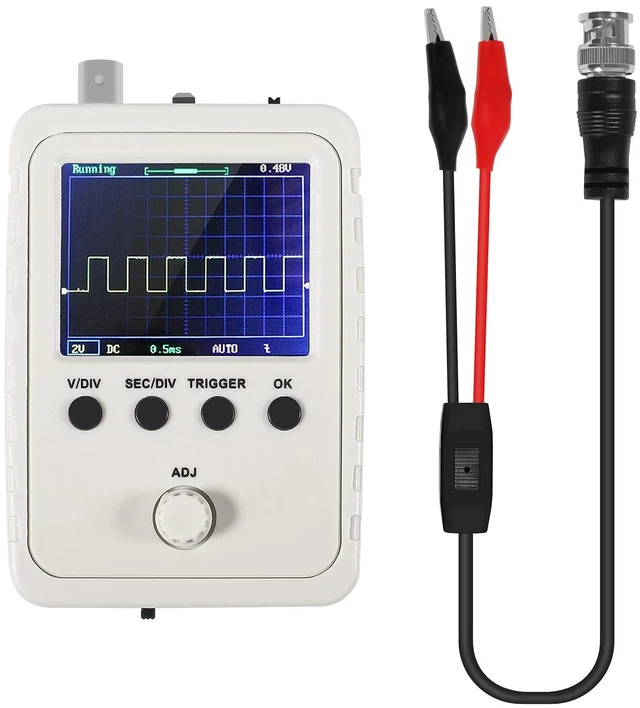

DSO 150 Digital Oscilloscope Kit with Protection Box Color 2.4" TFT LCD Full Assembled with Allicator Chip Cable Probe and Case Cover, Sensitivity for Oscilloscope DIY Kit
- DSO 150 kit is an upgrade to the popular DSO138 scope kit. Contains a 2.4"""" color TFT LCD (320x240) display and optical encoder for navigation.
- Auto/normal/single trigger modes, easy to capture the moment waveform. use 9V DC power charger (NOT Included).
- Convenient to capture the instantaneous waveform. 2.4-inch color TFT display, waveform parameter digital display include: Frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values and effective value. with secondary development on the basis, can be changed to voltmeter, data loggers.
- Used for secondary development on the basis of this kit, it can be changed to millivoltmeter, data loggers with instructions, easy to install and operate.
- waveform storage function: waveform will not lose when save/tune out the waveform/shutdown waveform, available rising or falling edge trigger, observable previous waveform before trigger (negative delay), can freeze waveform display at any time (HOLD function).
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Features :
Maximum real-time sampling rate: 1 MSa/s
Analog bandwidth: 0 - 200 KHz
Sensitivity range: 5 20 mV/div
Maximum input voltage: 50 Vpk (1X probe)
Input impedance: 1M ohms/20pF
Accuracy: 12 bits
Record length: 1024 points
Coupling modes: DC / AC / GND
Time Base Range: 500s/Div 10us / Div
Trigger modes: Auto, normal, and single
Trigger position: Center of buffer
Supply voltage: DC 9 V (8 10 V)
Note: 9V DC input power is required. DO NOT EXCEED 10V !
If using a wall wart, test the actual output before powering your scope.
It will permanently damage your scope to use higher voltages !
Package include:
1 x DSO 150 digital oscilloscope
1 x User manual

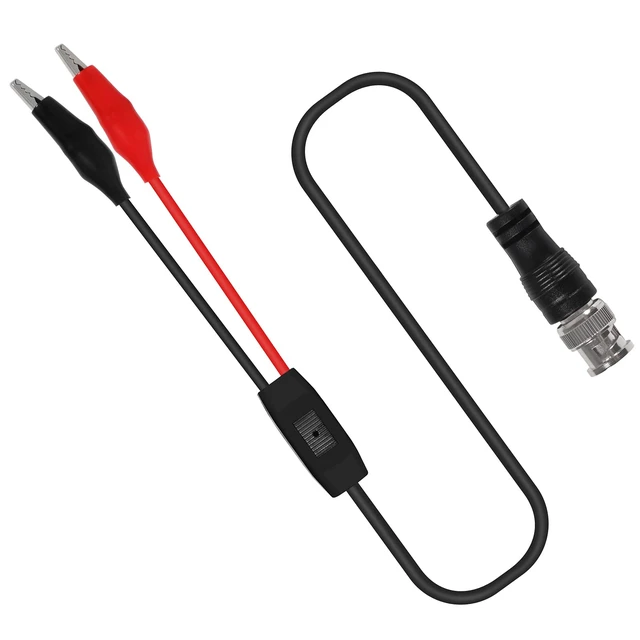

1 x Clip probe
