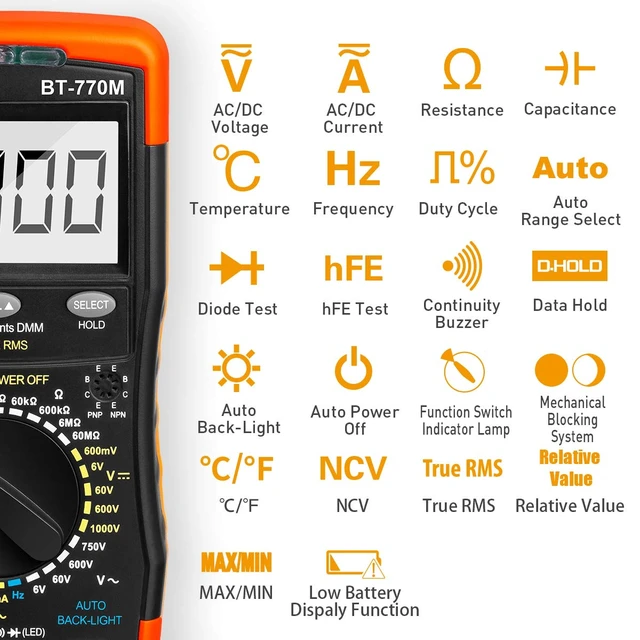

More Features:
- Data Hold
- Auto Ranging
- Auto Back Light
- Auto Power OFF
- Continuity Alarm
- Mechanical Blocking System
- Non-contact Voltage Testing

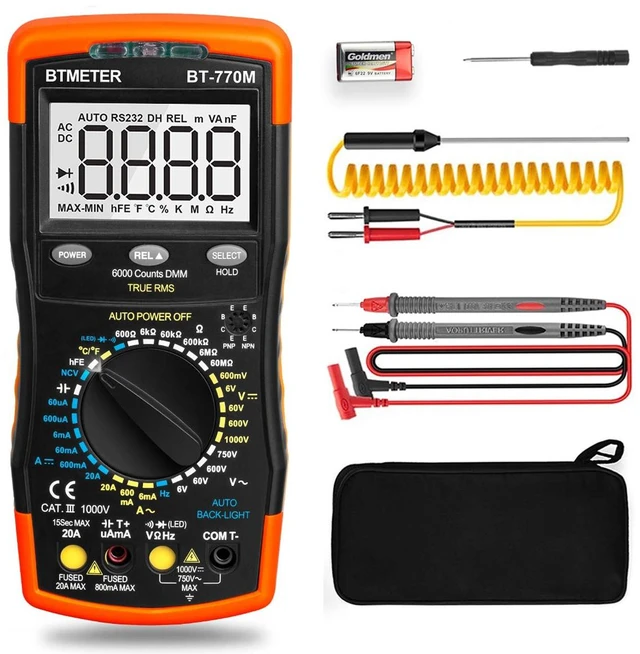

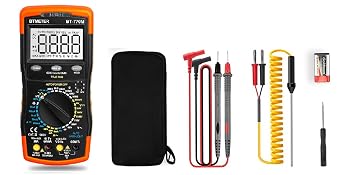

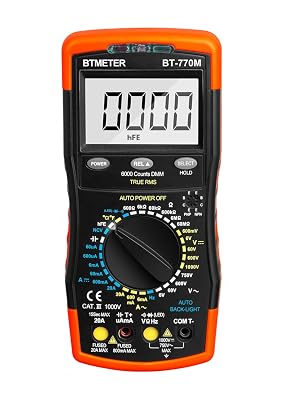

BT-770M 6000 Counts TRMS Digital Multimeter with Mechanical Blocking Protection
Durable tool makes troubleshooting easier and safer than ever
- BT-770M avometer is professionally designed for measuring circuit properties: AC & DC volt, amp, ohm, capacitor, temp, Hz, duty cycle, NCV, etc. It is widely used in car repairs and maintenance, indutrial, household, HVAC systems.
- Designed with kickstand and thick magnet on the back, you can pop out the bracket to support the voltemeter on the desk, or attch on metal materials while measuring.
- Mechanical protective system avoides ammeter damage caused by selecting wrong range or functions.

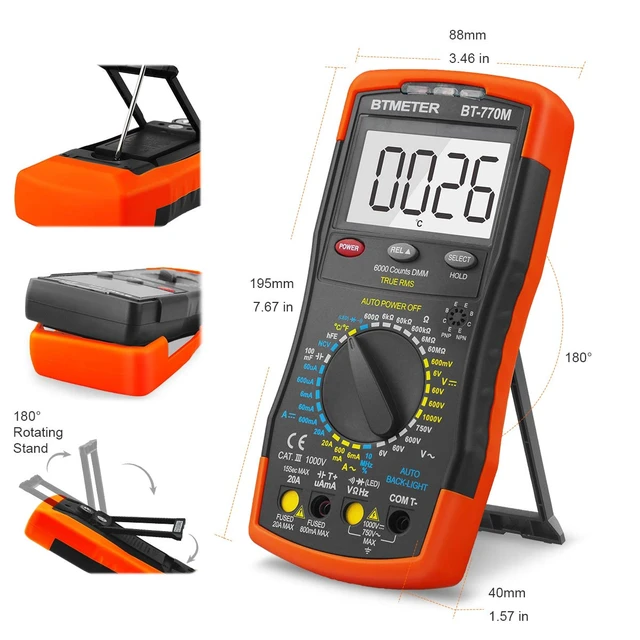

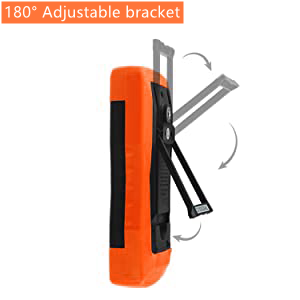

180° Adjustable Bracket
Backside design 180 degree adjustable bracket. It not only can be used as a support, but can also be used for suspension. What’s more, the back cover is equipped with magnets to adsorb the instrument on the surface of the iron materials.

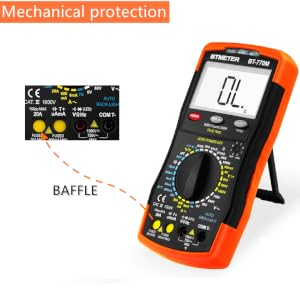

Mechanical Blocking System
The BT-770M has a mechanical protection system and dual fuses so you don't have to worry about plugging the test leads into the wrong holes, and is equipped with 2 overload fuses in all measurement ranges to prevent the multimeter from burning out.

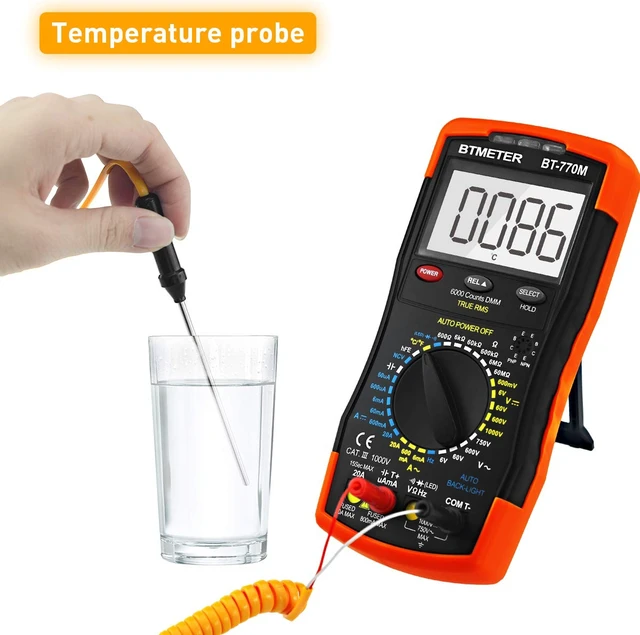

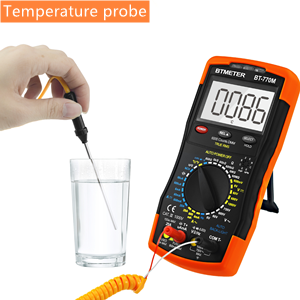

Multimeter with Thermometer
Not only a multimeter, but also a thermometer to test temperature from -4~1832?(-20~1000?) Extensible temperature test probe is included with the Multimeter.
Multi-function Autoranging Multimeter

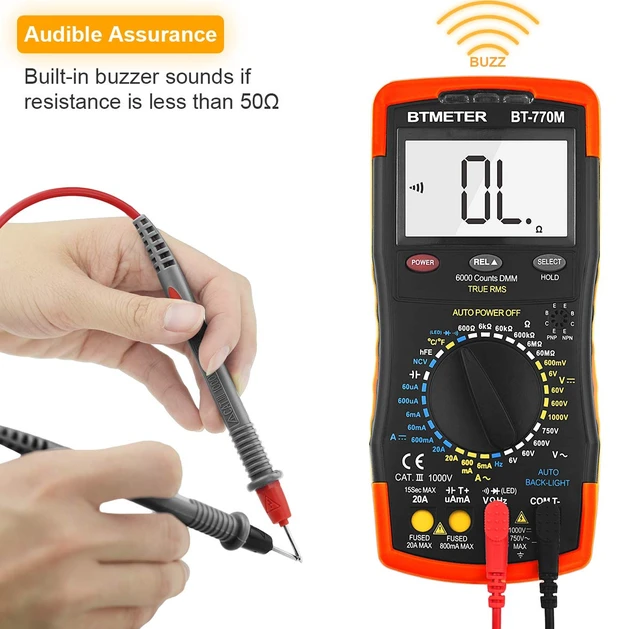

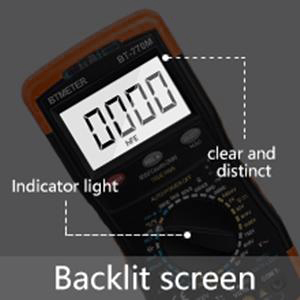

BT-770M multi-tester is equipped with indicator lamp & auto back-light function, so you can see data clearly even in the dark. Data Hold, Continuity with Alarm, Auto Power Off Function.

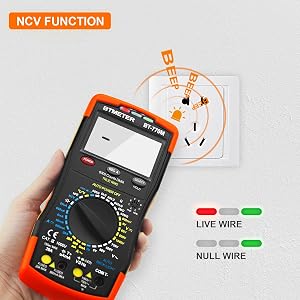

Non-contact Voltage Detection
Designed to be safer. Simply place the probe near a socket, outlet, terminal, etc. to test for the presence of voltage.
Wide Range of Applications
The multimeter is an industry-specific tool for residential/commercial electricians, HVAC, technicians, industrial maintenance and automotive repair professionals.
Specifications:
Precision at your Fingertips
We BTMETER are dedicated to designing and manufacturing high-quality instrument & device.
Our product portfolio includes industrial thermometer gun, multimeter, light meter, LED stroboscope and kinds of other precision instruments designed to meet diverse needs. Whether you need it for residential maintain, industrial troubleshoot, or DIY making, BTMETER provides a device that precisely matches your needs.
BTMETER Digital Multimeter
Clamp Meter with Bluetooth
Clamp Meter with Bluetooth
BTMETER Digital Light Meter
Thermal Camera
Industrial Thermometer Gun
3 Phase Power Clamp Meter 580P
Digital Megohmmeter 6688B
BTMETER - A Professional Test & Measurement Solution Provider
We dedicated ourselves to test, measurement and monitoring instrument and software that are widely used in electric,HVAC,automotive,network troubleshooting, as well as in hobbist, electrical, industrial, medical, process and calibration applications.
BT-770M 6000 Counts TRMS Digital Multimeter with Mechanical Blocking Protection
More Features:
- Data Hold
- Auto Ranging
- Auto Back Light
- Auto Power OFF
- Continuity Alarm
- Mechanical Blocking System
- Non-contact Voltage Testing
Durable tool makes troubleshooting easier and safer than ever
- BT-770M avometer is professionally designed for measuring circuit properties: AC & DC volt, amp, ohm, capacitor, temp, Hz, duty cycle, NCV, etc. It is widely used in car repairs and maintenance, indutrial, household, HVAC systems.
- Designed with kickstand and thick magnet on the back, you can pop out the bracket to support the voltemeter on the desk, or attch on metal materials while measuring.
- Mechanical protective system avoides ammeter damage caused by selecting wrong range or functions.
180° Adjustable Bracket
Backside design 180 degree adjustable bracket. It not only can be used as a support, but can also be used for suspension. What’s more, the back cover is equipped with magnets to adsorb the instrument on the surface of the iron materials.
Mechanical Blocking System
The BT-770M has a mechanical protection system and dual fuses so you don't have to worry about plugging the test leads into the wrong holes, and is equipped with 2 overload fuses in all measurement ranges to prevent the multimeter from burning out.
Multimeter with Thermometer
Not only a multimeter, but also a thermometer to test temperature from -4~1832?(-20~1000?) Extensible temperature test probe is included with the Multimeter.
Multi-function Autoranging Multimeter
BT-770M multi-tester is equipped with indicator lamp & auto back-light function, so you can see data clearly even in the dark. Data Hold, Continuity with Alarm, Auto Power Off Function.
Non-contact Voltage Detection
Designed to be safer. Simply place the probe near a socket, outlet, terminal, etc. to test for the presence of voltage.
Wide Range of Applications
The multimeter is an industry-specific tool for residential/commercial electricians, HVAC, technicians, industrial maintenance and automotive repair professionals.
Specifications:
| AC Current: | 6mA, 600mA, 20A (+/- 1.5% + 2 digits) |
| DC Current: | 60uA, 600uA, 6mA, 600mA, 20A (+/- 1.5% + 2 digits) |
| AC Voltage: | 6V, 60V, 600V,750V (+/- 1.0% + 2 digits) |
| DC Voltage: | 600mV, 6V, 60V, 600V, 1000V (+/- 0.5% + 2 digits) |
| Resistance: | 600, 6K, 60K, 600K, 6M, 60M Ohm (+/- 1.0% + 2 digits) |
| Temperature: | -20?~-1000?, -4?~1832? (+/- 3.0% + 10 digits) |
| Frequency: | 9.999Hz~9.999M hz (+/- 0.1% + 5 digits) |
| Duty Cycle: | 0.1%~99.9% (+/- 2.0% + 2 digits) |
| Capcitance: | 9.999nF, 99.99nF, 999.9nF,9.999uF, 99.99uF, 999.9uF, 9.999mF, 99.99mF (+/- 3.0%~10% + 10 digits) |
