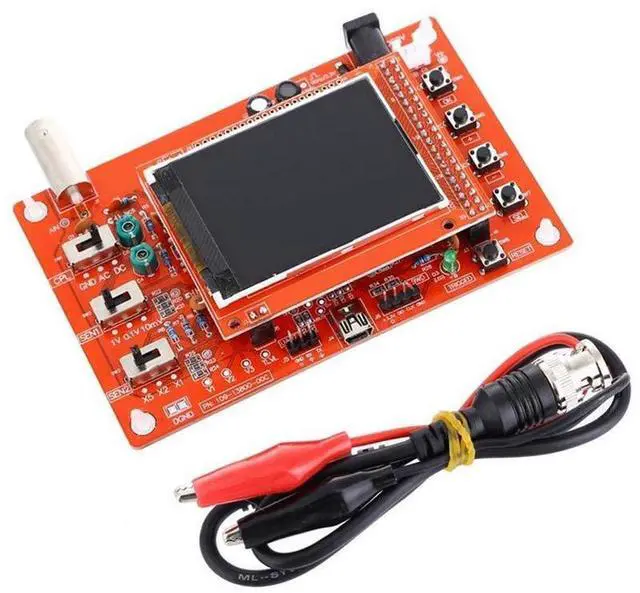

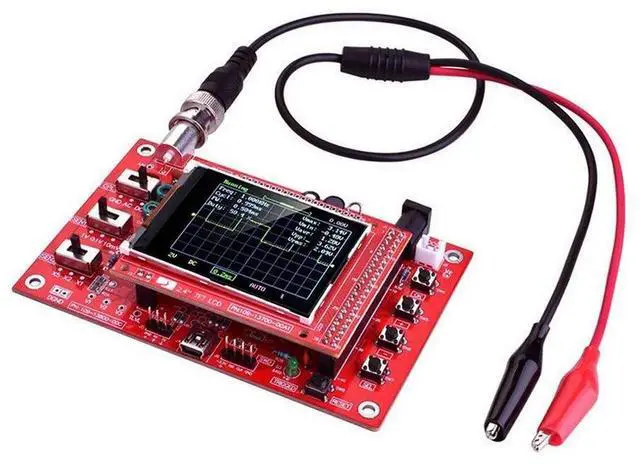

    DSO138 Oscilloscope DIY Kit Handheld Digital Oscilloscope 1msps Real-Time Sampling Rate

    Limited time offer, ends 07/19 By NexusPoint

    Be the first to review this product...
    • DSO138 Oscilloscope DIY Kit Handheld Digital Oscilloscope 1msps Real-Time Sampling Rate
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    About this item

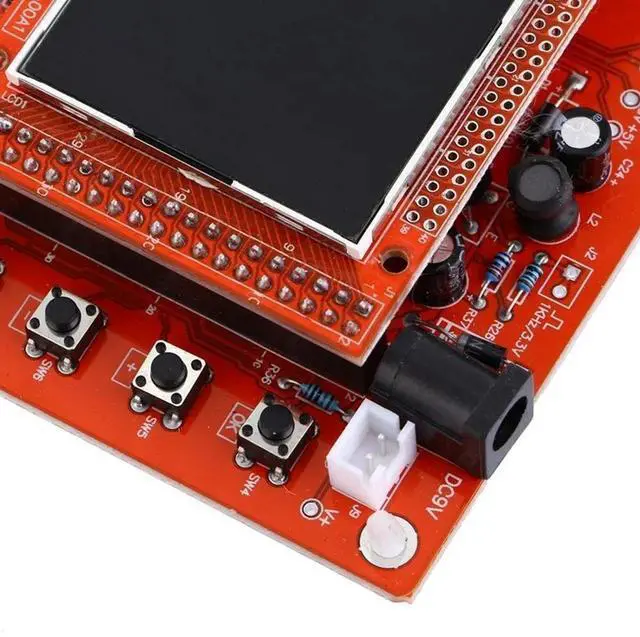

    1. High-Performance Processor: The kit uses an ARM Cortex-M3 processor (STM32F103C8) for efficient performance and includes a color TFT display.
    2. Versatile Applications: Ideal for observing and measuring signal waveforms in audio, video synchronization, low-frequency switching power supplies, and infrared receiving/transmitting.
    3. Customizable Software: Partially open-sourced, allowing for tailor-made software development to transform the oscilloscope into a millivoltmeter, data recorder, and more.

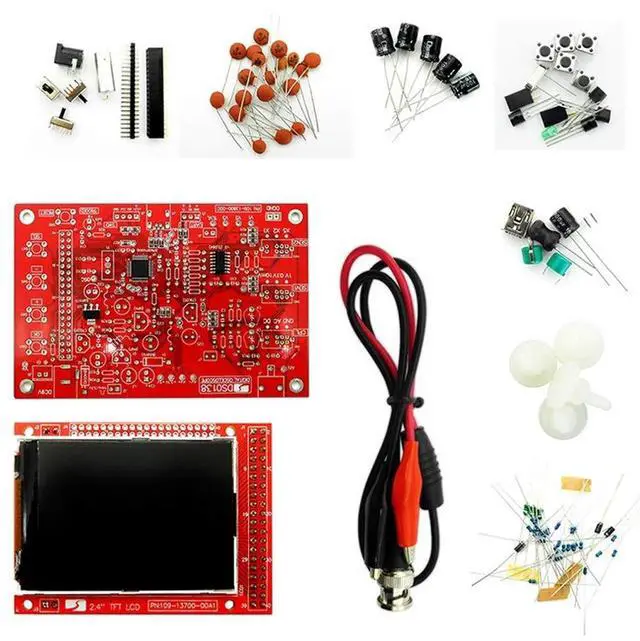

    4. Educational Tool: Suitable for students to learn oscilloscope structure and principles, and practice in-line and chip component welding. Easy to assemble.
    5. Professional Training: Designed for professional teaching and training in electronics, requiring self-assembly and soldering.
    6. Technical Specifications: Features a 1Msps maximum real-time sampling rate, 12-bit accuracy, 1024-byte sampling buffer depth, and 0-200KHz analog bandwidth.
    7. Advanced Features: Includes DC/AC/GND coupling methods, adjustable vertical displacement, multiple trigger modes, and a 1KHz/3.3V square wave test signal source.
