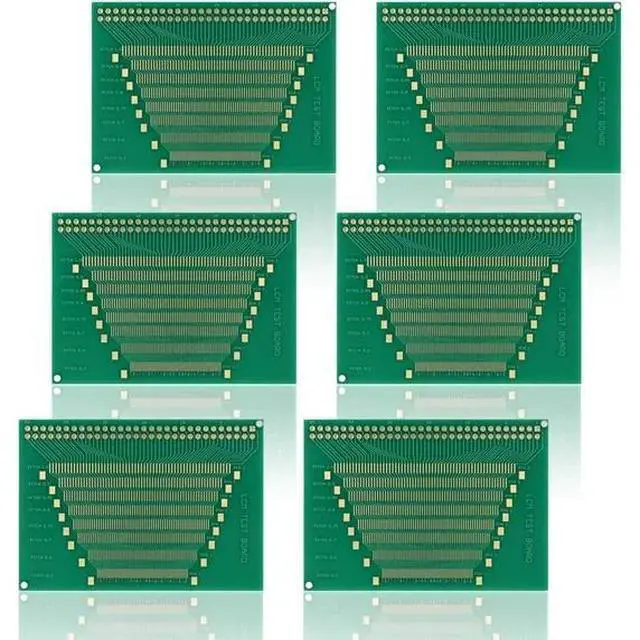

6pcs 60PIN 0.5-1.0mm Pitch Test Board TFT LCD Universal Test Board 2.54 Pitch Adapter Board
- 6pcs 60PIN 0.5-1.0mm Pitch Test Board TFT LCD Universal Test Board 2.54 Pitch Adapter Board
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
About this item
- Applied to the test of LCD products includes several wave switches arranged in a matrix. The wave switches in each column of the matrix are connected in parallel, and only one wave switch in each column is turned on; The wave switches in each row of the matrix are connected in series, and all the wave switches in each row are connected to COM or SEG bus.

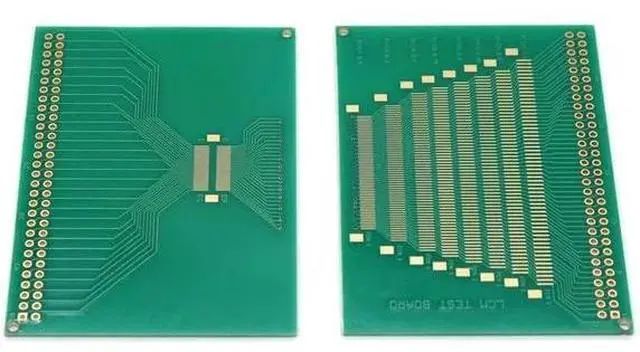

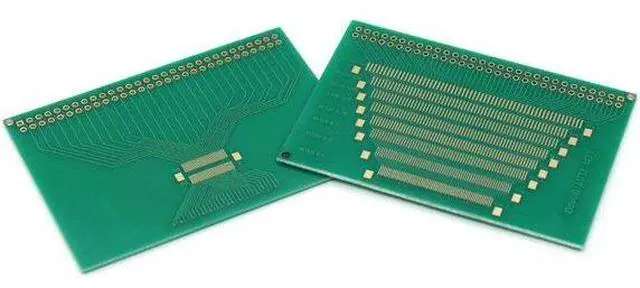

- Dual row 30 pins, 60 pins in total; Standard IC spacing 2.54mm hole plated through on top of the board.

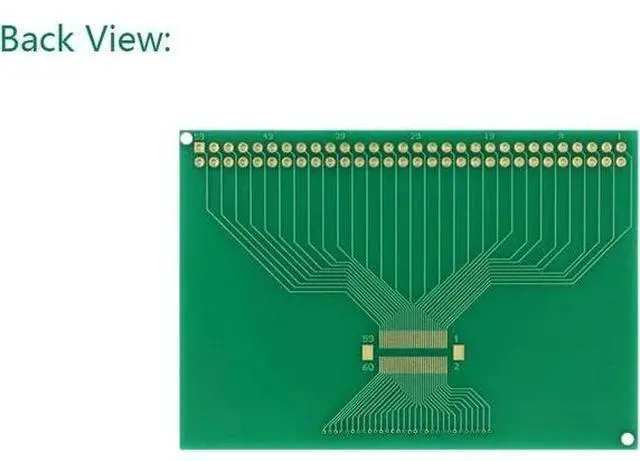

- Front pitch spacing: 0.5, 0.6, 0.7, 0.75, 0.8, 0.85, 0.9, 1.0MM; Backside pitch spacing: 60PIN dual row 0.4MM.
- Electroless Nickel Gold finished prevent the copper on PCB from being oxidized and corroded and is good for soldering and touching.
- Made of glass fiber FR-4 material, features high heat resistance, corrosion resistance, mechanical strength, insulation.
