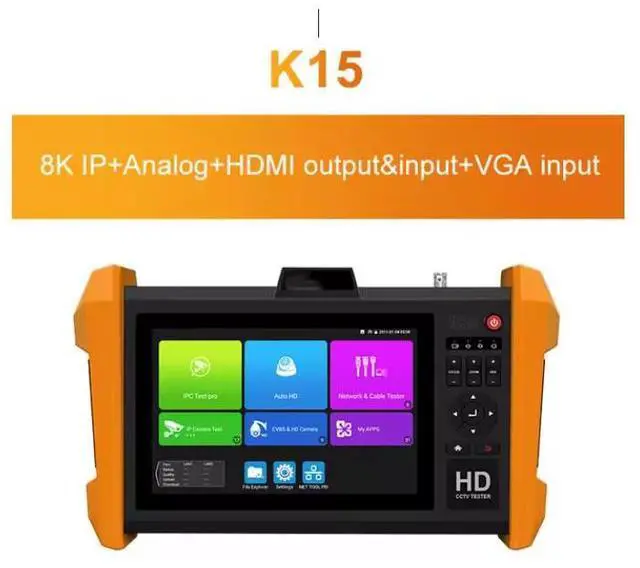

7 Inch CCTV IPC K15 Tester Support 8K H.265 TVI CVI AHD Support VGA input HDMI

Camera test:

7 inch IPS touch screen, 1920*1200 resolution

8K H.265 video display via mainstream

Support TVI 5.0 audio test

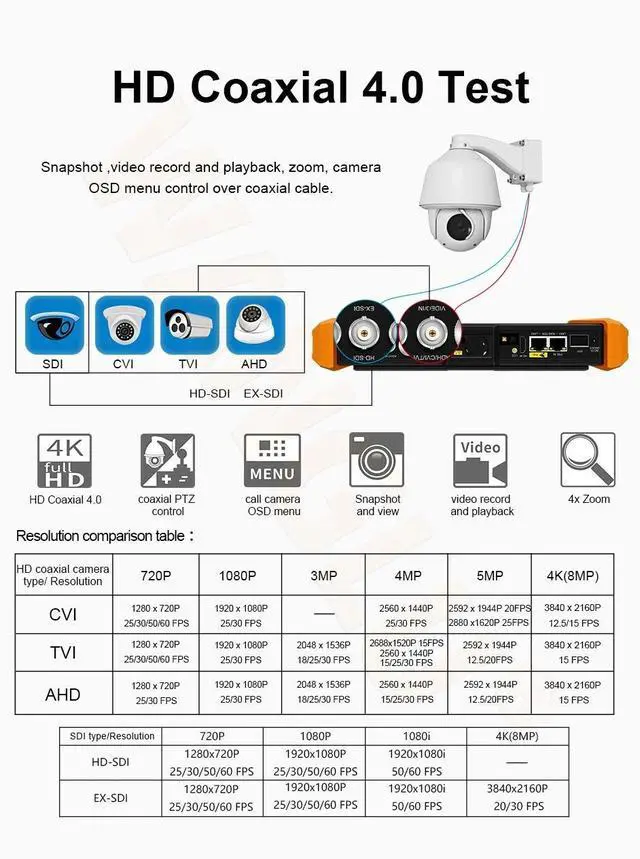

TVI 5.0 test, 3840 x 2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu ,

8MP AHD test, 3840 x 2160P 15 FPS,4xzoom, video record & playback, coaxial PTZ & call OSD menu

8MP CVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu

8MP EX-SDI test, 3840 x 2160P 25/30 FPS,4xzoom, video record & playback, coaxial PTZ & call OSD menu *(Optional)

HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu * (Optional)

3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu * (Optional)

Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record & playback, coaxial PTZ & call OSD menu.

HDMI Input, up to 4K 30FPS, and support snapshot, video record & playback

Rapid ONVIF, Auto log in and display image, one-key create testing report, including camera IP address, resolution, encoding and other related information; support cross-network segment test; audio and video synchronization test; face recognition and other functions; NEW

AXIS, Hikvision camera test, enter ONVIF app, input username and password to test

CVBS camera test and PTZ control

IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)

Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement

DC12V/3A power output, DC24V 2A power output

DC5V 2A power output, can connect USB camera, USB and Mouse, as power bank

48V PoE power output power, max power 30W

Rapid video, just by one key to detect all network cameras and auto display

Built in Wi-Fi Analysis, support 2.4G/5G frequency band, can test Wi-Fi camera, create Wi-Fi hotspot

Cable test:

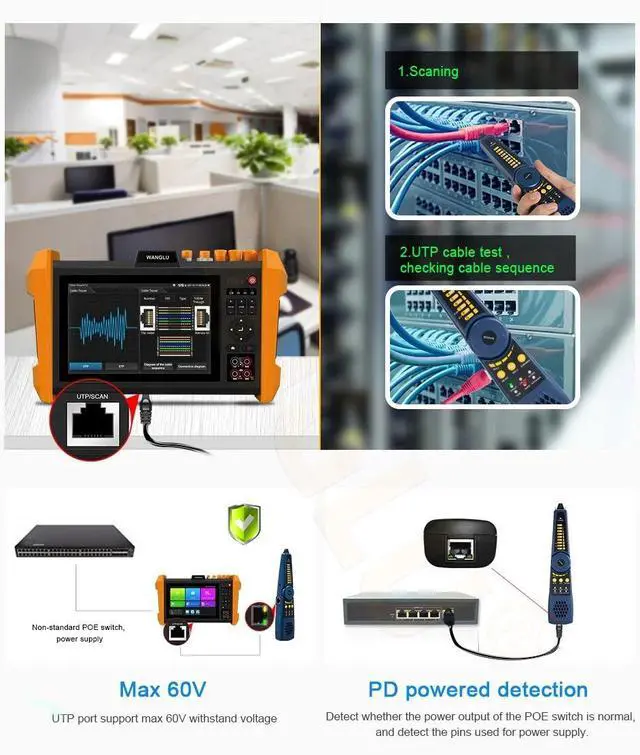

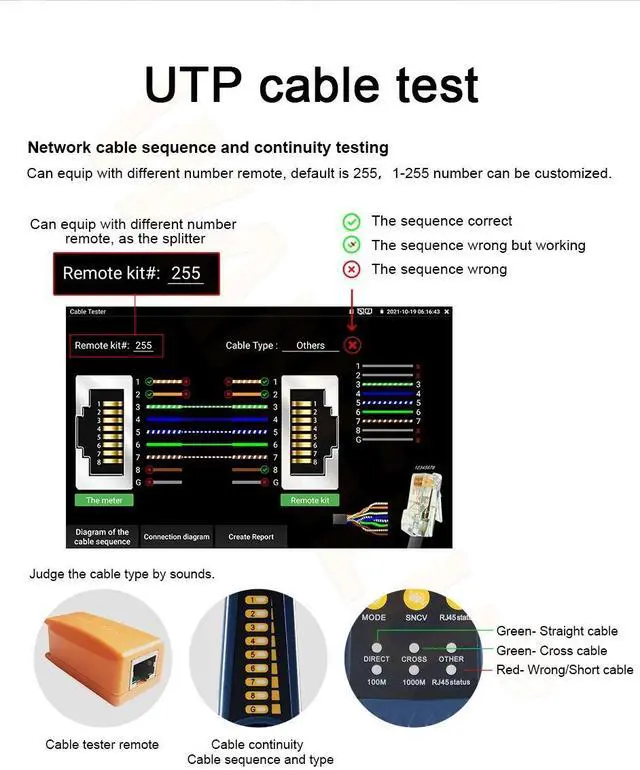

Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized,and detect near-end, mid-end and far-end fault test of RJ45 cable plug

RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc.

Upgraded Digital Cable tracer, search BNC cable, network cable and telephone cable from the mess cables, more accurately *(Optional)

TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cables length and short circuit measurement range 1.2KM, Add TDR network port, it is convenient to test network cable. *(Optional)

Other functions:

Laser distance meter , measurement range 100m, accuracy±3mm

HDMI Input support 4K 30FPS, HDMI output support 4K 60FPS

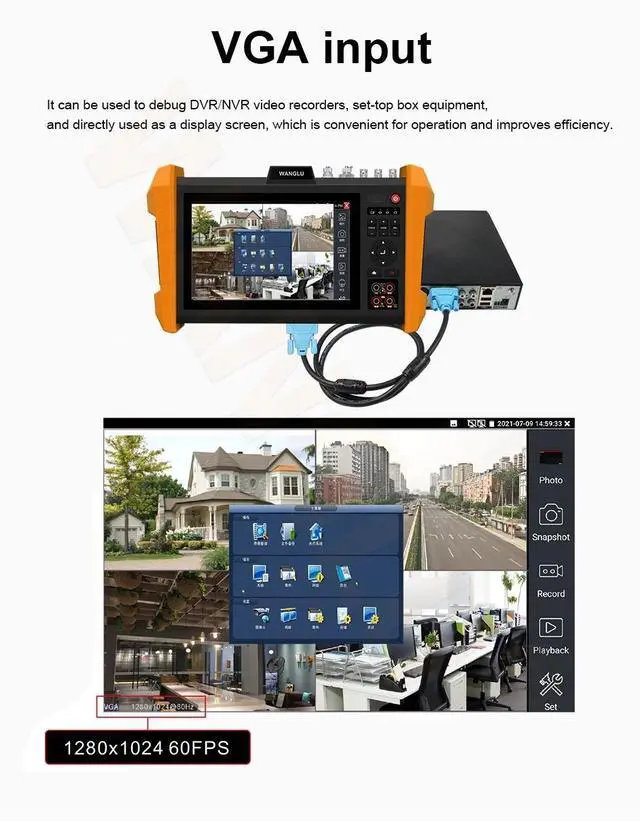

2K 60FPS VGA input

Professional WIFI Analyzer, detect the surrounding wifi signal and signal strength

Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route

POE & power information, DC12V& PoE power and voltage output /input measurement

Tester Play: Tester, android version mobile phone and PC display at the same time

Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, HDMI IN etc

Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters

4K color bar generator, send CVI/TVI/AHD/CVBS color bar video signal for testing monitor or video cable, support 4K resolution

Self-update software, you can install apps with android version

Media player, 4K video files and MKV/MP4 media files play

Quick office, quick office app (support excel, word, ppt format) doc. editable

8GB TF card included

Display its genuine resolution of the IP camera images

Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools

7.6 V /7800mAh Lithium Ion Polymer Battery, after 3.5 hours charging, working time lasts 16 hours
