LANYI MR9271PRO Multifunctional Signal Generator pe66 4-20mA HART Communicator
- Features
- - This product is a multifunctional signal generator that can output various types of signals, including voltage,
- current, frequency, resistance, thermal resistance, thermocouple, etc. Among them, the most significant characteristic is simplex and duplex modes.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
- Product name: MR9271PRO multifunctional signal generator
- Core: high speed ARM processor
- Flash memory: 32MB flash
- Shell material: high quality nylon material
- Surface: high transmittance tempered glass
- Button material: high quality silicon button
- Built-in battery: 2600mA lithium battery
- External power supply: 5V/1A
- Operational temperature: -10â?? ~ 55â??
- Storage temperature: -20â?? ~ 70â??
- Humidity: 20% - 80%RH (non-crystallizing)

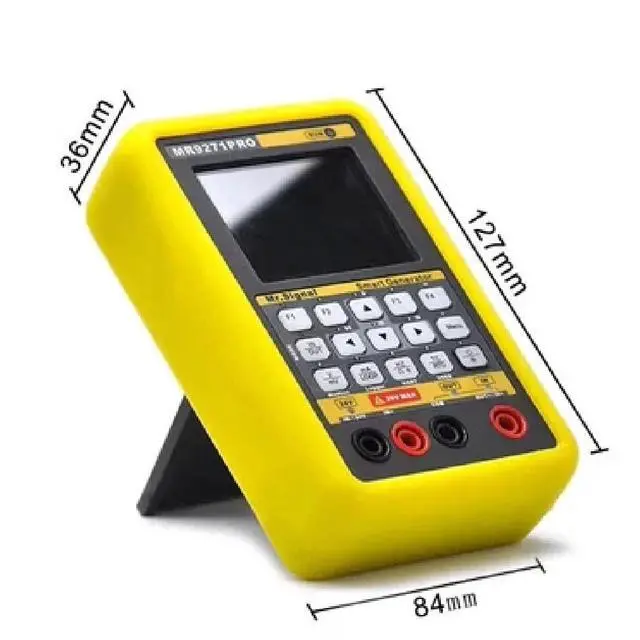

- Product size: 127 x 80 x 38mm
- Net weight: 300g
- Signal type: mA, V, mV, Hz, TC, RTD
- Frequency mode: PWM, RPM, RPH, Pulse, Hz = Val*k+b, Quantitative
- Thermocouple: K, R, S, E, J, T, N, B, WRE25, WRE26
- Thermo-resistor: PT100, PT200, PT1000, CU50
- Product function: HART protocol, Modbus protocol, programming output, paperless recoder, signal conversion, signal preset, real-time curve, Modtable.
