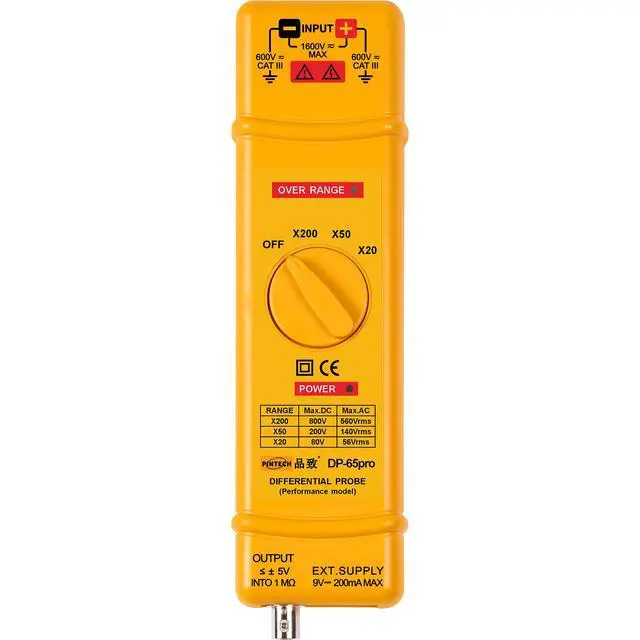

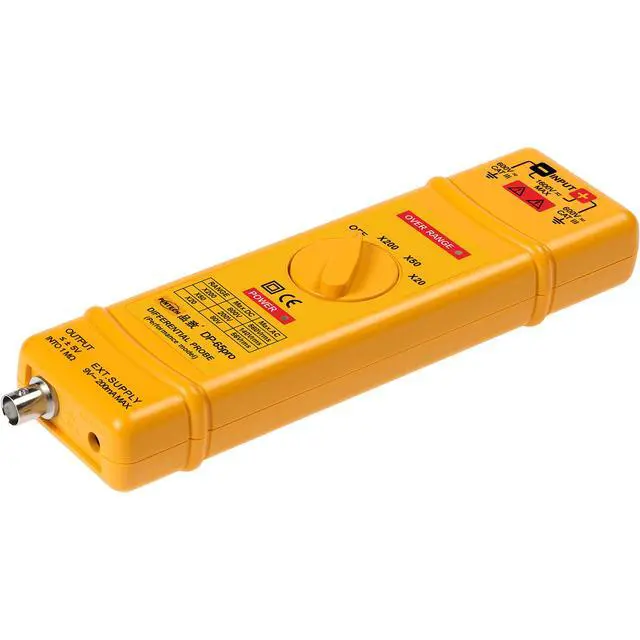

PINTECH High Voltage Differential Active Probe 1600V, 65MHz, 20X/50X/200X Attenuation Rate, 5.4ns Rise Time Oscilloscope Probe DP-65Pro
- DP-65Pro differential probe's maximum measurement voltage can be up to 1600Vp-p. The high voltage probe will help you with most high voltage situation.
- The High Voltage probe with Bandwidth: DC-65MHz(50X/200X), DC-25MHz(20X). Attenuation Ratio: 20X/50X/100X. Rise time: 5.4ns. Accuracy: ±2%. Input resistance: 4M//1.2pF(between the two ends); 2M//2.4pF(Single-ended to ground).
- Widely Used: Our oscilloscope probe features with BNC interface, compatible with a wide range of oscilloscopes, requiring only that the device be equipped with standard BNC connectors.

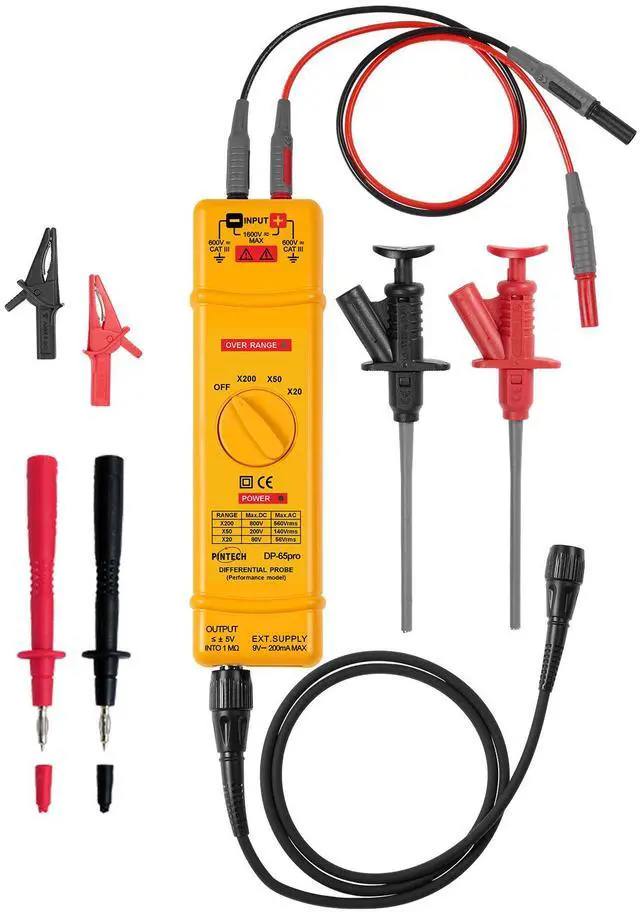

- Package Included: DP-65Pro differential probe x 1, Adapter x 1, Alligator Clip x 2, Probe Hook x 2, BNC cable x 1, Dedicated input cable x 1, User Manual x 1.
- This oscilloscope differential probe offers high stability, long service life, reliability and precision. We provide one year after-sales service, you can contact us if you have any questions!
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

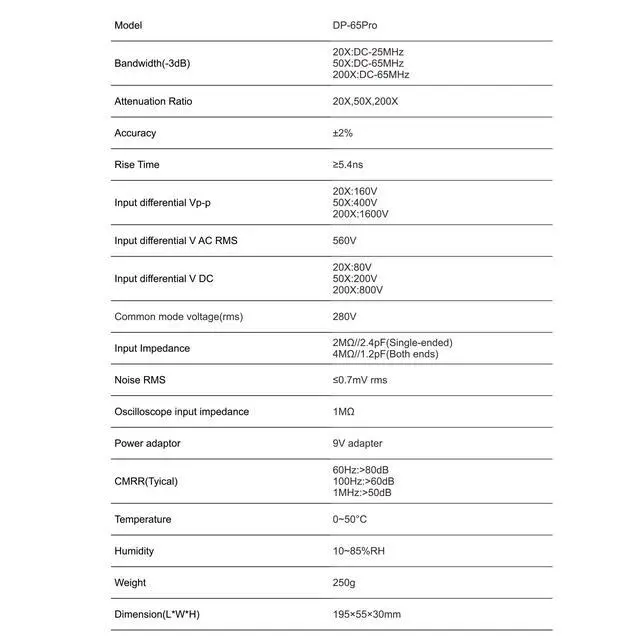

MODEL: DP-65Pro
Bandwidth(-3dB): DC-65MHz(50X/200X), DC-25MHz(20X)
Attenuation Rate: 20X, 50X, 200X
Rise time: 5.4ns
Accuracy: ±2%(after 20 minutes of warming up)
Testing Vp-p: 160V(20X), 400V(50X), 1600V(200X)
Input DC Voltage: 80V(20X), 200V(50X), 800V(200X)
RMS Value: 560V rms
Common-Mode Voltage RMS: 280V
Noise: 0.7mV rms
CMRR(typical): 60Hz:>80dB;100Hz:>60dB; 1MHz:>50dB
Input Impedance: 4M//1.2pF(between the two ends); 2M//2.4pF(Single-ended to ground)
Dimension(LxWxH): 195x55x30 mm
Weight: 250g/0.55lb
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by GUANGZHOU PINTECH CO LTD Return Policy
Manufacturer Contact Info
- For a directory of all our manufacturers, please click below.
- Manufacturers Directory
LOADING...
The PINTECH DP-65Pro is a high-voltage differential active oscilloscope probe built for engineers, technicians, and lab users who need to measure floating or high-voltage signals up to 1600 Vp-p with standard BNC oscilloscopes, especially in power electronics, inverter, and industrial test work within its 65 MHz bandwidth class.
Recommended For
- Engineers and technicians troubleshooting offline power supplies, inverter stages, or mains-referenced switching nodes who need a truly differential measurement instead of clipping a standard ground-referenced probe onto live circuitry.
- Bench users working on motor drives, industrial controls, or tube-amplifier/high-voltage service where up to roughly 1600 Vp-p differential measurements are part of normal diagnostics and a standard BNC oscilloscope is already on hand.
- Repair labs and electronics benches that need moderate bandwidth for observing switch-waveform edges, gate-drive behavior, and differential ripple/noise in power electronics, without stepping up to a much higher-bandwidth premium probe.
- Users comparing mid-range differential probes who specifically want multiple attenuation settings to trade off sensitivity and voltage range across different bench jobs, rather than buying separate low-voltage and high-voltage probes.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Oscilloscope probing and general signal measurement for use within a DC–65 MHz bandwidth |
| Electrical Performance | DC–65 MHz bandwidth for measurements within that frequency range |
| Physical | Yellow color, dimensions 195 × 55 × 30 mm |
| Environmental | Maximum operating temperature listed as 50? |
| Model Identifiers | PINTECH oscilloscope probe |
