DPOS350P 4-in-1 Tablet Oscilloscope 350MHz, Spectrum Analyzer 200KHz - 350MHz, Frequency Response Analyzer DDS Generator, 2CH Handheld Oscilloscope 1 GSa/s, 7" Touch Screen Digital Phosphor
Limited time offer, ends 07/05 By Zhiyi Technology

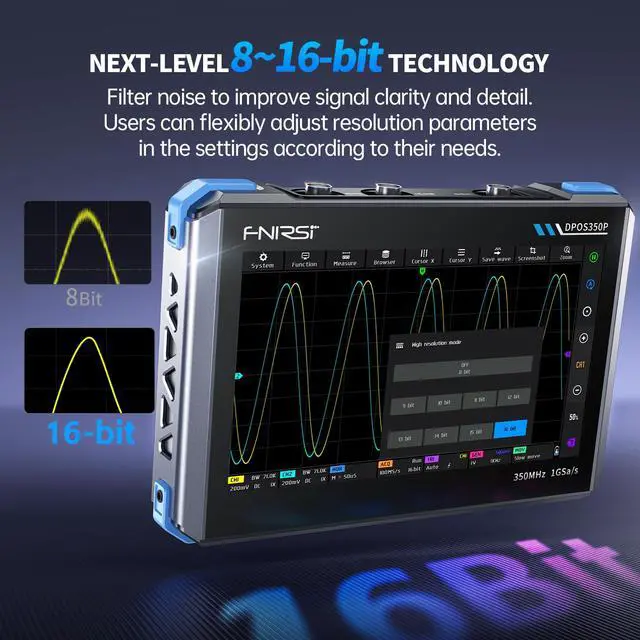

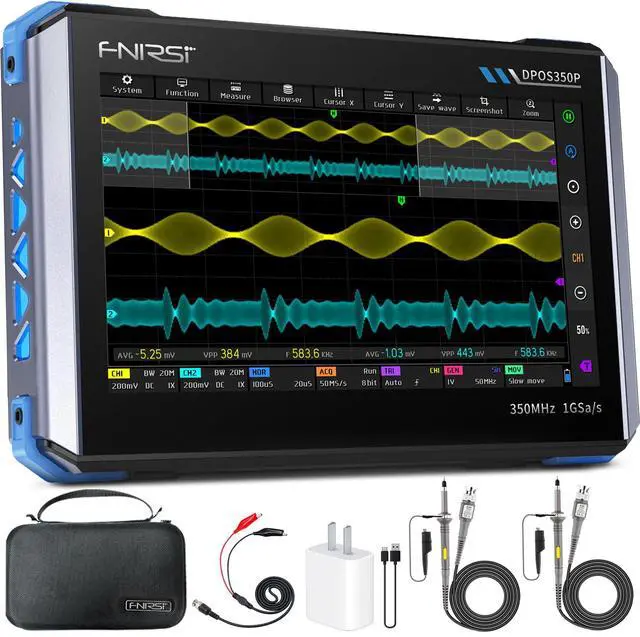

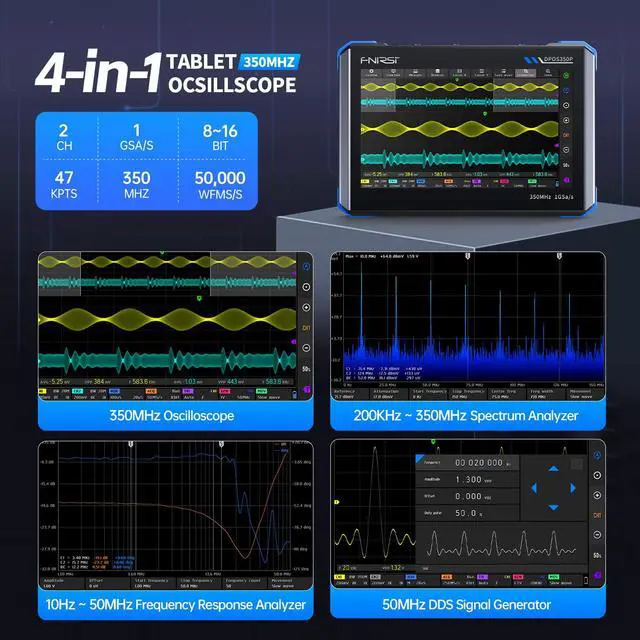

- 4-in-1FNIRSI DPOS350P handheld oscilloscope 350 MHz bandwidth, 1 GSa/s, 47 Kpts depth, 8-16-bit resolution, 50,000 wfms/s refresh. 2 channel oscilloscope, 7" touchscreen, digital phosphor, X-Y mode, 2 mV/div ultra-sensitive, ZOOM, 12 auto measurements, cursor

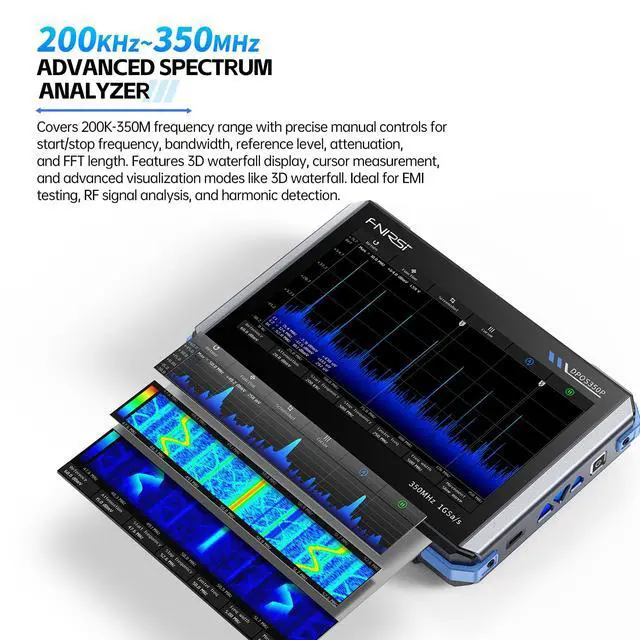

- Spectrum AnalyzerFFT-based analysis from 200KHz350MHz with 4K32K FFT length. Includes harmonic markers, cursor readouts, real-time 2D/3D waterfall view for EMI checks and signal integrity analysis

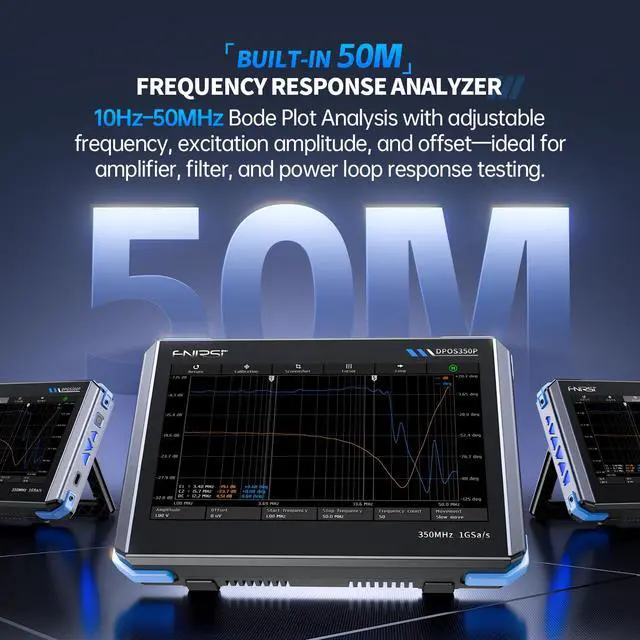

- Frequency Response Analyzer100 Hz50 MHz frequency range, 05Vpp amplitude, +2.5 V to -2.5 V offset, 20500 frequency Count. Measures gain/phase/frequencyideal for Bode plots, loop stability tests, and analog filter tuning

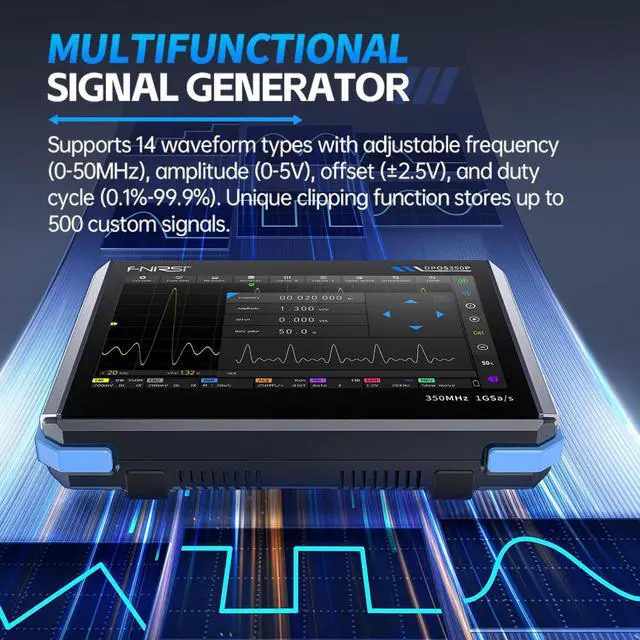

- DDS Signal GeneratorOutputs 14 standard waveforms and clipped waveforms. 050 MHz frequency range, 1 Hz resolution. 05 Vpp amplitude, -2.5 V to +2.5 V offset. Adjustable duty cycle from 0.1% to 99.9%. Supports 500 custom clipping waveforms

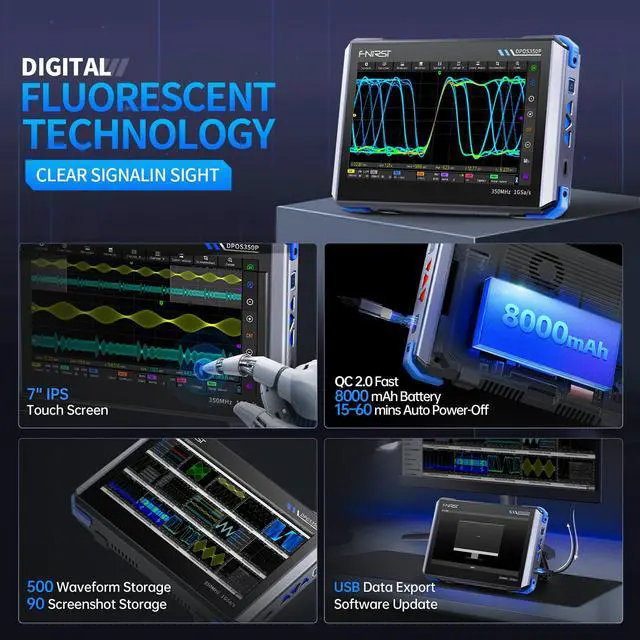

- Smart Features & PortabilityStores 500 waveforms + 90 screenshots. Supports FFT display, 150M/20M hardware bandwidth limiter, auto power-off. 8000 mAh battery, USB-C charging. Engineered for lab and field use
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
4-in-1FNIRSI DPOS350P handheld oscilloscope 350 MHz bandwidth, 1 GSa/s, 47 Kpts depth, 8-16-bit resolution, 50, 000 wfms/s refresh. 2 channel oscilloscope, 7" touchscreen, digital phosphor, X-Y mode, 2 mV/div ultra-sensitive, ZOOM, 12 auto measurements, cursor. Spectrum AnalyzerFFT-based analysis from 200KHz350MHz with 4K32K FFT length. Includes harmonic markers, cursor readouts, real-time 2D/3D waterfall view for EMI checks and signal integrity analysis. Frequency Response Analyzer100 Hz50 MHz frequency range, 05Vpp amplitude, + 2.5 V to - 2.5 V offset, 20500 frequency Count.
Measures gain/phase/frequencyideal for Bode plots, loop stability tests, and analog filter tuning. DDS Signal GeneratorOutputs 14 standard waveforms and clipped waveforms. 050 MHz frequency range, 1 Hz resolution. 05 Vpp amplitude, - 2.5 V to + 2.5 V offset. Adjustable duty cycle from 0.1 % to 99.9 %. Supports 500 custom clipping waveforms. Smart Features & PortabilityStores 500 waveforms + 90 screenshots. Supports FFT display, 150M/20M hardware bandwidth limiter, auto power-off. 8000 mAh battery, USB-C charging. Engineered for lab and field use
Measures gain/phase/frequencyideal for Bode plots, loop stability tests, and analog filter tuning. DDS Signal GeneratorOutputs 14 standard waveforms and clipped waveforms. 050 MHz frequency range, 1 Hz resolution. 05 Vpp amplitude, - 2.5 V to + 2.5 V offset. Adjustable duty cycle from 0.1 % to 99.9 %. Supports 500 custom clipping waveforms. Smart Features & PortabilityStores 500 waveforms + 90 screenshots. Supports FFT display, 150M/20M hardware bandwidth limiter, auto power-off. 8000 mAh battery, USB-C charging. Engineered for lab and field use
