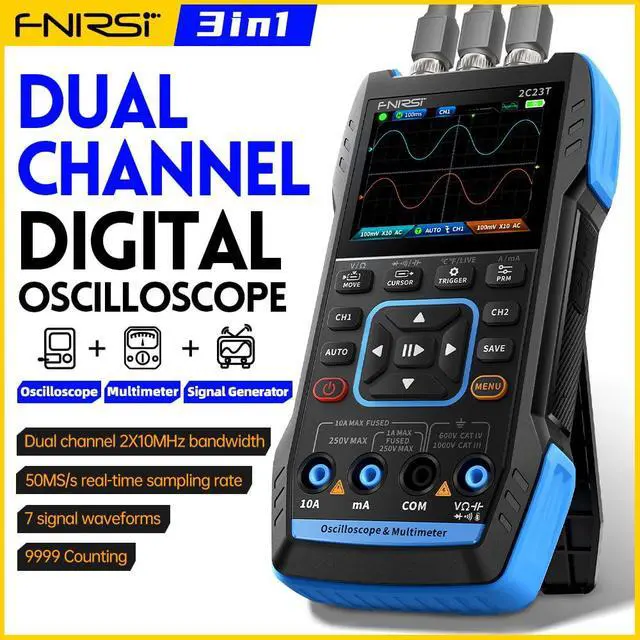

2C23T Digital Oscilloscope Multimeter DDS Generator 3 in 1, 2 Channels, 10MHz Bandwidth, 50MSa/s Sampling Rate, 10000 Counts, Voltage, Current, Capacitor, Resistor, Diode Test
Limited time offer, ends 07/05 By Zhiyi Technology
- Oscilloscope Mode2 channel handheld oscilloscope, 10 MHz bandwidth, 50 MSa/s sampling rate, 32 kb record depth, automatic measurement function, max voltage 400 V, vertical sensitivity 200 mv/div-10 v/div , support waveform image storage and export
- Multimeter Mode4-digit 10000 Counts. AC Voltage: 0-750 V, DC Voltage: 0-999.9 V, DC/AC Current: 0-9.999 A, Resistance: 0-99.99 M, Capacitance: 0-99.99 mF, Continuity Measurement. Multi-function meter for professionals, schools and hobbyists
- Signal GeneratorThe maximum waveform output frequency can reach 2 MHz and a step of 1 Hz, and can output seven waveforms including sine, square, triangle, full, half, noise, and DC
- Save functionone-click save, screening function. You can upload the saved image by connecting to PC via data cable. You can easily compare the waveforms by displaying the reference waveform and the measured waveform on the same screen

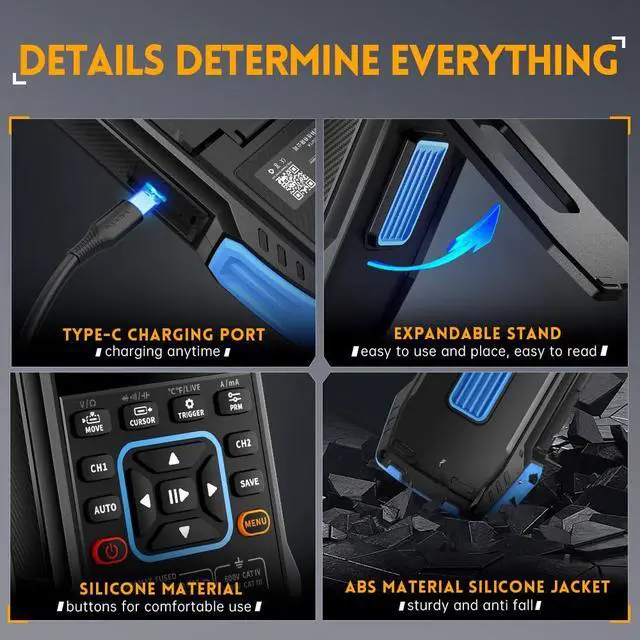

- Hardware DesignThe Oscilloscope adopts FPGA+MCU+ADC hardware architecture, built-in high-voltage protection module, adopts 2.8 inch LCD display, built-in 3000 mAh Li-ion battery, standby time up to 6 H
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Oscilloscope Mode2 channel handheld oscilloscope, 10 MHz bandwidth, 50 MSa/s sampling rate, 32 kb record depth, automatic measurement function, max voltage 400 V, vertical sensitivity 200 mv/div-10 v/div, support waveform image storage and export. Multimeter Mode4-digit 10000 Counts.
AC Voltage: 0-750 V,
DC Voltage: 0- 999.9 V, DC/AC
Current: 0- 9.999 A, Resistance: 0- 99.99 M, Capacitance: 0- 99.99 mF, Continuity Measurement. Multi-function meter for professionals, schools and hobbyists. Signal GeneratorThe maximum waveform output frequency can reach 2 MHz and a step of 1 Hz, and can output seven waveforms including sine, square, triangle, full, half, noise, and DC. Save functionone-click save, screening function. You can upload the saved image by connecting to PC via data cable. You can easily compare the waveforms by displaying the reference waveform and the measured waveform on the same screen. Hardware DesignThe Oscilloscope adopts FPGA+MCU+ADC hardware architecture, built-in high-voltage protection module, adopts 2.8 inch LCD display, built-in 3000 mAh Li-ion battery, standby time up to 6 H
AC Voltage: 0-750 V,
DC Voltage: 0- 999.9 V, DC/AC
Current: 0- 9.999 A, Resistance: 0- 99.99 M, Capacitance: 0- 99.99 mF, Continuity Measurement. Multi-function meter for professionals, schools and hobbyists. Signal GeneratorThe maximum waveform output frequency can reach 2 MHz and a step of 1 Hz, and can output seven waveforms including sine, square, triangle, full, half, noise, and DC. Save functionone-click save, screening function. You can upload the saved image by connecting to PC via data cable. You can easily compare the waveforms by displaying the reference waveform and the measured waveform on the same screen. Hardware DesignThe Oscilloscope adopts FPGA+MCU+ADC hardware architecture, built-in high-voltage protection module, adopts 2.8 inch LCD display, built-in 3000 mAh Li-ion battery, standby time up to 6 H
