DSO2C10 DSO2C15 DSO2D10 DSO2D15 Digital Oscilloscope Dual Channel Economical 100MHZ Bandwidth Handheld (DSO2C10)

1) 2 channels which are respectively controlled by independent knobs 2) 100 MHZ and 150MHZ analog channel bandwidth 3) Sampling rate up to 1 GSa/s 4) 8M memory depth. 5) Vertical range 2mV/div ~ 10V/div 6) Built-in 1 CH 25MHz waveform generator (DSO2D10, DSO2D15) 7)
Vertical resolution: 8bit 8)
Trigger: Edge, Pulse, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC 9)

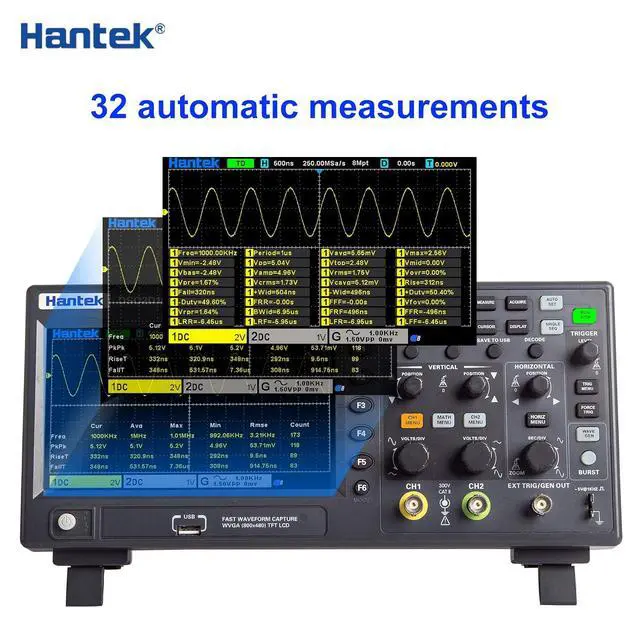

BUS decode and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN. 10) Can save multiple data formats, such as settings, waveforms, reference waveforms, CSV, pictures 11) A 3-digit digital voltage meter and a 6-digit hardware frequency indicator 12) 32 kinds of auto measurements with statistics, real-time statistics of maximum, minimum, standard deviation and etc.. 13) 2 sets of digital voltmeters 14) Support threshold testing, free measurements within the screen 15) Abundant SCPI remote command control 16) USB Host/Device.
