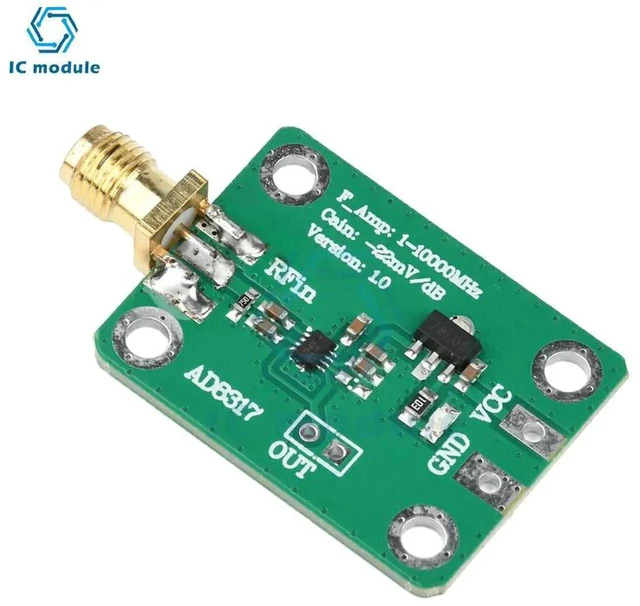

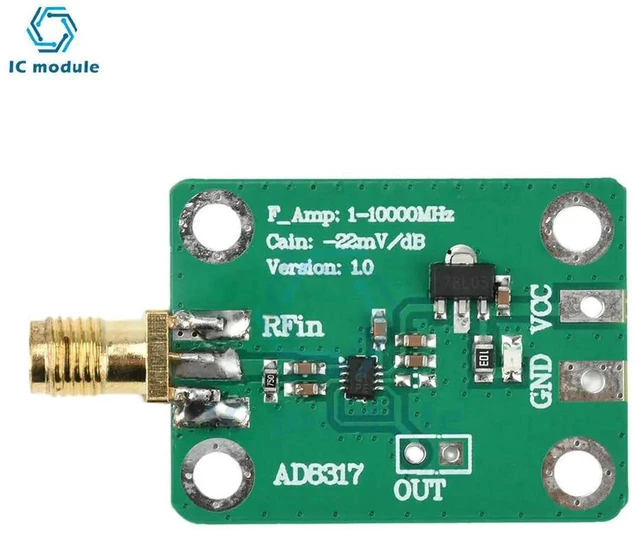

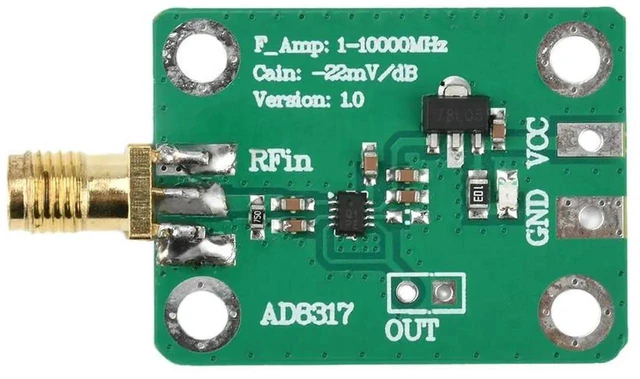

AJMRTC AD8317 Logarithmic RF Detector Power Meter Module, 1MHz10000MHz HighFrequency RF Signal Power Detection Board, DC 715V Input RF Power Meter for Radio Amplifier Test & Electronic Lab Projects
- - Builtin AD8317 logarithmic detector chip, covers 1MHz10000MHz wide frequency band for highfrequency RF signal power measurement
- - DC 715V wide power input, outputs analog voltage proportional to RF power level for power meter reading and signal monitoring
- - Good temperature stability and wide dynamic range, delivers reliable logarithmic detection for continuouswave and pulsed RF signals
- - Equipped with SMA RF interface for convenient signal access, compact PCB module for lab testing, radio equipment debugging and DIY build
- - Supports RF power monitoring of power amplifiers, radio transmitters; ideal for ham radio experiments and RF electronic development work
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC AD8317 RF logarithmic detector power meter module is a professional radiofrequency power detection unit built around AD8317 chip. It supports 1MHz10000MHz broadband RF signal input, converts RF signal power into proportional analog output voltage for powerlevel reading. Powered by DC 715V supply voltage, this module works for both continuouswave and pulsed radiofrequency signals.
With excellent temperature stability and wide dynamic range, it keeps consistent detection performance under varying working conditions. SMA RF connector provides convenient connection to RF signal sources. This module can be used for RF amplifier output power testing, transmitter power monitoring, RSSI signal acquisition and hamradio related experimental projects. Compact size makes it easy to integrate into custom test instruments and electronic DIY systems for radiofrequency development and laboratory measurement tasks.
SpecificationsBrand: AJMRTC Chip: AD8317 Frequency Range: 1MHz10000MHz Power Supply: DC 715V Function: Logarithmic RF Signal Power Detection RF Interface: SMA Connector Output: Analog Voltage Output Application: RF Power Meter, Amplifier Test, Radio Transmitter Monitoring, Ham Radio Experiment, Electronic Lab DIY Package Includes: 1 x AD8317 RF Log Detector Power Meter Module
