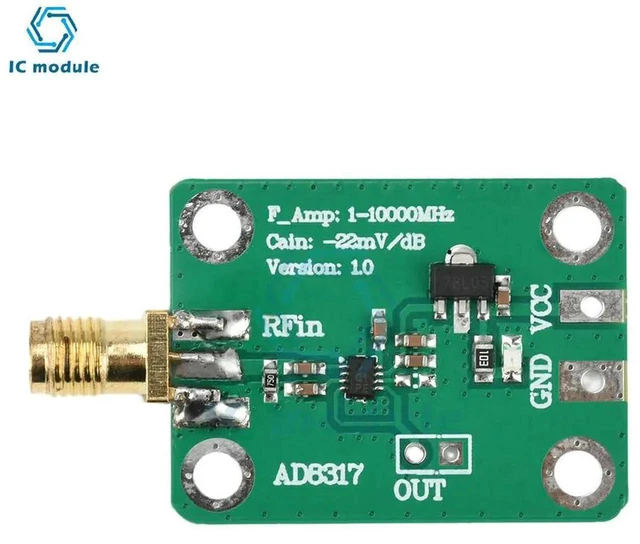

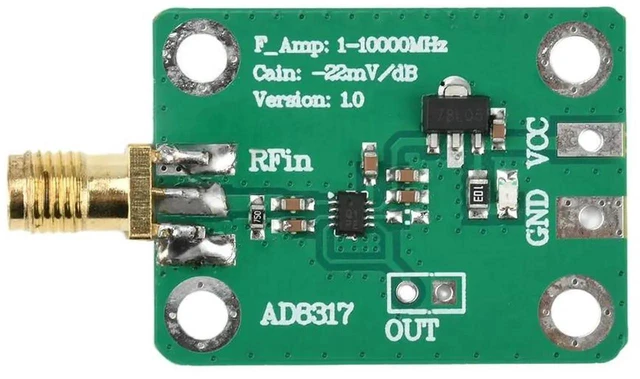

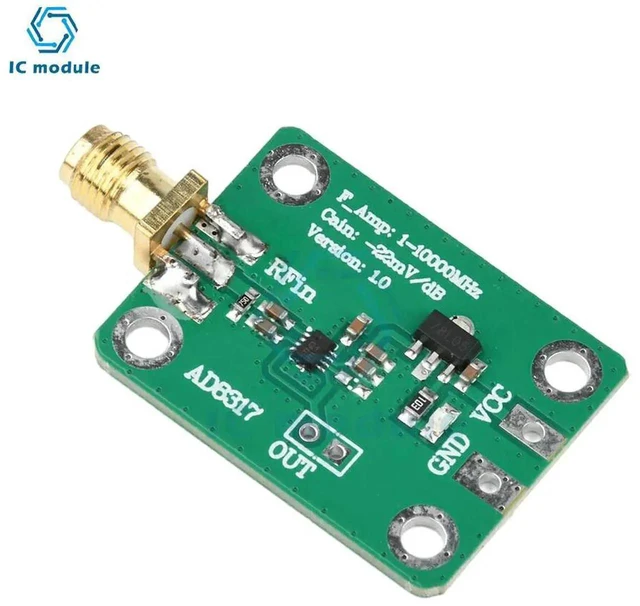

AJMRTC AD8317 RF Log Detector Power Meter Module, 1MHz10000MHz High Frequency RF Signal Power Detection Board, DC 715V Input Logarithmic Detector for Radio Frequency Test Project

AJMRTC AD8317 RF logarithmic detector module is a professional radio frequency power detection hardware adopting AD8317 highperformance log detector chip. It covers broad frequency band from 1MHz up to 10000MHz, capable of sensing highfrequency RF signal power and outputting corresponding logarithmic voltage signal for reading or subsequent data processing. The module requires DC 715V power supply input to maintain stable detection accuracy. Optimized PCB layout reduces signal interference during highfrequency operation. It is widely applied for homemade RF power meter assembly, wireless equipment debugging, RF signal strength monitoring and university electronic lab experiments. Users can combine this module with MCU or display unit to build complete power testing equipment. Please keep proper power supply within DC 715V range to avoid burning the chip. RF source and display unit are not included in package.

Brand: AJMRTC Chip Model: AD8317 Function: RF Logarithmic Detector, RF Signal Power Detection Frequency Range: 1MHz10000MHz Power Supply: DC 715V Application: RF power meter build, radio frequency test, wireless device debugging, electronic experiment Feature: Logarithmic output, wide highfrequency response Package Content: 1 x AD8317 RF Detector Power Meter Module
