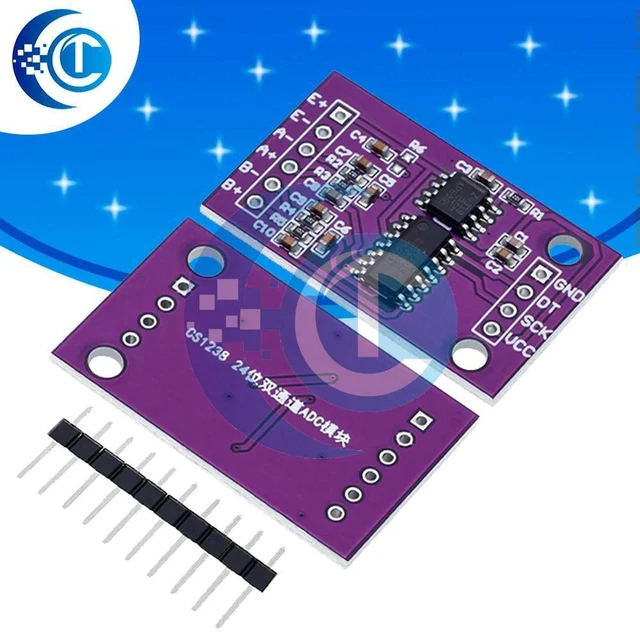

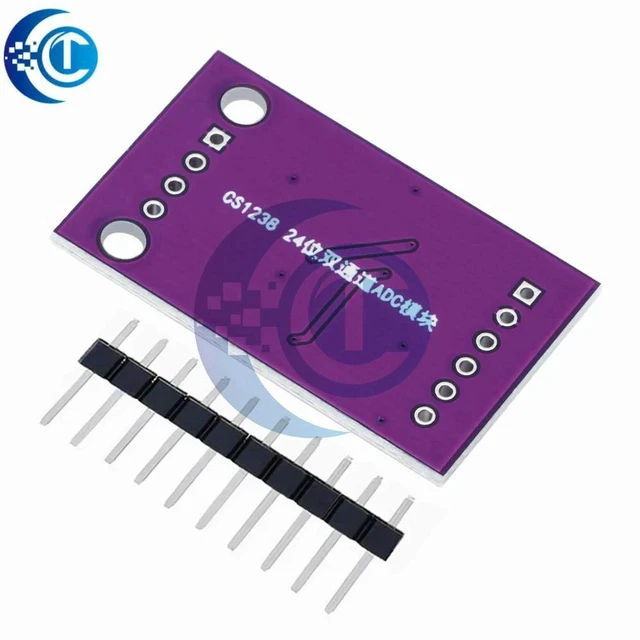

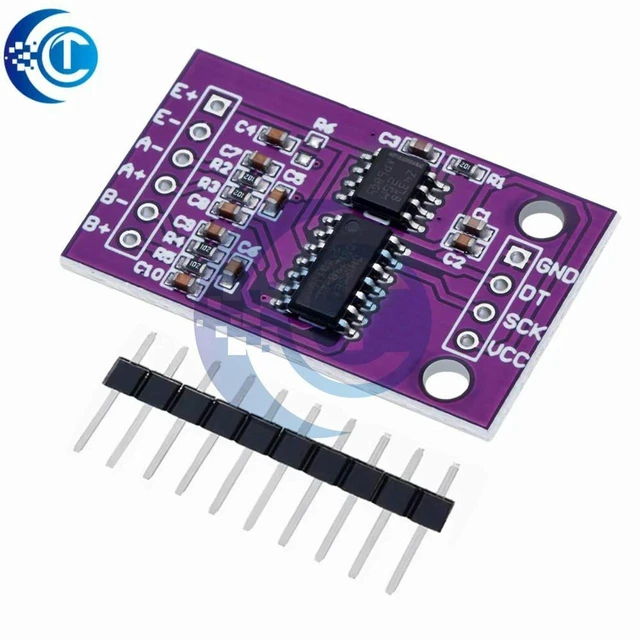

AJMRTC DIY Weighing Scale ADC Module, 24-Bit Dual Channel CS1238 Weight Sensor Board with Onboard TL431 External Reference, High Precision A/D Converter for Load Cell and Electronic Scale DIY Projects
- - CS1238 24-bit dual-channel ADC module designed for electronic weighing scale DIY builds
- - Built-in TL431 external reference chip to ensure stable and accurate analog conversion
- - High resolution A/D conversion for load cell signal collection and weight measurement
- - Dual-channel input supports two load sensors for multi-point weight detection
- - Simple wiring, easy to connect with MCUs, ideal for electronic scale and force sensing projects
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC CS1238 ADC module is a high-precision analog-to-digital converter specially developed for electronic weighing scales. It adopts 24-bit dual-channel CS1238 chip and integrates TL431 as the external reference source, providing stable reference voltage to reduce measurement error. This module is used to amplify and convert weak signals from load cells, outputting digital weight data to microcontrollers. The dual-channel design supports connecting two load cells at the same time. It is widely applied in homemade electronic weighing scales, pressure detection systems, force measurement experiments and other DIY electronic projects.
- Brand: AJMRTC
- Model: CS1238 Weighing ADC Module
- ADC Chip: CS1238
- Resolution: 24-bit
- Channel: Dual Channel
- Reference: Onboard TL431 External Reference
- Function: Load Cell Signal Acquisition, Weight Measurement
- Application: DIY Electronic Scale, Force Sensing, Electronic Projects
