AJMRTC DC 6V-12V NE555 Pulse Generator DIY Kit, Multi-Channel Waveform Signal Generator Module, Produces Sine Triangle Square Wave, Soldering Assembly Kit for Electronic Circuit Experiment and Teachin
- - Classic NE555 timer based waveform generator kit, outputs sine, triangle and square wave multi-channel signals
- - Powered by DC 6V to 12V input, adjustable frequency via onboard potentiometer for flexible signal testing
- - Full set of electronic components and PCB, great soldering practice kit for students and electronic hobbyists
- - Simple circuit principle, helps learners understand oscillation, waveform conversion and analog circuit knowledge
- - Widely used for laboratory signal source, circuit debugging, electronic teaching and DIY electronic projects
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

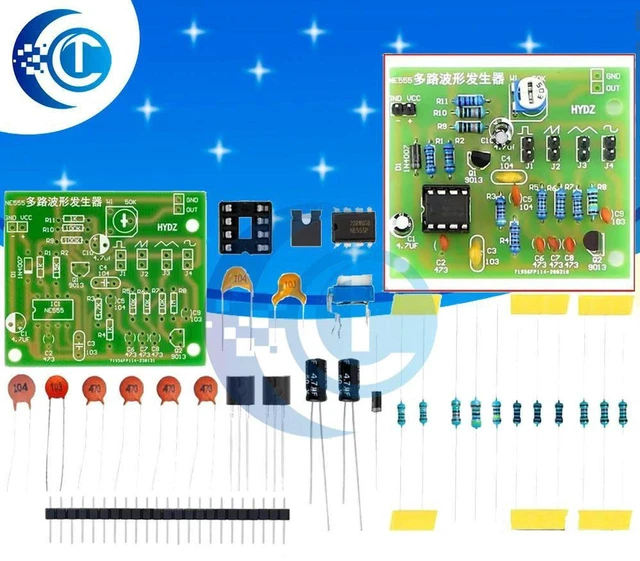

AJMRTC NE555 multi-channel waveform generator DIY kit adopts NE555 timer chip as the core. After soldering assembly, it can generate three common waveforms: square wave, triangle wave and sine wave, with independent signal output terminals.

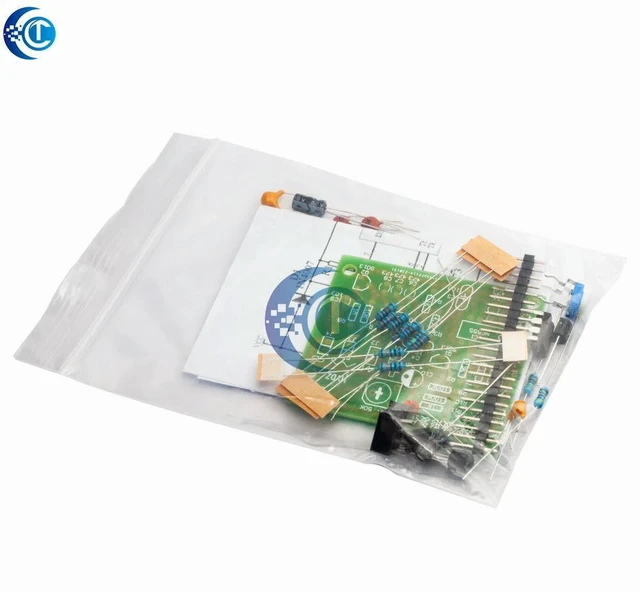

This kit runs on DC 6V~12V power supply. The onboard potentiometer can adjust the output signal frequency. It is a classic analog circuit teaching kit. All required components and PCB are included. Users can practice soldering skills while learning the principle of waveform generation and transformation.
Suitable for school electronic teaching, circuit lab testing, signal source debugging and hobbyist electronic assembly. It is a practical educational kit for beginners to learn analog electronics.
- Brand: AJMRTC
- Model: NE555 Waveform Generator DIY Kit
- Main Chip: NE555
- Power Supply: DC 6V ~ 12V
- Output Waveform: Square Wave, Triangle Wave, Sine Wave
- Type: Soldering Assembly DIY Kit
- Application: Electronic Experiment, Circuit Debugging, Teaching Training

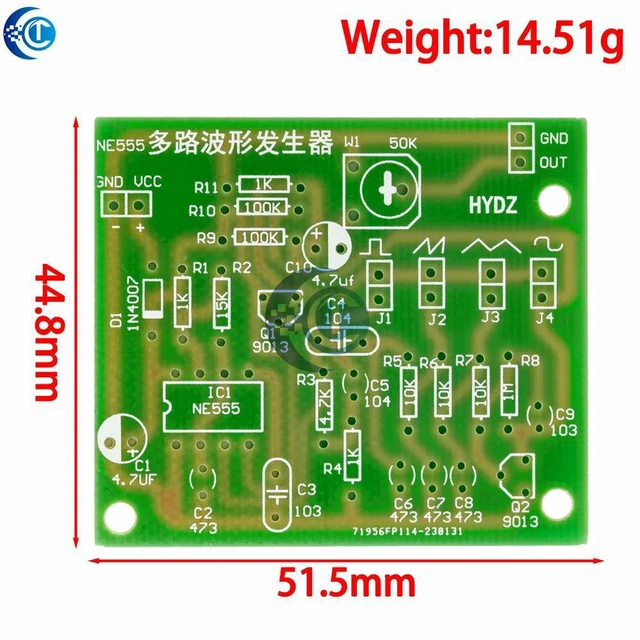

- Dimension: 50 × 45 mm
