AJMRTC 2 Pack INA3221 Triple Channel High-Side Voltage Current Power Monitor Module, I2C Interface, 0-26V Bus Voltage Measurement for Raspberry Pi, MCU Power Detection

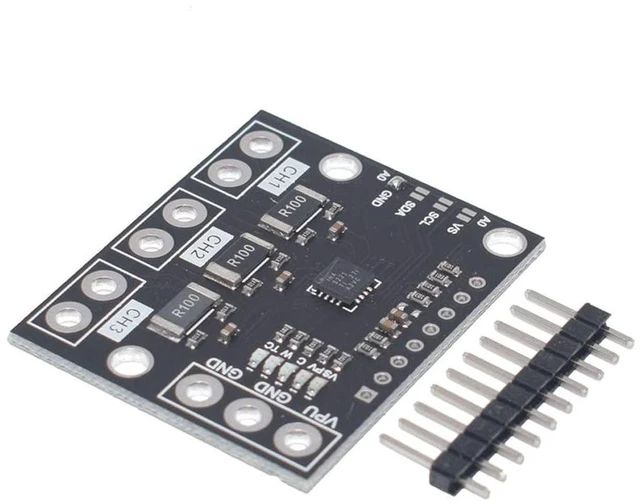

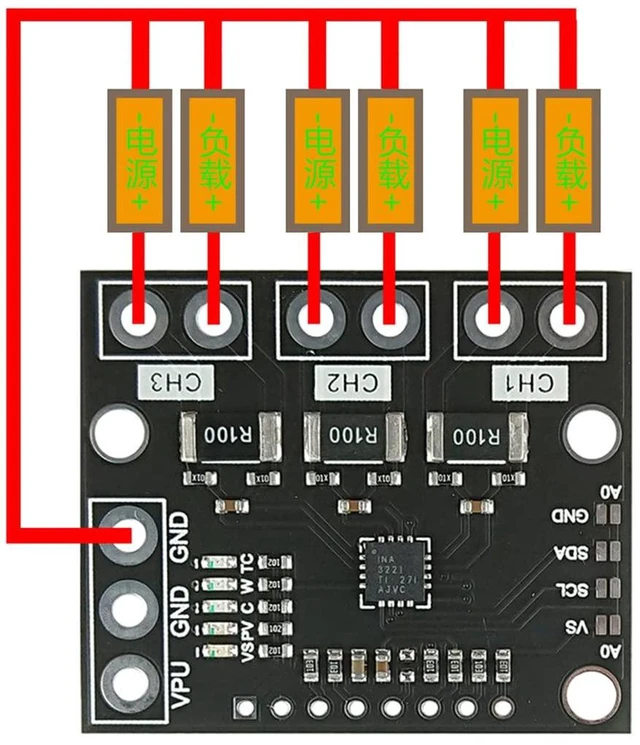

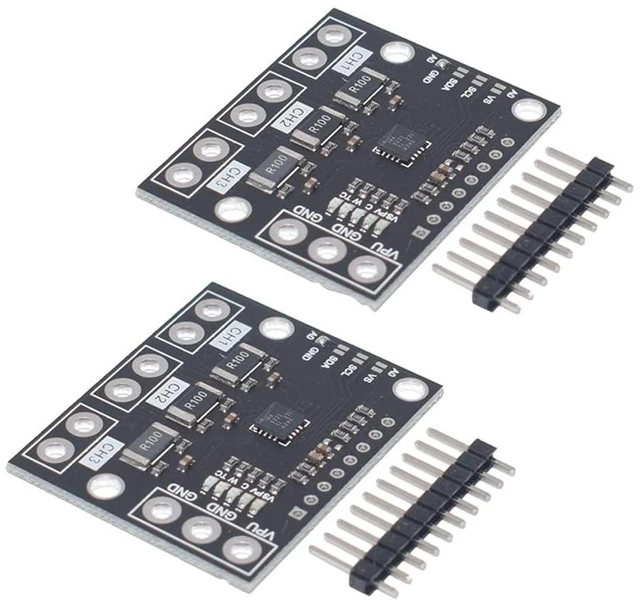

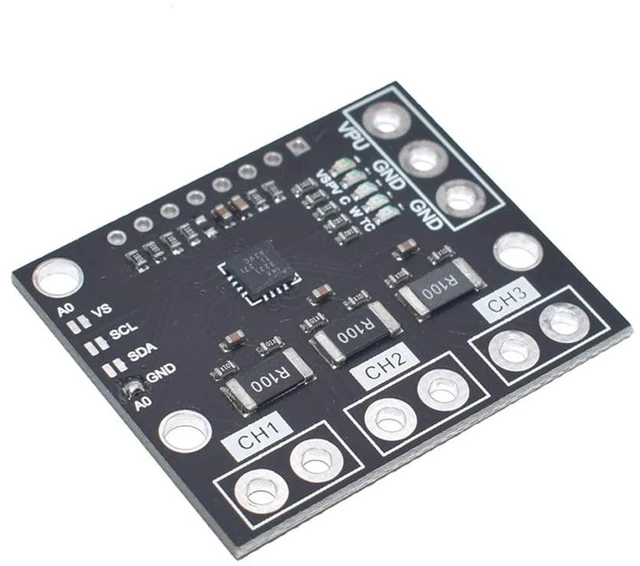

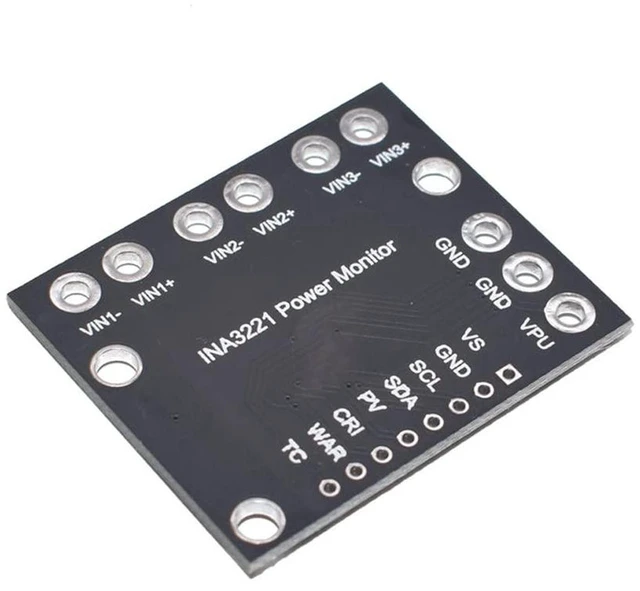

AJMRTC INA3221 three-channel power monitoring module is based on TI INA3221 chip, which is a high-side current and voltage monitor with I2C interface. It can detect bus voltage, shunt voltage, load current and calculate power consumption for three separate power rails simultaneously. The high-side measurement design will not interrupt the ground loop of your circuit. It works for 0V to 26V bus voltage and supports flexible I2C address setting, so multiple modules can be stacked on one I2C bus without conflict. The module comes with precision sampling resistors and pin headers, you just need simple wiring to read power data via the I2C bus. It works well with Arduino, Raspberry Pi, STM32 and other MCUs. This 2-pack set meets the demand of multi-group power monitoring for battery management, robot power system, solar test bench and electronic equipment power consumption analysis.

Specifications:

1. Brand: AJMRTC
2. Chip: INA3221
3. Channel: 3 Channels
4. Measurement Type: High-side voltage, current, power
5. Bus Voltage Range: 0V ~ 26V
6. Communication Interface: I2C
7. Sampling Resistor: Onboard precision shunt
8. Pin Header: Pre-soldered
9. Supported Controller: Raspberry Pi, Arduino, STM32 and other MCUs
10. Application: Battery monitoring, power consumption test, robot power detection, solar energy project
11. Quantity: 2 Pack
12. Feature: Multi-channel synchronous sampling, I2C address configurable
