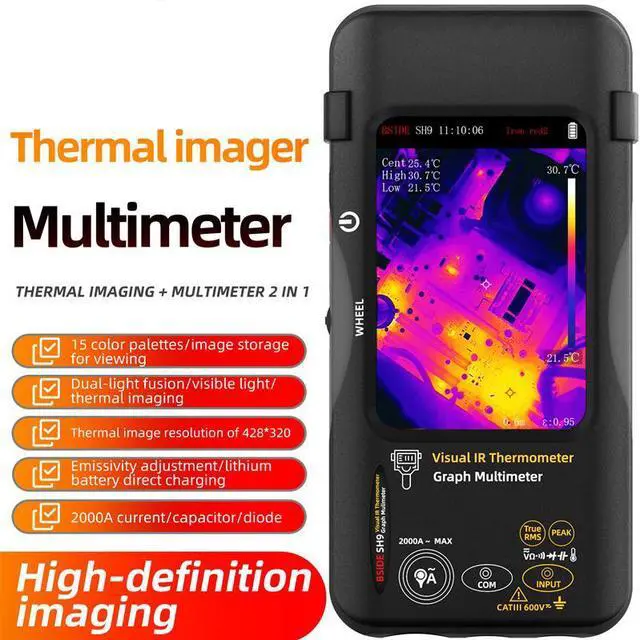

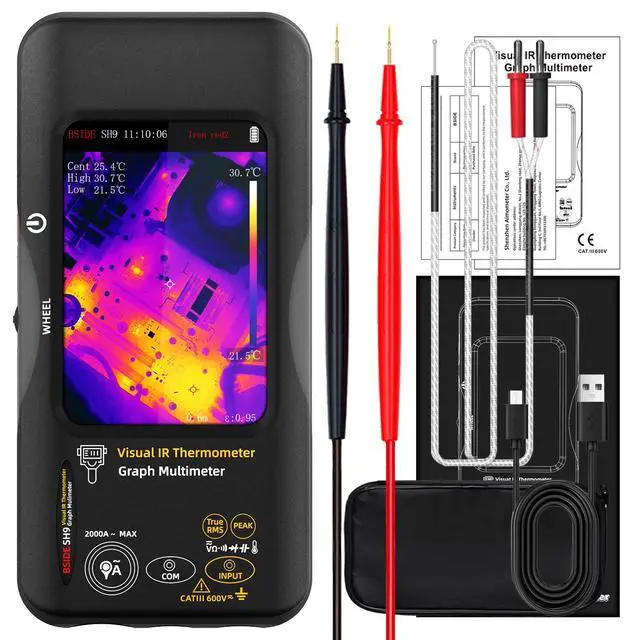

SH9A Thermal Imaging Multimeter 320×428 IR Resolution, 3.98" Touchscreen, 20000 Counts True RMS, AC/DC 10A, for Electrical / Floor Heating / HVAC / PCB Repair

Parameter Details

Sensor Type Vanadium oxide (VOx) micro-radiometric calorimeter

Image Storage Built-in memory card

Response Band 8 ~ 14m

Number of Image Files 15,000

Thermal Image Resolution 320 × 428 pixels

Image Format BMP image

NETD 50 mK (@25°C, F#1.0)

Shock / Vibration GB/T2423.5-2019; GB/T2423.10-2008

Field of View (FOV) 50.0°(H) × 37.2°(V) × 163.6°(D)

Electromagnetic Compatibility (EMC) GB/T17799.2, GB17799.3-2012

Spatial Resolution (IFOV) 8.89 mrad

Focusing Mode No focus adjustment (fixed focus)

Frame Rate 25Hz

Hardware Interface Type-C USB

Preview Mode Thermal imaging, fusion, visible light

Battery Type Rechargeable lithium battery (3.7V / 2500mAh)

Battery Working Duration > 5 hours @ 25°C

Temperature Measurement Range -20°C ~ 550°C

Charging Time < 3 hours @ 25°C

Temperature Measurement Accuracy ±2°C or ±2% of reading (whichever is greater)

Startup Speed Approx. 3 seconds to boot

Temperature Measurement Unit Celsius, Fahrenheit, Kelvin

Automatic Shutdown Off (default) / Optional: 10, 20, 30, 40, 50, 60 minutes

Temperature Measurement Resolution 0.1°C

Operating Temperature -20°C ~ 50°C

Emissivity Adjustable from 0.01 to 1.00

Storage Temperature -40°C ~ 70°C

Temperature Measurement Display Center point, high and low temperature tracking

Storage Humidity 25% ~ 40% RH (non-condensing)

Temperature Alarm Screen font color alarm

Working Humidity 85% RH (non-condensing)

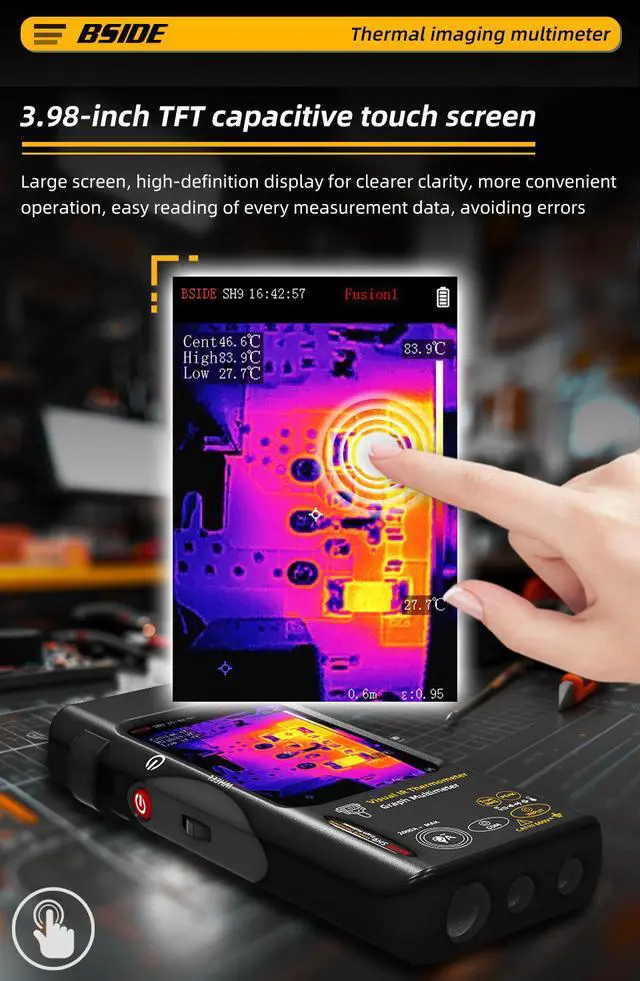

Display Screen 3.98-inch TFT capacitive touch screen

Product Dimensions 169 × 81 × 26.8 mm

Display Resolution 320 × 480

Product Weight 274.3g

Color Palettes Iron Red 2, Black Hot, Fusion 1, Rainbow, Fusion 2, Iron Red 1, Dark Brown, Color 1, Color 2, Ice & Fire, Rain, Green Heat, Red Heat, Deep Blue
