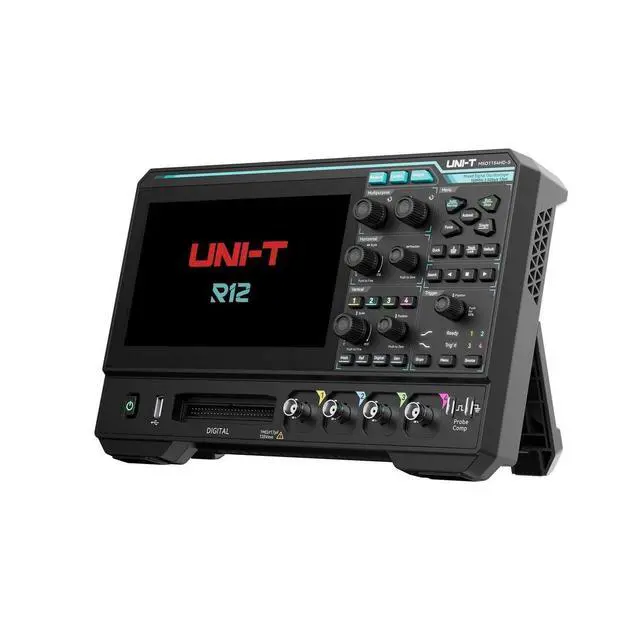

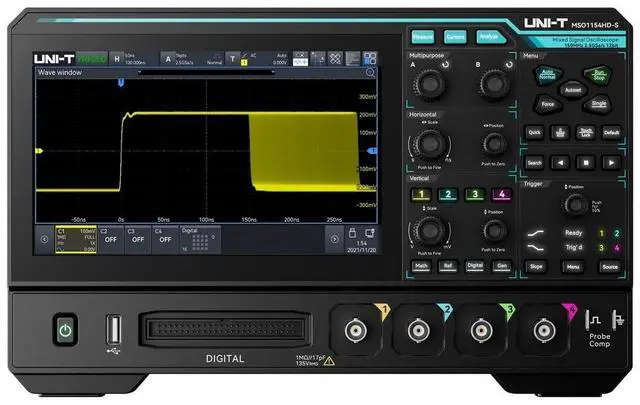

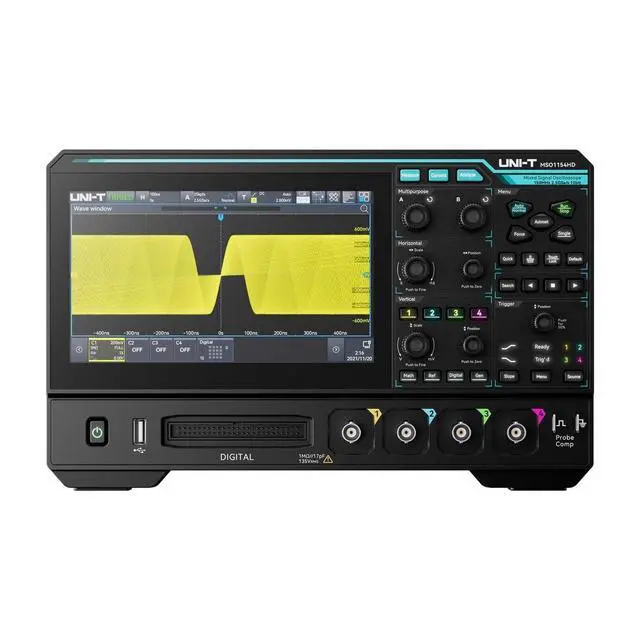

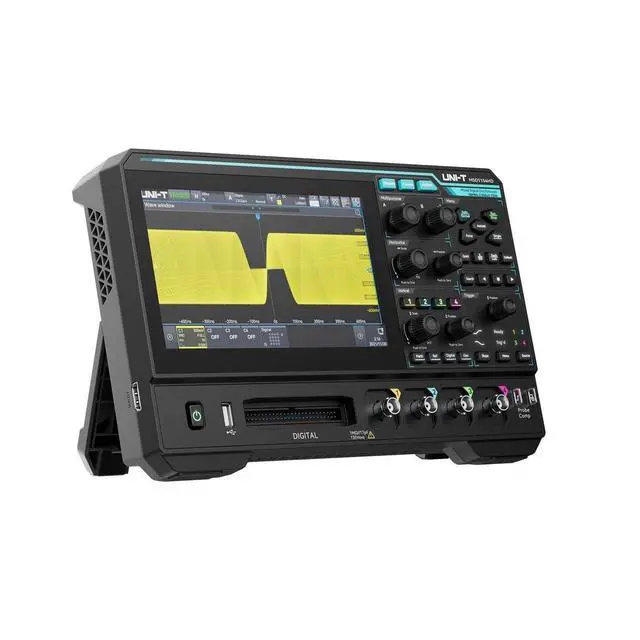

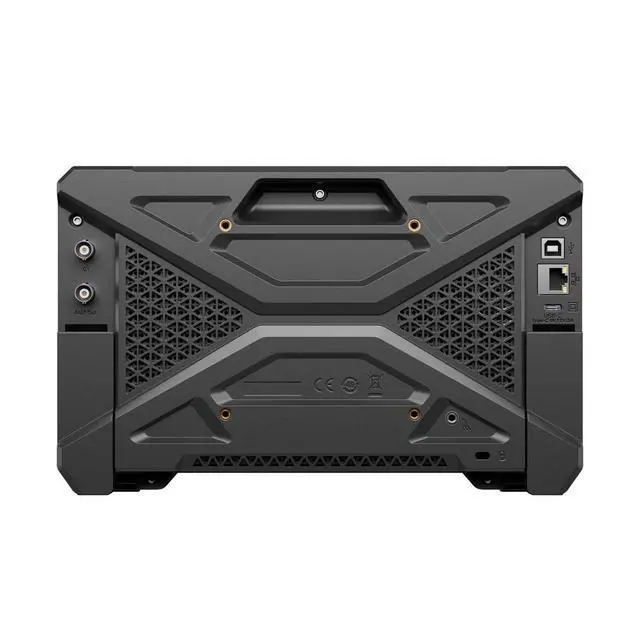

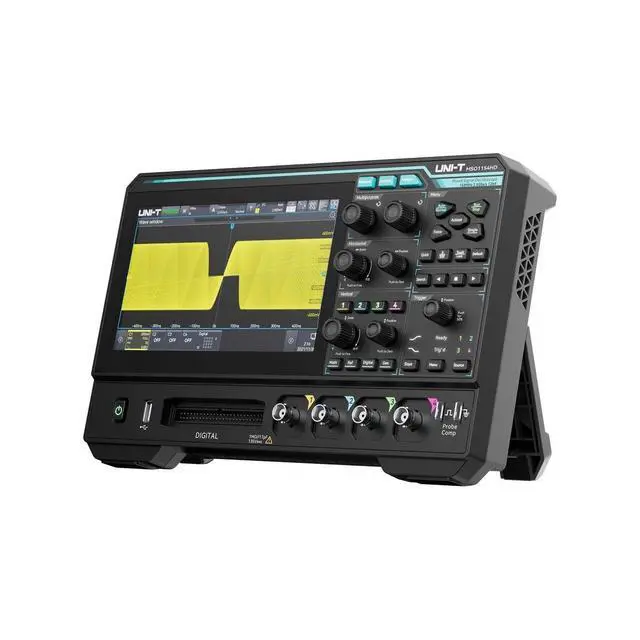

UNI-T MSO1154HD High Resolution Mixed Signal Oscilloscope 4 + 16 Channels 12-Bit 2.5GSa/s 7" Touchscreen 100Mpts 1,000,000wfms/s Ultra Phosphor 3.0 (150MHz 4Ch)
- 5 YEARS LIMITED WARRANTY. HIGH-RESOLUTION DISPLAY: 12-bit Vertical Resolution 4096 quantization levels for accurate waveform analysis; 150 MHz Bandwidth Ideal for general embedded, analog, and digital system debugging; MIXED SIGNAL CAPABILITY: 4+16 Channels Mixed signal capability with 4 analog + 16 digital inputs; Ultra Phosphor 3.0 Up to 1,000,000 wfms/s capture rate and 256 color grading; ULTRA-FAST WAVEFORM CAPTURE: 1,000,000 waveforms per second capture rate with Ultra Phosphor 3.0 technology reveals glitches and transient events, while 2.5GSa/s sampling and 100Mpts memory depth ensure detailed signal acquisition; INTUITIVE TOUCHSCREEN INTERFACE: 7-inch color touchscreen provides easy navigation and control, enabling quick access to measurement functions and settings for efficient workflow in laboratory and field applications; Power Analysis Perform advanced switching loss, ripple, harmonic tools; USB-C Powered PD-compatible for lab or portable setups; COMPREHENSIVE PROTOCOL ANALYSIS: Built-in serial bus decoding supports UART, I2C, SPI, CAN, LIN, CANFD, and Audio protocols, simplifying embedded system development and troubleshooting of digital communication interfaces; 9-in-1 Integration Oscilloscope, logic analyzer, protocol decoder, spectrum analyzer, more; 7 Touchscreen 1024×600 capacitive display with gesture support
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Discover precision measurement with the UNI-T MSO1000HD Mixed Signal Oscilloscope, a powerful instrument combining 4 analog and 16 digital channels with impressive 12-bit vertical resolution. This advanced oscilloscope features a rapid 2.5GS a/s sampling rate and expansive 100Mpts memory depth, ensuring detailed signal capture. The remarkable 1, 000, 000 waveforms per second capture rate with Ultra Phosphor 3.0 technology helps identify even the most elusive signal anomalies. Navigate effortlessly through measurements using the responsive 7-inch touchscreen display with 1024x600 resolution. Supporting comprehensive protocol analysis including UART, I2C, SPI, CAN, LIN, CANFD, and Audio, this versatile instrument serves as a 9-in-1 solution incorporating oscilloscope, logic analyzer, protocol decoder, and spectrum analyzer functionalities.
The package includes essential accessories like power cable, USB cable, probe compensation tool, and documentation. With USB-C power delivery compatibility, this oscilloscope adapts perfectly to both laboratory and field applications, offering professional-grade signal analysis in a substantial unit measuring 18 x 14 x 10 inches.
The package includes essential accessories like power cable, USB cable, probe compensation tool, and documentation. With USB-C power delivery compatibility, this oscilloscope adapts perfectly to both laboratory and field applications, offering professional-grade signal analysis in a substantial unit measuring 18 x 14 x 10 inches.
