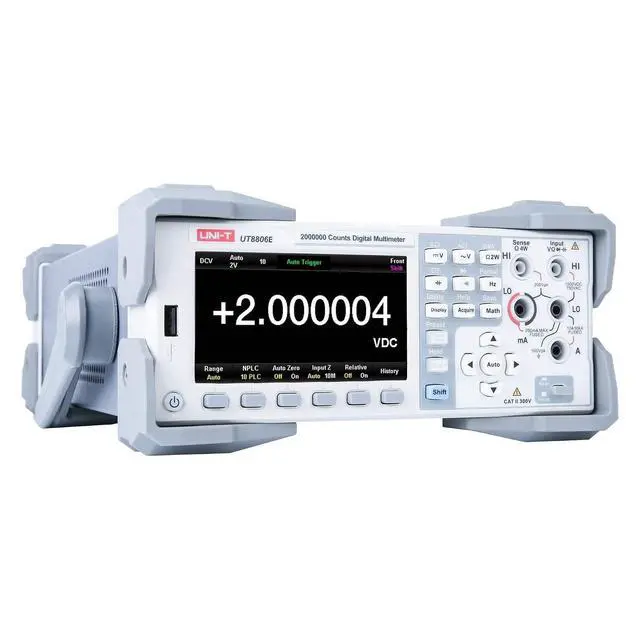

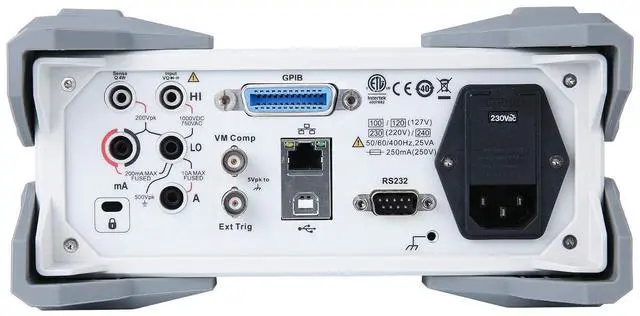

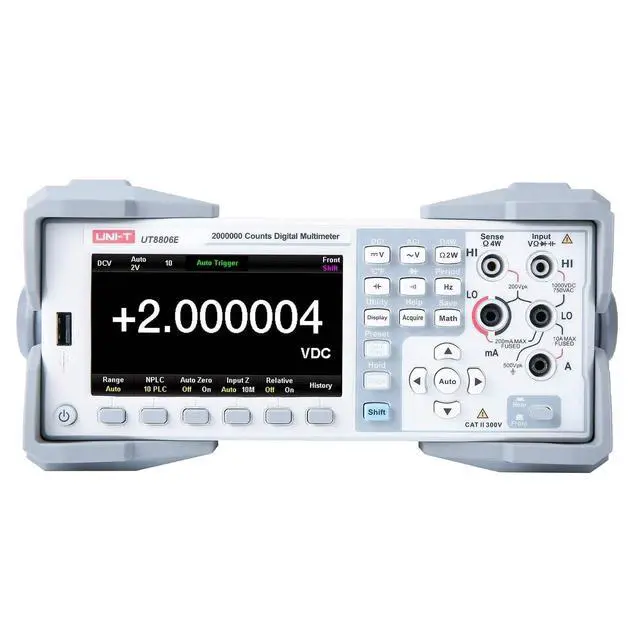

UNI-T UT8806E 6.5 Digit Performance-Series Benchtop Digital Multimeter 1,999,999 Counts Auto-Ranging TRMS Dual Display 4.3 inch Touchscreen 0.0035% Accuracy

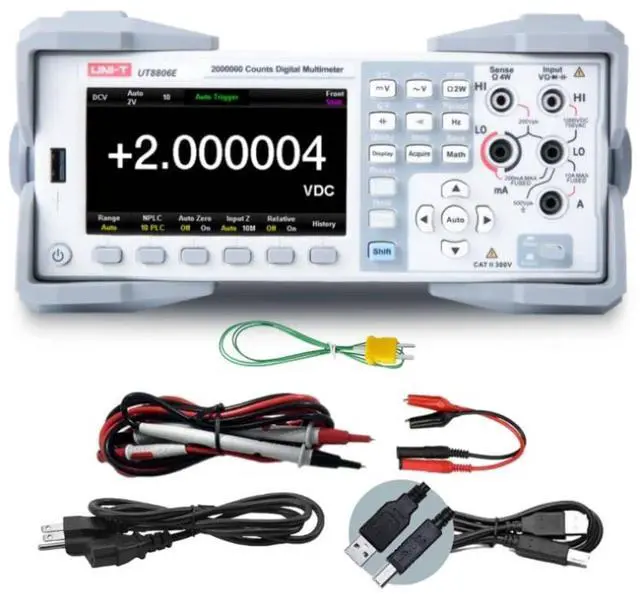

- 6.5 Digit Display, Auto-Ranging, TRMS, 1,999,999 Counts, 0.0035% Accuracy, Dual Display 4.3in TFT. Accessories: USB printing cable, RS232 interface cable, UT-L41 alligator clip short test cable, UT8805 pen, K-type temperature probe, Power cord, English download guide, multi-language safety manual, calibration report.; 6 ½ Display: 1,999,999 count, 4.3 inch TFT LCD display, Hold measurement function. Support users to view the measured data in four ways: Number, Bar Graph, Trend Graph, and Histogram.; Dual display function: When measuring the voltage or current of an AC signal, you can also measure its frequency. At this time, the voltage or current is displayed, and the frequency value is also displayed.; Mathematical operations and reading statistics: Statistics, limits, dB, relative operations and dBm. Math operation function is suitable for voltage, current, resistance, capacitance, frequency/period and temperature measurement.; Pass/Fail, maximum value/minimum value/average value/relative value measurement, etc., 10K reading history data record, 32GB Nand Flash total capacity.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Experience accuracy and efficiency with the UNI-T UT8806E Desktop Digital Multimeter. UNI-T UT8806E Counts Are you looking for unparalleled precision and accuracy in your measurements? Discover the UT8806E, a 6½ digit dual-display digital multimeter designed to meet your needs for multifunctionality, high precision, and automated measurements. Explore a groundbreaking standard in electrical measurement tools with the UT8806E, an auto-ranging, true RMS desktop digital multimeter. Find out how it can transform your engineering projects.
UNI-T UT8806E Key
Reading: 2000000
DC voltage measurement ranges: 200mV/2V/20V/200V/1000V
DC current measurement ranges: 2A/20A/200A/2mA/20mA/200mA/2A/10A
DC voltage accuracy: 0.0035 %+ 0.0006 %
AC voltage measurement ranges (RMS): 200mV/2V/20V/200V/750V
AC current measurement ranges (RMS): 200A/2mA/20mA/200mA/2A/10A Resistance measurement ranges (2-wire, 4-wire): 20/200/2k/20k/200k/2M/10m/100/1G
Capacitance measurement ranges: 2nF/20nF/200nF/2F/200F/2mF/20mF/100mF
Conduction Range: 2000 1mA
Diode Range: 4V 1mA
Frequency measurement: 3Hz to 1MHz
Data Storage: 10k 32Gb Nand
Flash Temperature measurement: Support both thermocouple & thermal resistance sensor
Maximum reading rate: 10k rdgs/s
Protocol: SCPI
Key Features: UNI-T UT8806E Dual Display Various Mathematical
Operation Functions: The UT8806E multimeter facilitate enhanced measurement analysis through the implementation of automated data processing.
Engineering Use Case: In telecommunications, this multimeter can analyz
UNI-T UT8806E Key
Specifications
: MaxReading: 2000000
DC voltage measurement ranges: 200mV/2V/20V/200V/1000V
DC current measurement ranges: 2A/20A/200A/2mA/20mA/200mA/2A/10A
DC voltage accuracy: 0.0035 %+ 0.0006 %
AC voltage measurement ranges (RMS): 200mV/2V/20V/200V/750V
AC current measurement ranges (RMS): 200A/2mA/20mA/200mA/2A/10A Resistance measurement ranges (2-wire, 4-wire): 20/200/2k/20k/200k/2M/10m/100/1G
Capacitance measurement ranges: 2nF/20nF/200nF/2F/200F/2mF/20mF/100mF
Conduction Range: 2000 1mA
Diode Range: 4V 1mA
Frequency measurement: 3Hz to 1MHz
Data Storage: 10k 32Gb Nand
Flash Temperature measurement: Support both thermocouple & thermal resistance sensor
Maximum reading rate: 10k rdgs/s
Protocol: SCPI
Key Features: UNI-T UT8806E Dual Display Various Mathematical
Operation Functions: The UT8806E multimeter facilitate enhanced measurement analysis through the implementation of automated data processing.
Engineering Use Case: In telecommunications, this multimeter can analyz
