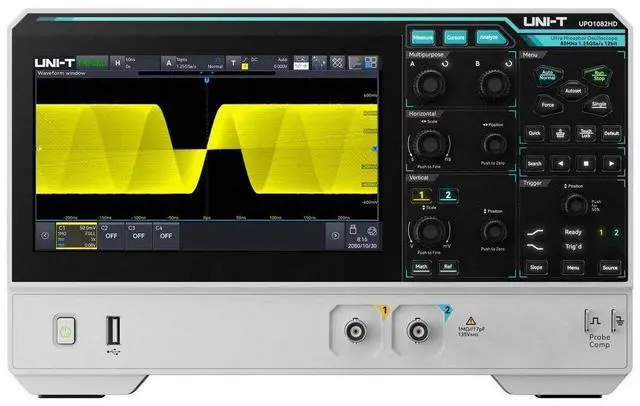

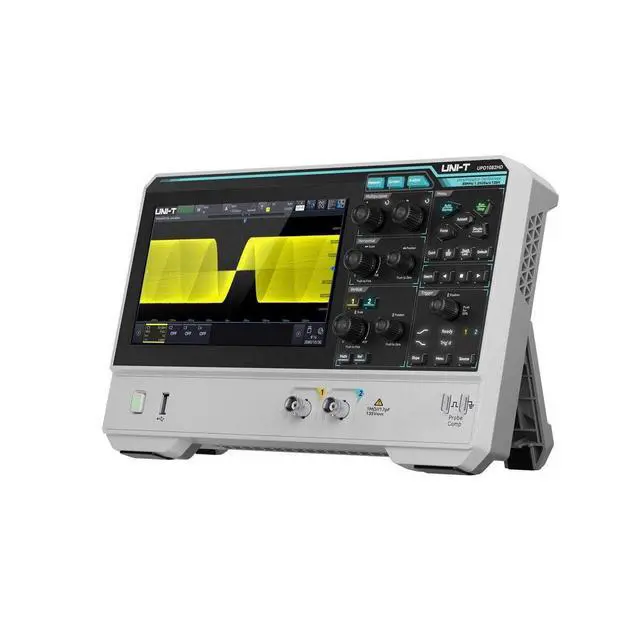

UNI-T UPO1082HD 80 MHz 2Ch 12-Bit Digital Storage Oscilloscope 181100200144X

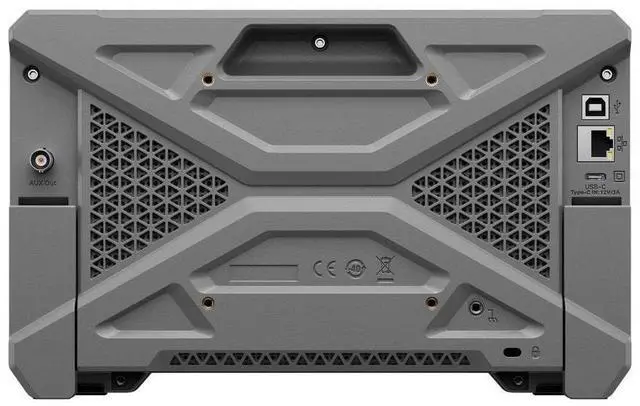

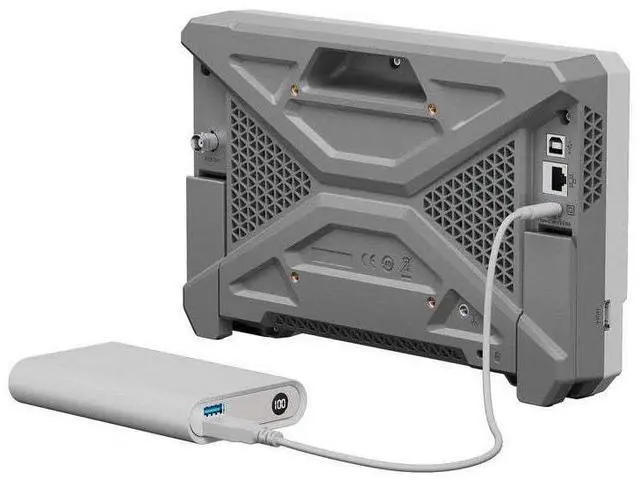

Overview The UPO1082HD is an 80 MHz, 2-channel digital oscilloscope built around UNI-T's R12 12-bit ADC architecture, with 1.25 GSa/s real-time sample rate, 100 Mpts memory depth, and a 7-inch capacitive touchscreen. Native 12-bit resolution gives 4, 096 vertical levels 16× the detail of an 8-bit instrument enough to resolve power-supply ripple, sensor outputs, and small AC signals riding on DC offsets where 8-bit scopes lose them in the quantization floor. USB-C power-bank operation off any 12V/3A PD source, a 1.56 kg chassis, and a VESA 100×100 mm mounting pattern make the UPO1082HD a real bench scope that fits where a bench scope usually doesn't service vehicles, field cabinets, teaching benches with no rear AC outlet.

Key Features R12 Real 12-Bit Resolution Native 12-bit ADC with 4, 096 vertical levels at full bandwidth and full sample rate, no ERES averaging required. 80 MHz Bandwidth, 2 Channels 1.25 GSa/s real-time sample rate, 4 ns calculated rise time. 100 Mpts Memory Depth Capture full switching cycles and long protocol sequences without trading sample rate for memory. Ultra Phosphor 3.0 Display Up to 500, 000 wfms/s waveform capture rate with 256-level intensity grading, fast enough to catch the intermittent events that slower oscilloscopes spend hours missing. 5 Protocol Decoders Standard RS-232/UART, I²C, SPI, CAN, LIN included; no optional licenses.

Built-In Power Analysis 12 measurement functions including switching loss, SOA, harmonics, ripple, and startup time. 4-Digit DVM and 6-Digit Frequency Counter Hardware-accelerated, parallel to scope acquisition. Enhanced FFT to 1 Mpts Spectrum view with waterfall, four traces, and marker list. 56 Automated Measurements Statistics, histograms, and tre
