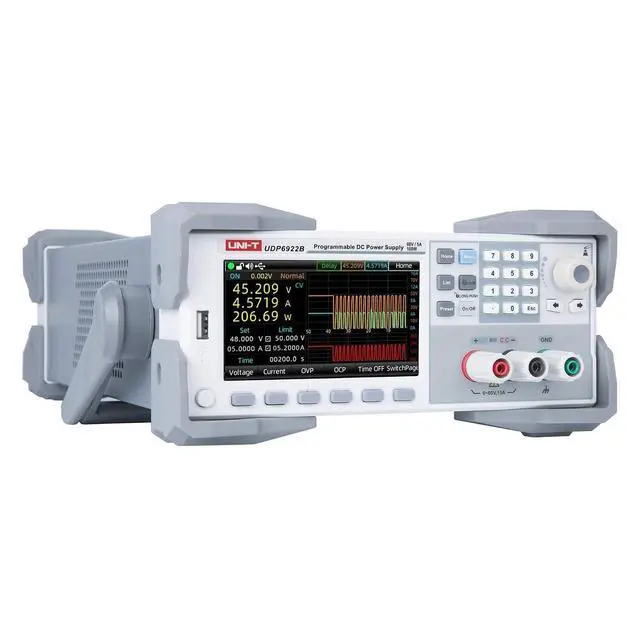

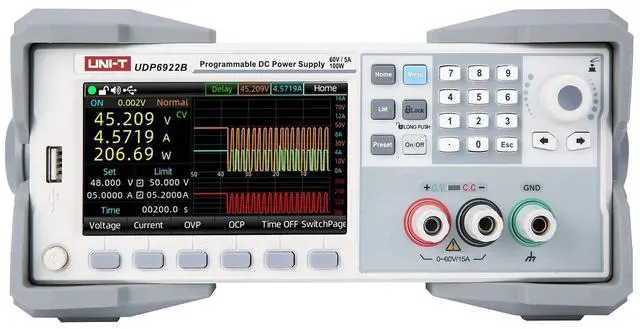

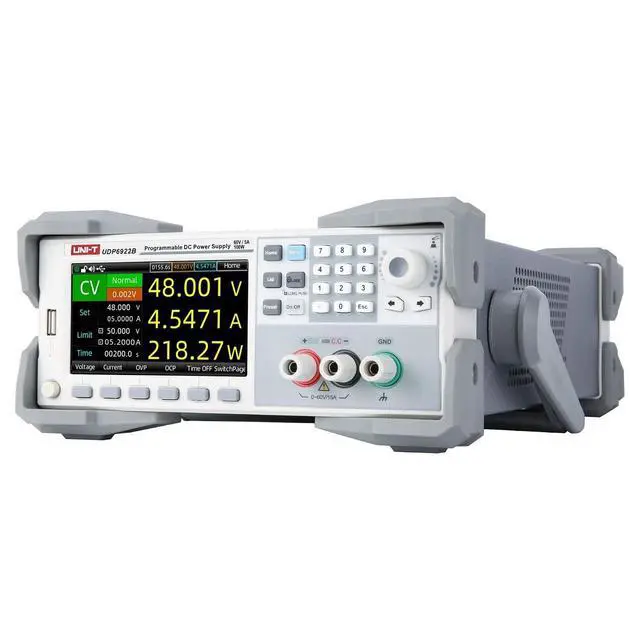

UNI-T UDP6922B 100W 60V/5A DC Switching Power Supply
- DC POWER SUPPLY: 1-channel switching supply delivering 100W total power; efficient switching topology for high-power applications in compact form factor; PRECISE OUTPUT CONTROL: Adjustable voltage and current with fine resolution; over-voltage and over-current protection safeguard your device under test; PROGRAMMABLE OPERATION: List mode and sequence programming for automated test routines; store and recall multiple output configurations for efficient workflow; REMOTE CONTROL: USB, LAN, and RS-232 interfaces for remote programming and SCPI automation; front-panel display shows set and actual output values; BENCH-READY: Ships with power cord and documentation; 5-year warranty with product registration (3+2 years); compact benchtop form factor
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
UNI-T UDP6922B DC Switching Power Supply The UNI-T UDP6900 series is a single-output programmable DC switching power supply designed to provide flexible voltage and current outputs within its rated power. This versatility allows it to handle both high-voltage/low-current and high-current/low-voltage tests with a single unit, significantly reducing costs and saving space. For example, the UDP6942B model (60V/15A/360W) can be configured for various combinations, such as 60V/6A/360W, 40V/9A/360W, or 24V/15A/360W, making it adaptable to a wide range of testing needs. Equipped with RS232, RS485, USB, and analog interfaces, the UNI-T UDP6900 series supports SCPI protocol for remote control and PLC integration, enabling the creation of intelligent test platforms.
It is ideal for applications in DC-DC power module testing, battery charging, sensor evaluation, and other related fields, offering a powerful and flexible solution for engineers.
Key Features DC Voltage: 060V
DC Current: 05A
DC Power: 100W
Type: Switching
Resolution: 1mV/ 0.1 mA
Channels: One
Class leading performance: High accuracy and resolution with low ripple and noise
Multiple protection: OVP (Over Voltage Protection) and OCP (Over
Current Protection) Easy to use: Voltage and current can be adjusted by the numeric keyboard and the encoder knob
Programmable: Control the output of the voltage and current. Directly set your test scenario or use SCPI, Multi-SCPI, or Modbus RTU protocols
Interfaces: RS232 & RS485 communication interfaces. LAN port supports Web remote control and VXI bus. USB Host and
Device Rack mountable: Includes both front and rear panel connections
It is ideal for applications in DC-DC power module testing, battery charging, sensor evaluation, and other related fields, offering a powerful and flexible solution for engineers.
Key Features DC Voltage: 060V
DC Current: 05A
DC Power: 100W
Type: Switching
Resolution: 1mV/ 0.1 mA
Channels: One
Class leading performance: High accuracy and resolution with low ripple and noise
Multiple protection: OVP (Over Voltage Protection) and OCP (Over
Current Protection) Easy to use: Voltage and current can be adjusted by the numeric keyboard and the encoder knob
Programmable: Control the output of the voltage and current. Directly set your test scenario or use SCPI, Multi-SCPI, or Modbus RTU protocols
Interfaces: RS232 & RS485 communication interfaces. LAN port supports Web remote control and VXI bus. USB Host and
Device Rack mountable: Includes both front and rear panel connections
