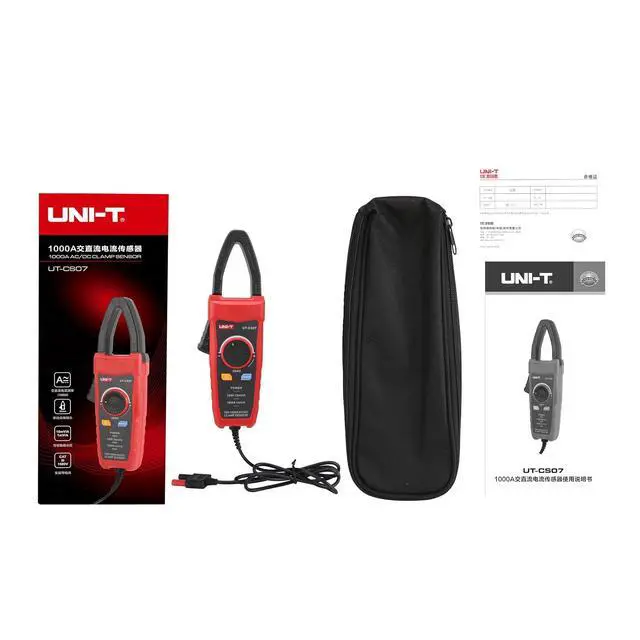

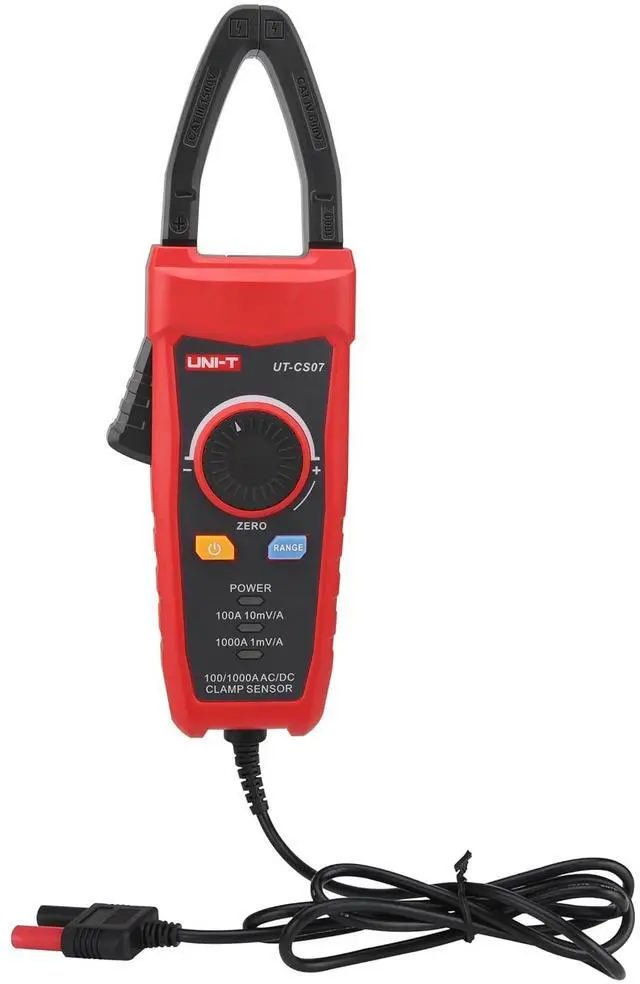

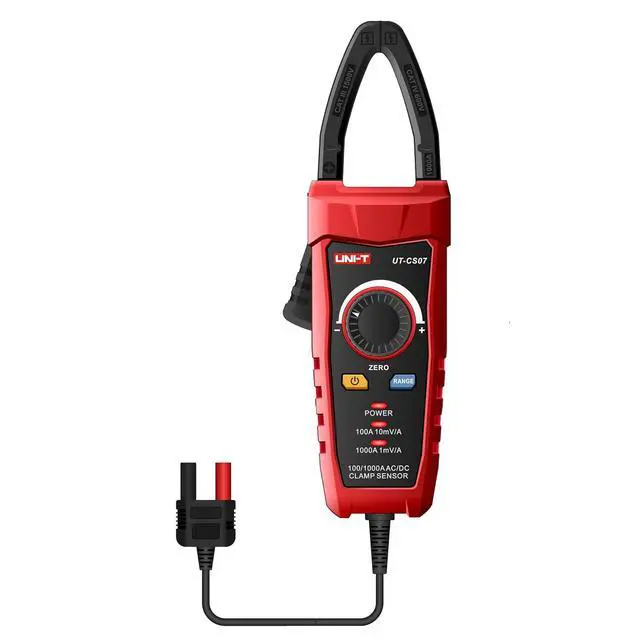

UT-CS07 1000A AC/DC Current Probe for DMMs
- UT197 Industrial Digital Multimeter: 600000 digits counting display, five and a half digits high precision display (DC voltage grade only) high resolution, can display 5 digits after the decimal point, accurate measurement of DC voltage signals.; Drop-proof multimeter: 5 metres drop-proof, rugged, accidental drops to ensure measurement accuracy and functional integrity. ip67 protection level: class 6 dustproof, class 7 waterproof, harsh environments can still be used normally.; Operating temperature: UT197 industrial digital multimeter working temperature range, minus 40 can work, easy to withstand extreme environments, working temperature range: -40 -55 , from 20 to -40 when the measurement can last 20 minutes.; UT-CS07 AC and DC current sensor: pointed nose pliers design, for distribution of dense wiring is not easy to detect the use of current and other scenarios, can expand the current measurement 1000A; Application range: 1000V AC and DC voltage measurement, can meet the power engineering construction and maintenance, power equipment maintenance, petrochemical smelting, engineers professional measurement, HVAC, new energy and environmental protection, plant maintenance, laboratory professional application areas. DC voltage gear maximum display digits 600000.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

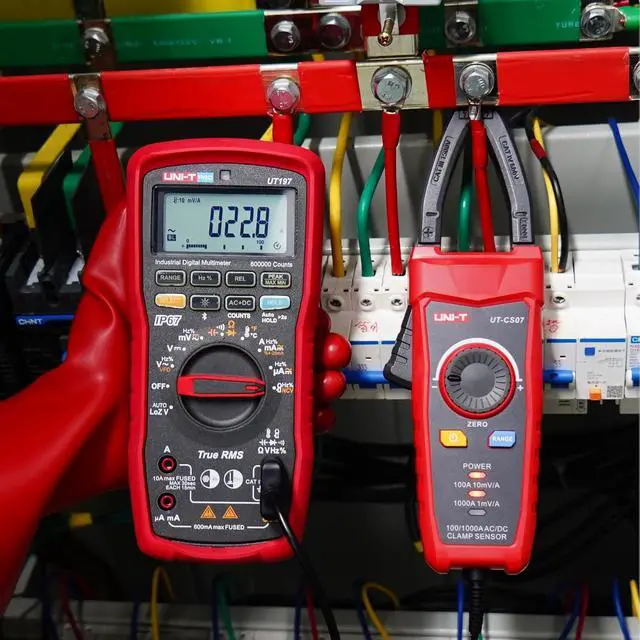

UT197 Industrial Digital Multimeter The UT197 is a high precision true RMS handheld digital multimeter with 600, 000 count display. It has IP67 protection, can endure 5m drops, and operates in 40°C~55°C, suiting harsh outdoor conditions. Its built in VFD anti interference startup mode filters out carrier frequency and distorted voltage interferences for stable inverter measurements. The 1000A AC/DC current measurement (UT CS07) with Bluetooth enables result recording via UNI T SmartTest APP, generating graphs and tables. Certified to CAT IV 1000V safety level (CE, cETLus), its widely used in power construction, equipment maintenance, petrochemical, engineering, HVAC, new energy, factory, and laboratory applications.
UT197 Industrial Digital Multimeter Features
1. True RMS measurement 2.
AC/DC voltage: 1000V 3.
AC/DC current: 10A
4.
Display count: 600, 000 & switchable; 9, 999 (Hz) 5. 12kV pulse protection & anti-EMC interference 6. IP67 & 5m Drop Protection
7.
Overvoltage category: CAT IV 1000V
8.
Working environment: -40 °C ~ 55 °C
9. Input terminal visible alarm
10. Automatically backlight
11. Bluetooth function
12. Support UT-CS06A/UT-CS09D current sensor 13.
Certifications (UT197): CE, cETLus, RoHS Characteristics of UT-CS07 AC/DC
Current Sensor: 35mm narrow edged pointed nose pliers, Can be directly paired with the current clamp settings of multimeters such as UT117C, UT196, UT139C, UT197, UT197PV, etc. Can measure 1000A AC/DC current.
Frequency response range: 45Hz-400Hz
Measurement result conversion: 100A gear (10mV corresponds to 1A) 1000A gear (1mV corresponds to 1A) Equipped with zero adjustment function (adjustable by rotating the button) AC/DC 1000A input protection Safety level CATIII 1500V/CAT IV 600V
UT197 Industrial Digital Multimeter Features
1. True RMS measurement 2.
AC/DC voltage: 1000V 3.
AC/DC current: 10A
4.
Display count: 600, 000 & switchable; 9, 999 (Hz) 5. 12kV pulse protection & anti-EMC interference 6. IP67 & 5m Drop Protection
7.
Overvoltage category: CAT IV 1000V
8.
Working environment: -40 °C ~ 55 °C
9. Input terminal visible alarm
10. Automatically backlight
11. Bluetooth function
12. Support UT-CS06A/UT-CS09D current sensor 13.
Certifications (UT197): CE, cETLus, RoHS Characteristics of UT-CS07 AC/DC
Current Sensor: 35mm narrow edged pointed nose pliers, Can be directly paired with the current clamp settings of multimeters such as UT117C, UT196, UT139C, UT197, UT197PV, etc. Can measure 1000A AC/DC current.
Frequency response range: 45Hz-400Hz
Measurement result conversion: 100A gear (10mV corresponds to 1A) 1000A gear (1mV corresponds to 1A) Equipped with zero adjustment function (adjustable by rotating the button) AC/DC 1000A input protection Safety level CATIII 1500V/CAT IV 600V
