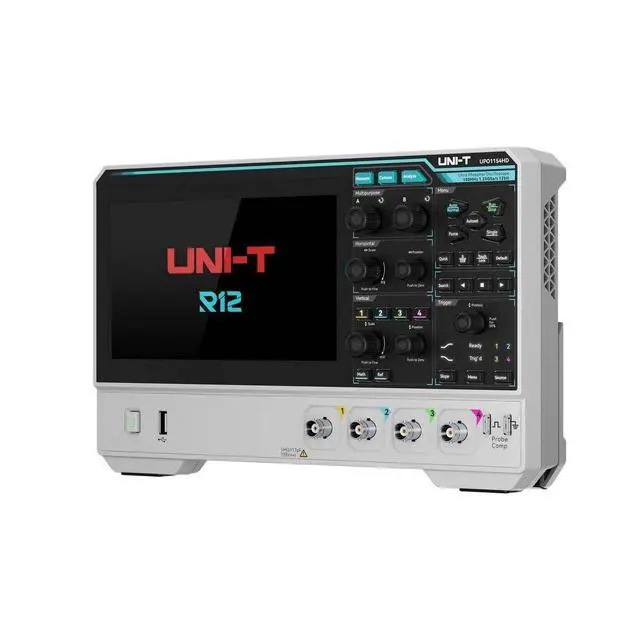

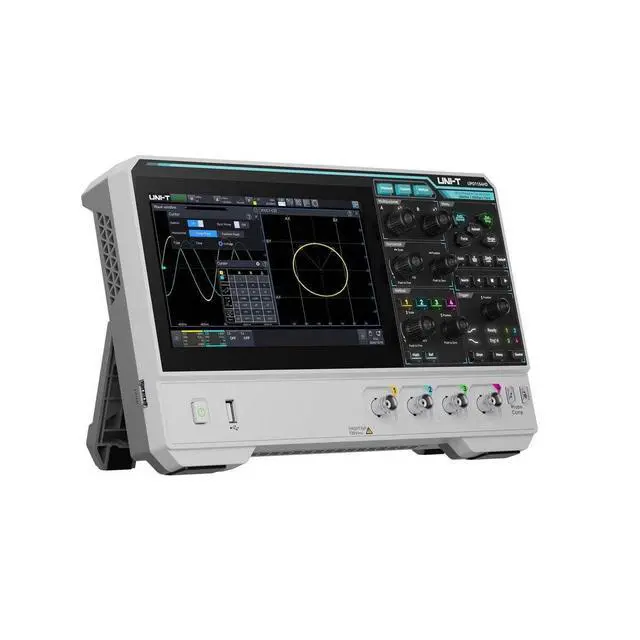

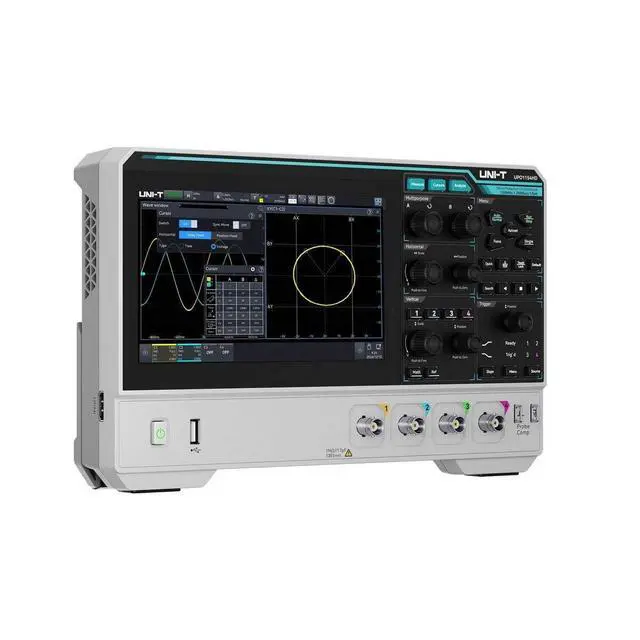

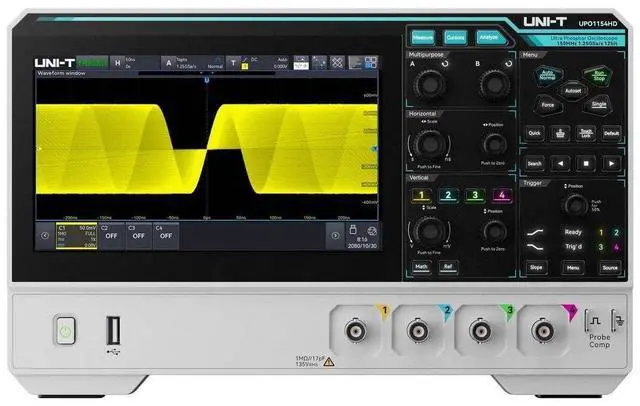

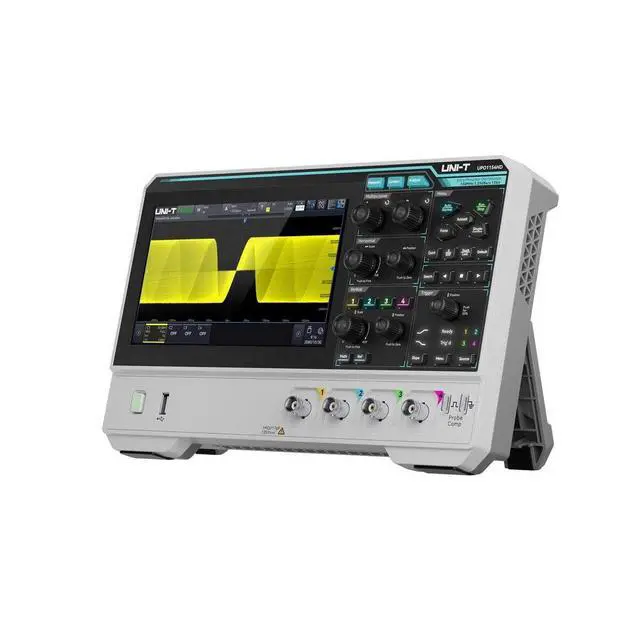

UNI-T UPO1154HD 150 MHz 4Ch 12-Bit Digital Storage Oscilloscope

Overview The UPO1154HD is a 150 MHz, 4-channel digital oscilloscope built around UNI-T's R12 12-bit ADC architecture, with 1.25 GSa/s real-time sample rate, 100 Mpts memory depth, and a 7-inch capacitive touchscreen. Native 12-bit resolution gives 4, 096 vertical levels 16× the detail of an 8-bit instrument enough to resolve power-supply ripple, sensor outputs, and small AC signals riding on DC offsets where 8-bit scopes lose them in the quantization floor. At 150 MHz with a 2.2 ns rise time and four channels, the UPO1154HD resolves the harmonics, switching transients, and gate-drive interactions that define modern power-electronics design GaN/SiC half-bridge characterization, multi-rail sequence validation, and EMI source identification on the same bench.

USB-C power-bank operation off any 12V/3A PD source and VESA 100×100 mm mounting extend the scope to field characterization without an AC outlet. Key Features R12 Real 12-Bit Resolution Native 12-bit ADC with 4, 096 vertical levels at full bandwidth and full sample rate, no ERES averaging required. 150 MHz Bandwidth, 4 Channels 1.25 GSa/s real-time sample rate (single channel), 2.2 ns calculated rise time. 100 Mpts Memory Depth Capture full switching cycles and long protocol sequences without trading sample rate for memory. Ultra Phosphor 3.0 Display Up to 500, 000 wfms/s waveform capture rate with 256-level intensity grading, fast enough to catch the intermittent events that slower oscilloscopes spend hours missing.

5 Protocol Decoders Standard RS-232/UART, I²C, SPI, CAN, LIN included; no optional licenses. Built-In Power Analysis 12 measurement functions including switching loss, SOA, harmonics, ripple, and startup time. 4-Digit DVM and 6-Digit Frequency Counter Hardware-accelerated, parallel to scope acqu
