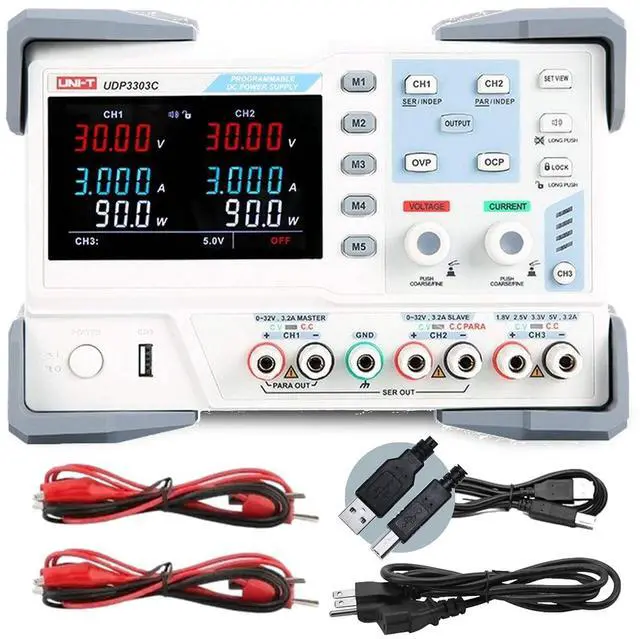

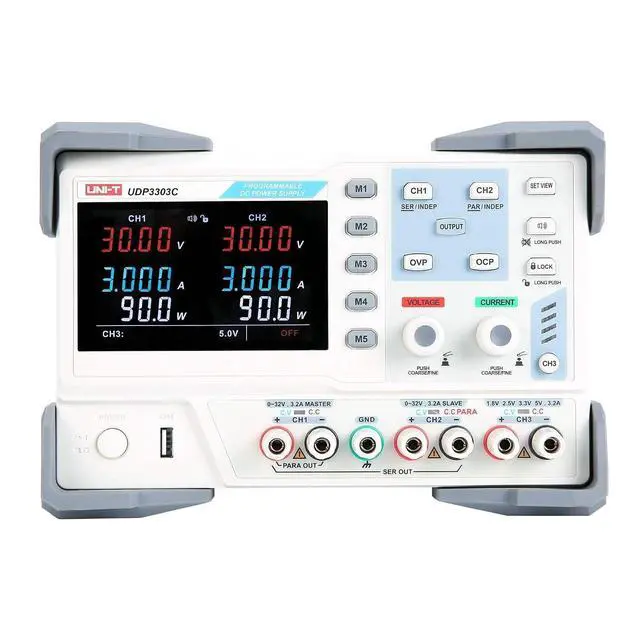

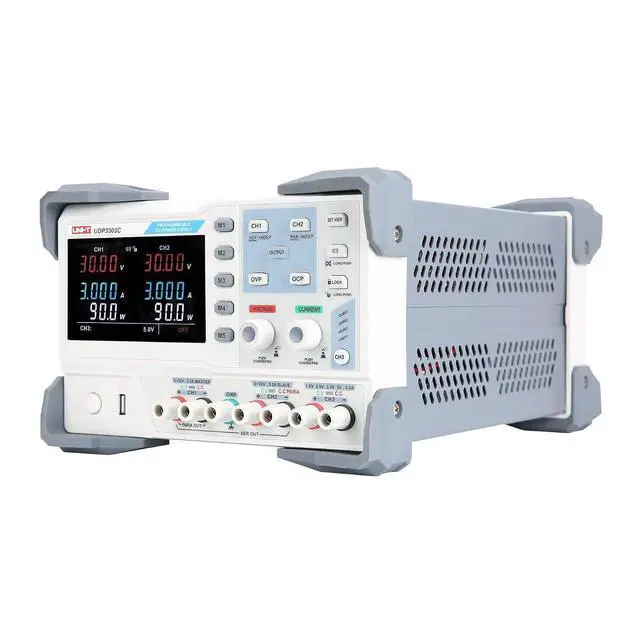

UNI-T UDP3303C 3Ch Classic-Series Programmable Linear DC Power Supply

The UDP3000 Series Programmable DC power supply is a cost-effective program control DC power supply with outstanding performance, reliable output and clear interface. The UDP3303C DC power supply has three independent outputs. Two of them are adjustable outputs of 30V/3A, the other one is a fixed selectable output of 1.8V / 2.5V / 3.3V /5V/3A (fine adjustable). With the constant voltage (CV) and constant current (CC) modes, short circuit and overvoltage protection features, the instrument can perfectly meet various test requirements. 3 CH outputsHigh precision Display 3 independent outputs, 4-digit voltage and current high-precision display: 10mV/1mA Five sets of settings to save and recall Five groups of M1M5 settings are saved and recalled, long press to store and short press to recall, making the test work efficient and convenient. Buzzer switch and key lock function, shutdown memory function, SET VIEW function
Buzzer switch: switch the buzzer according to the working environment
Key lock function: prevent accidental touch and wrong setting during normal working process
Shutdown memory function: restore the last saved setting value next time the machine is turned on

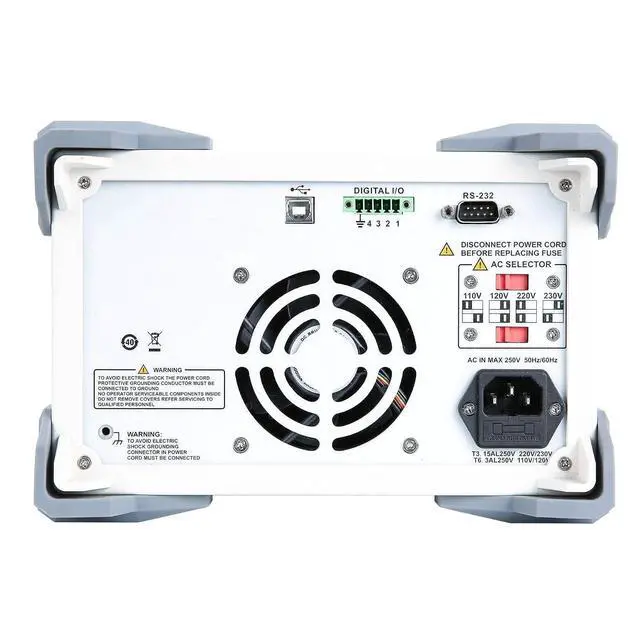

SET VIEW function: call preset value with one key Remote control DIGITAL I/O interface The remote control power supply CH1/CH2 channels can be output and closed through DIGITAL I/O terminals
