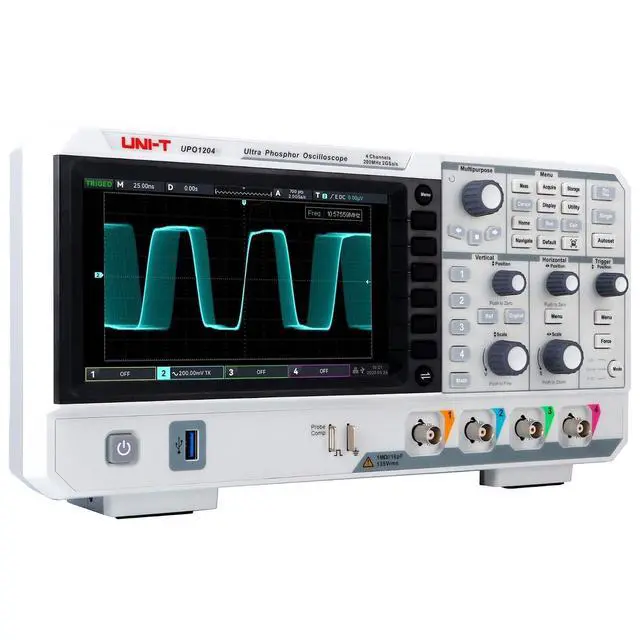

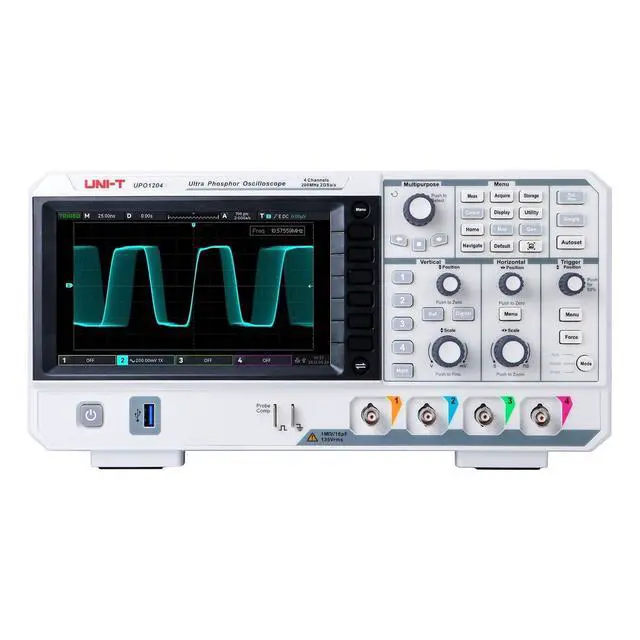

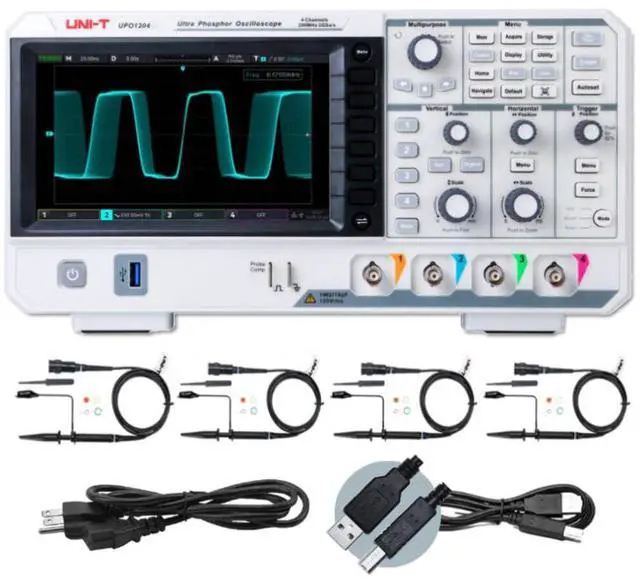

UNI-T UPO1204 DSO Ultra Phosphor Digital Oscilloscope 200MHz 4 Channels 2 GSa/s 56 Mpts Memory Depth 500,000 wfm/s 7 Inch Display Fast Acquire 1 Mpts FFT Points

Product description Uni-Trend Technology Inc. UNI-T manufactures innovative, reliable, safe to use, and user friendly T&M products. With products meeting industry standards, UNI-T is able to fully satisfy product demands from around the world. Technical Specification Product Model Numder UPO1204 Number of Analog Channel 4 Bandwidth 200MHz Maximum Sampling Rate 2GSa/s Maximum Memory / Storage Depth 56Mpts Waveform Capture Rate 500, 000 wfms/s Vertical Scale 500V/div-20 V/div Low Noise Floor <100Vrms Hardware Waveform Recording 120, 000 Frames Hardware Frequency Meter 7-bit Display Screen 7-Inch LCD Display Enhanced FFT Function 1M Points Number of Auto.

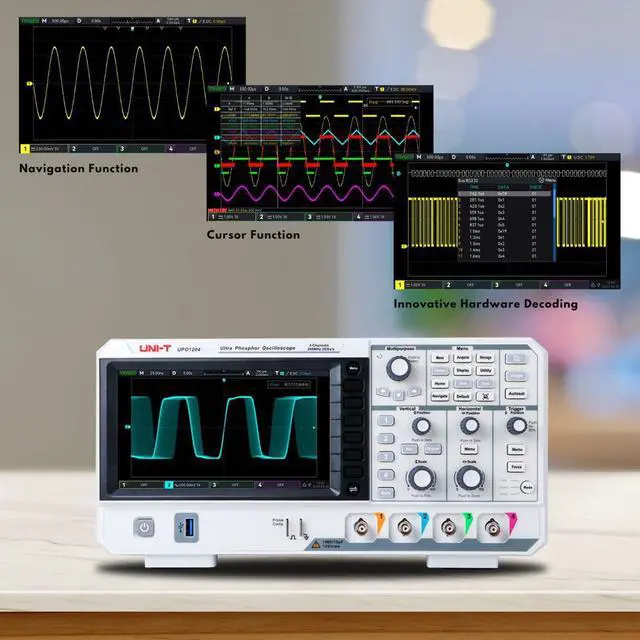

Measurement 36 UPO1000 Series Cursor Functions When cursor is turned on, the parameters of the waveform in the cursor area can be measured. The cursor function can measure the time and voltage of CH1, CH2, CH3, CH4, MATH, REF at the same time. UPO1000 Series Sampling Points UPO1000 series has 1Mpts FFT sampling points. It can also set the practical functions of spectrum analyzer such as frequency range, detection mode and spectrum marking. It is convenient for you to analyze the signal in frequency domain on oscilloscope. UPO1000 Series Decoding Innovative hardware decoding realizes real-time decoding.

The decoding speed with deep storage 56Mpts realizes the millisecond level, which solves the problem of long-time waiting for viewing decoded data. UPO1054 UPO1104 UPO1204 UPO1102CS UPO1202CS Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.5 out of 5 stars 2 5.0 out of 5 stars 2 4.6 out of 5 stars 5 4.6 out of 5 stars 3 Price $ 311.20 $311. 20 $ 407.20 $407. 20 $ 553.60 $553. 60 $ 275.00 $275. 00 $ 339.00 $339. 00 Analog Channel 4 4 4 2 2 Bandwidth 50MHz 100MHz 200MHz 100MHz 200MHz Memory Depth 56Mpts 56Mpts 56Mpts 56Mpts 56Mpts Waveform Capture Rate 500, 000 wfms/s 500, 000 wfms/s 500, 000 wfms/s 500, 000 wfms/s 500, 000 wfms/s Maximum Sampling Rate 2GSa/s 2GSa/s 2GSa/s 1GSa/s 1GSa/s Vertical Scale at 1M 500V/div to 20V/div 500V/div to 20V/div 500V/div to 20V/div 1V/div to 20V/div 1V/div to 20V/div Included Bus Protocols RS232, UART, I2C, SPI RS232, UART, I2C, SPI RS232, UART, I2C, SPI RS232, UART, I2C, SPI, CAN, LIN RS232, UART, I2C, SPI, CAN, LIN Number of Automatic Measurements 36 36 36 36 36 Scope Type DSO DSO DSO DSO DSO Display Screen 7-Inch LCD 7-Inch LCD 7-Inch LCD 7-Inch LCD 7-Inch LCD See More
