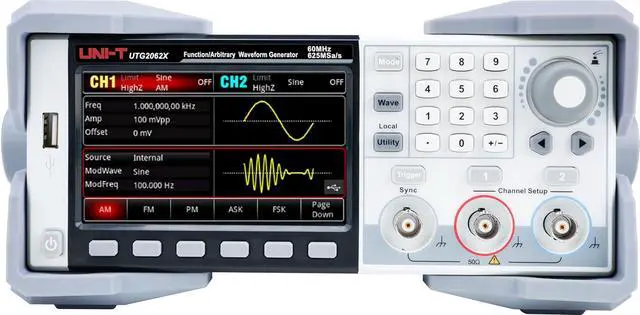

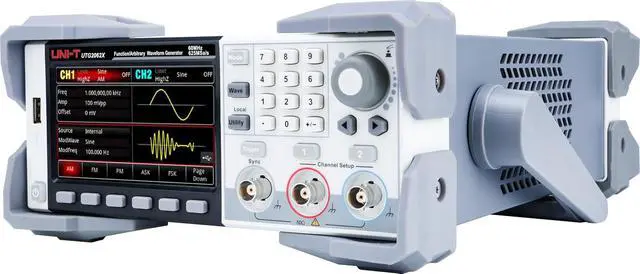

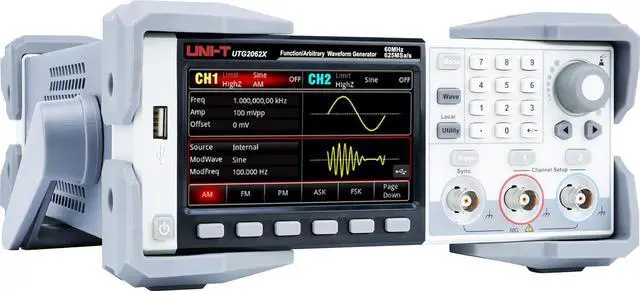

UNI-T UTG2062X - Advanced-Series Arbitrary Waveform Generator (2 Channels / 60MHz)

The UTG2000X series uses DDS technology to produce accurate and stable waveform output with resolution of up to 1Hz. It is a cost-effective, powerful, multifunctional function/arbitrary waveform generator. It can produce accurate, stable, pure and low-frequency output signals with low distortion. The operation is easy to use, with excellent technical specifications and a graphic display that increases ease of use. It is a versatile device that meets the requirements of learning and testing applications and improves work efficiency.
Features: - 625 MSa/s sample rate and 16-bit vertical resolution - Built-in 200 arbitrary waveforms - 10.9 cm ( 4.3" ) TFT LCD capacitive touchscreen
Technical data: -
Power supply: 100 V~240 V -
Display: 10.9 cm ( 4.3" ) TFT-LCD -
Channels: 2 -
Maximum frequency: 6 0 W.
MHz - sampling rate: 625 MSa/s -
Vertical resolution: 16 bit -
Wavelength: max. 64 Mpts -
Waveform Characteristic: 200 integrated arbitrary waveforms - waveforms: sine, square, ramp, pulse, sound, DC, Arb, Harmonic, PRBS, Expression, Double Pulse -
Modulation types: AM, FM, PM, DSB-AM, ASK, FSK, PSK, 3FSK, 4FSK, BPSK, QPSK, OPSK. SK, SUM, Q. AM, PWM
- working modes: continuous, modulation, frequency sweep, burst, counter

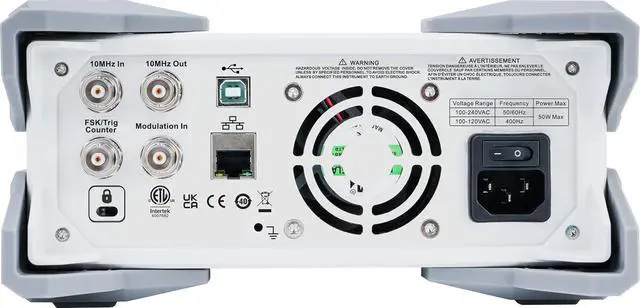

- standard connectors: USB host, USB device,
LAN - weight: 2.5
kg - dimensions: 215 x 103 x 316 mm
Scope of delivery: - functional generator, UTG2062X - power cord - USB cable - BNC to BNC cable - BNC cable - BNC cable - BNC cable - BNC cable - BNC cable - BNC cable - BNC cable - BNC cable - BNC cable - BNC C to crocodiles clamp cable
