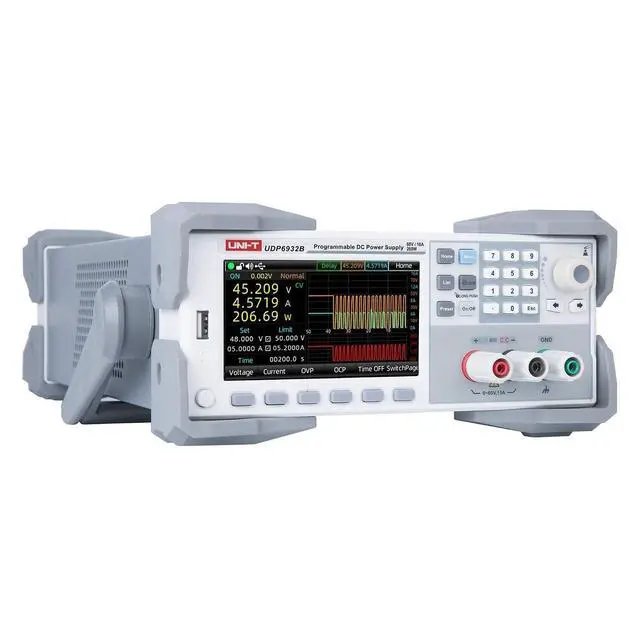

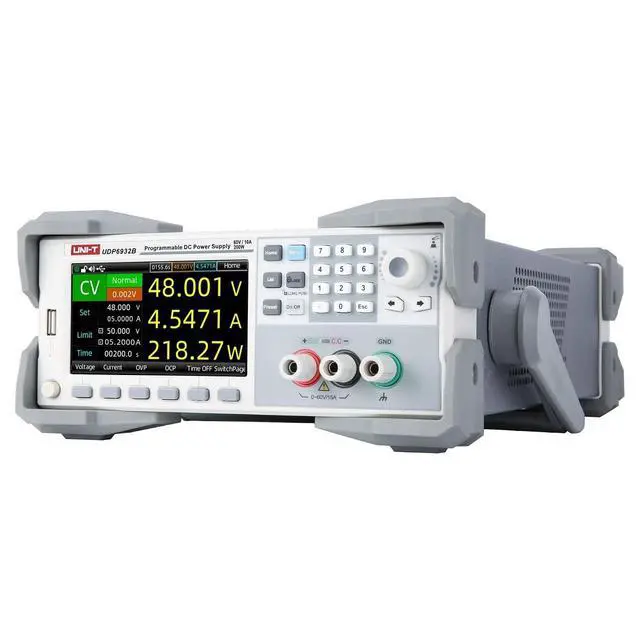

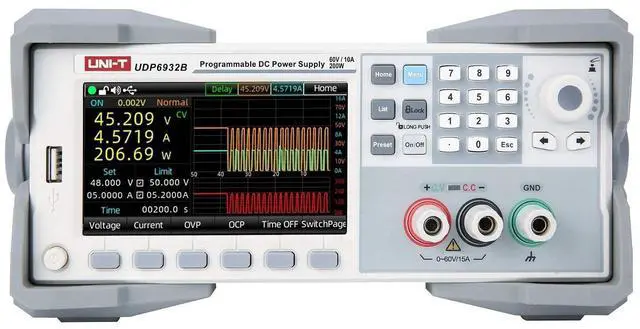

UNI-T UDP6932B 200W 60V/10A DC Switching Power Supply
- DC POWER SUPPLY: 1-channel switching supply delivering 200W total power; efficient switching topology for high-power applications in compact form factor; PRECISE OUTPUT CONTROL: Adjustable voltage and current with fine resolution; over-voltage and over-current protection safeguard your device under test; PROGRAMMABLE OPERATION: List mode and sequence programming for automated test routines; store and recall multiple output configurations for efficient workflow; REMOTE CONTROL: USB, LAN, and RS-232 interfaces for remote programming and SCPI automation; front-panel display shows set and actual output values; BENCH-READY: Ships with power cord and documentation; 5-year warranty with product registration (3+2 years); compact benchtop form factor
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
The UNI-T UDP6900 series is a single-output programmable DC switching power supply designed to provide flexible voltage and current outputs within its rated power. This versatility allows it to handle both high-voltage/low-current and high-current/low-voltage tests with a single unit, significantly reducing costs and saving space. For example, the UDP6942B model (60V/15A/360W) can be configured for various combinations, such as 60V/6A/360W, 40V/9A/360W, or 24V/15A/360W, making it adaptable to a wide range of testing needs. Equipped with RS232, RS485, USB, and analog interfaces, the UNI-T UDP6900 series supports SCPI protocol for remote control and PLC integration, enabling the creation of intelligent test platforms.
It is ideal for applications in DC-DC power module testing, battery charging, sensor evaluation, and other related fields, offering a powerful and flexible solution for engineers.
It is ideal for applications in DC-DC power module testing, battery charging, sensor evaluation, and other related fields, offering a powerful and flexible solution for engineers.
