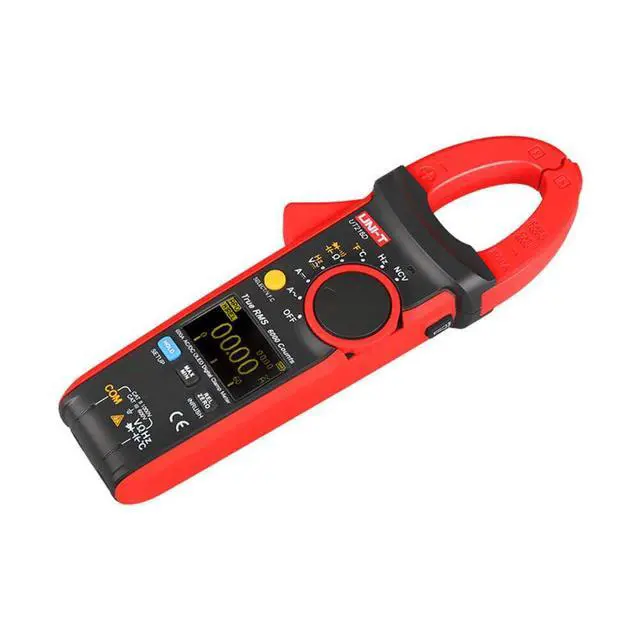

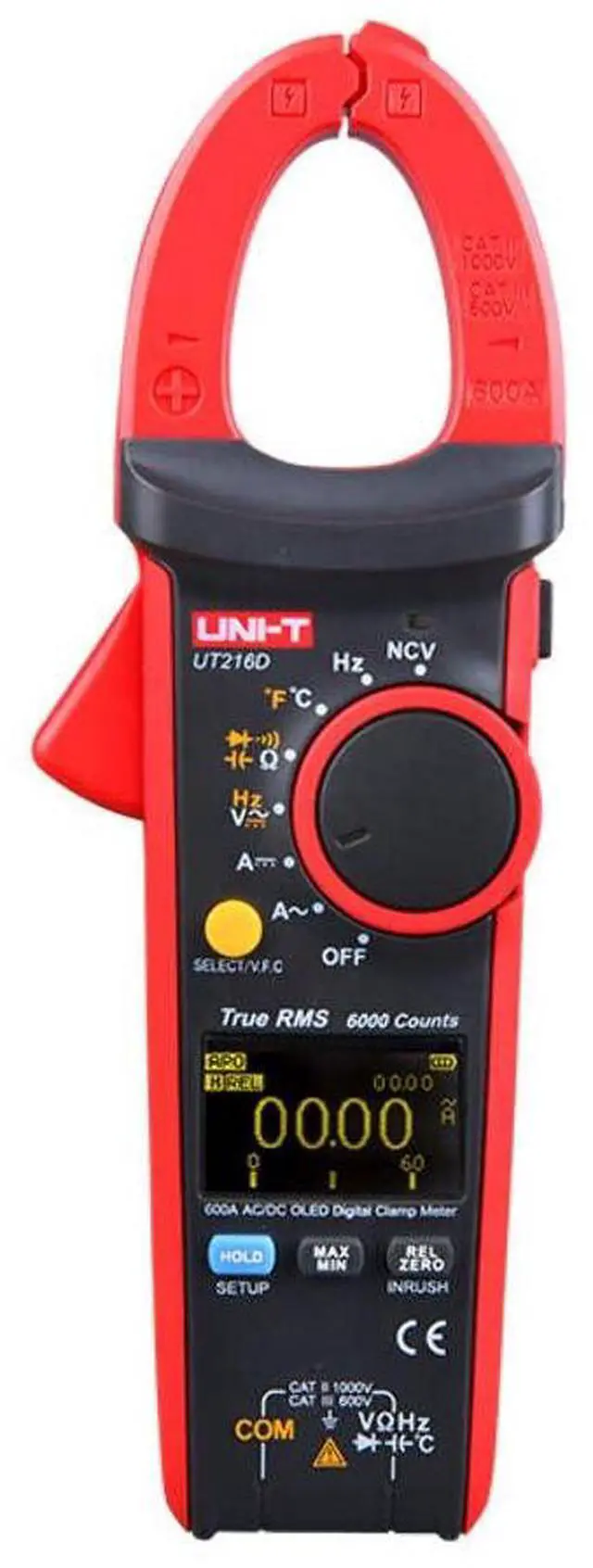

UNI-T UT216D 600A TRMS Digital AC/DC Clamp Meter Advanced OLED Display Measurement Capability 400Hz 600A MAX/MIN/Relative Modes NCV Flashlight VFC Current

High-Performance Measurement with Advanced OLED Display The UNI-T UT216D is a professional-grade true RMS digital clamp meter designed for high-frequency current measurement up to 400Hz. With its 6000-count OLED display, 600A AC/DC current capacity, and comprehensive measurement functions, this versatile meter delivers exceptional precision for technicians working in IT environments, server rooms, railways, aerospace, and industrial applications. Its double injection design offers a comfortable grip and enhanced durability, while specialized functions including inrush current detection, VFC (Variable Frequency Control), and non-contact voltage detection make it the ideal tool for electrical professionals working with modern electronic equipment and variable frequency drives.

Key Features High-Visibility
OLED Display: Superior brightness and contrast for excellent readability in all lighting conditions 6000-Count
Resolution: Precise measurements for detailed electrical diagnostics
True RMS Measurement: Accurate readings on non-linear loads and distorted waveforms
High-Frequency Response: Measurement capability up to 400Hz for specialized applications AC/DC
Current Measurement: Comprehensive 600A measurement capability Inrush
Current Function: Captures motor and transformer startup current spikes
VFC Function: Specialized filtering for variable frequency drive measurements
Temperature Measurement: Wide range from -40°C to 1000°C (-40°F to 1832°F) Non-Contact
Voltage Detection: Enhanced safety with LED indication
Flashlight Function: Built-in illumination for dark work environments
Analog Bar Graph: Visual representation of changing measurements Industry-Standard
Safety Rating: CAT III 600V and CAT II 1000V protection
