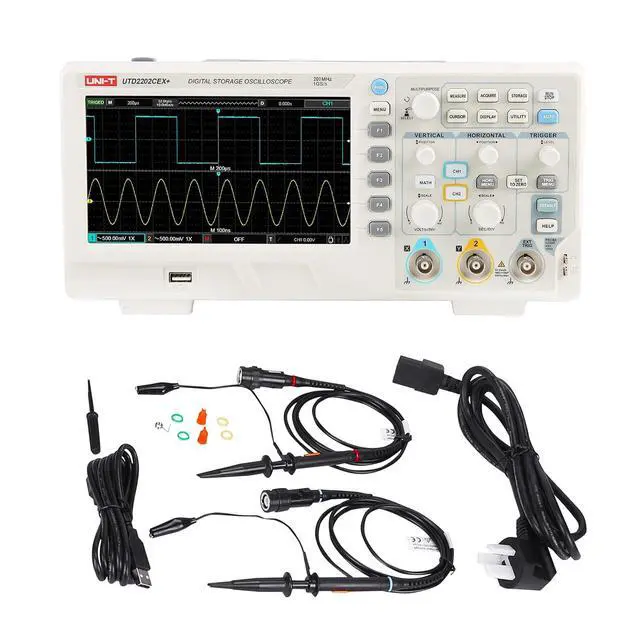

UNI-T Digital Storage Oscilloscope Kit 200Mhz 2 Channels 1GSa/s Sampling Rate 7" Display Screen 64kpts Memory Depth

Product description Features 50/100/200MHz bandwidth 2 channels, low noise floor, wide
vertical range: 1mV/div~20V/div
Memory depth: 64kpts System software upgrade via USB drive 7inch TFT LCD Supports plug-and-play USB storage device, remote control computure trough USB UNI-T Digital Storage Oscilloscope Kit UTD2000+ Series The UTD2000CEX+ Series digital storage oscilloscope is an entry-level bench solution that meets the key requirements of basic measurement. The simple and clear front panel is designed for easy operation. The UTD2000CEX+ Series oscilloscope has 50Mhz/100Mhz/200Mhz bandwidth. Real time sampling rate of 1GSa/s. Dual Channel and other performance output, storage depth of 64kpts. This model is suitable for communication, semiconductor, computer, instrument, industrial electronics, consumer electronics, automotive electronics, on-site maintenance, R & D / education and more. Multi-language optional, multi-frequency square wave optional With 9 Languagesit can meet the needs of users in more countries. Output standard square wave 10Hz, 100Hz, 1kHz, 10kz optional. Wider display range and multiple frequency square wave options Display range is 8divX16div Has a new AUTOSET strategy, which can easily cope with complex test scenarios. Various parameter measurement The UTD2000CEX+ series supports 34 kinds of automatic measurement functions Waveform recording functions Can record up to 1000 frames Achieve better waveform analysis effects through playback and storage functions.

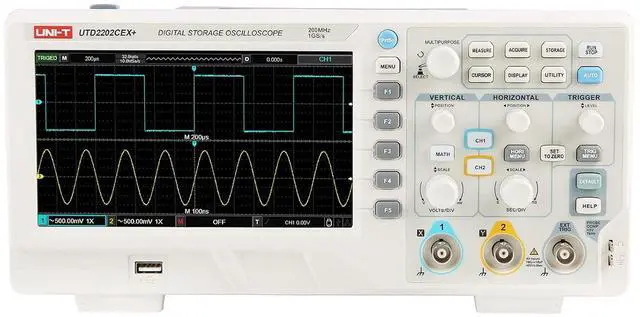

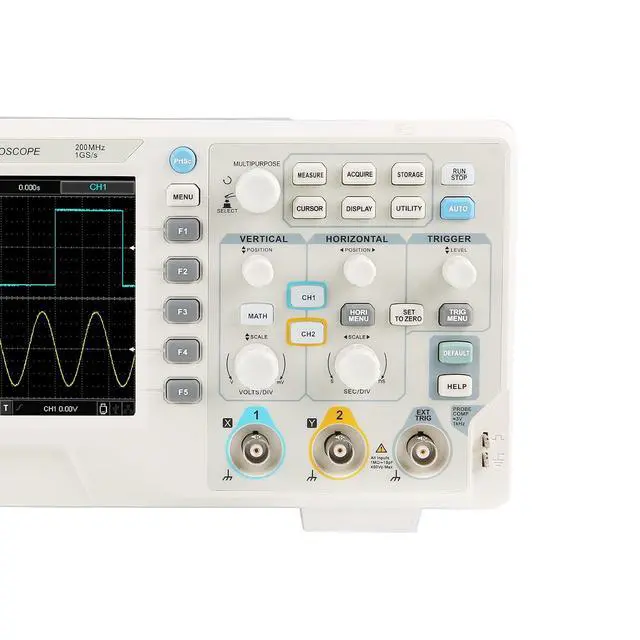

Oscilloscope Pannel Structure UTD2052CEX+ UTD2102CEX+ UTD2202CEX+ Buying Options Buying Options Add to Cart Price no data no data $ 299.00 $299. 00 Bandwidth 50Mhz 100Mhz 200Mhz Channels 2 2 2 Sampling Rate 1GSa/s 1GSa/s 1GSa/s Memory depth 64kpts 64kpts 64kpts Waveform capture rate 5, 000wfms/s 5, 000wfms/s 5, 000wfms/s Rise time <7ns < 3.5 ns < 1.8 ns Digital Oscilloscope Parameter Vertical scale (V/div) 1mV/div~20V/div Vertical resolution 8bit Time base scale (s/div) 2ns/div~50s/div Deviation from scope ±8div (away from screen center) Input impedance 1M±2%, 18±3pF Input coupling DC, AC, GND Timing accuracy ± (50+2 × service life )ppm Time base mode Y-TX-YRoll Storage methods Setup, wave, bitmap Trigger types Edge, pulse, alternate, slope, video Mathematical operations,, ×, ÷, FFT Auto measurements Max, Min, High, Low, Ampl, Pk-Pk, Middle, Mean, CycMean, RMS, C ycRMS, Period, Freq, Rise, Fall, RiseDelay, FallDelay, +Width, -Width, FRR, FRF, FFR, FFF, LRF, LRR, LFR, LFF, +Duty, -Duty, Area, CycArea, OverSht, PreSht, Phase, 34 paramet ers in total Frequency counter 6 bits Interface USB Host, USB Device, Pass/Fail Power 100-240VAC, 45-440Hz Display 7 inch TFT LCD, 800×480
