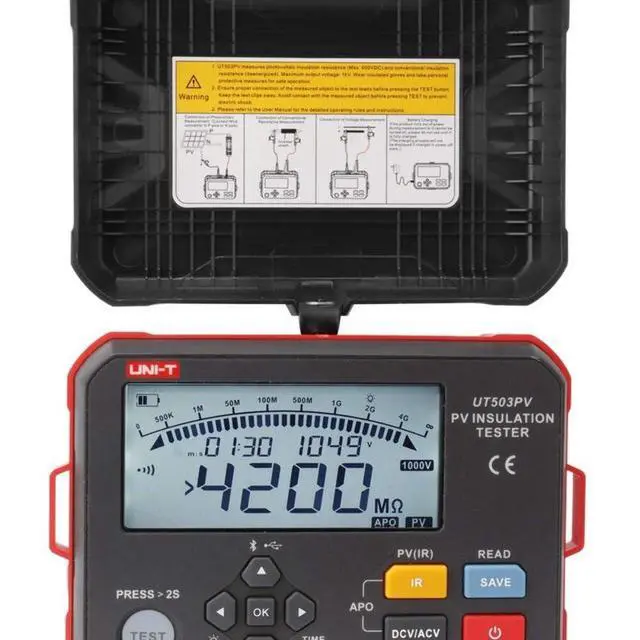

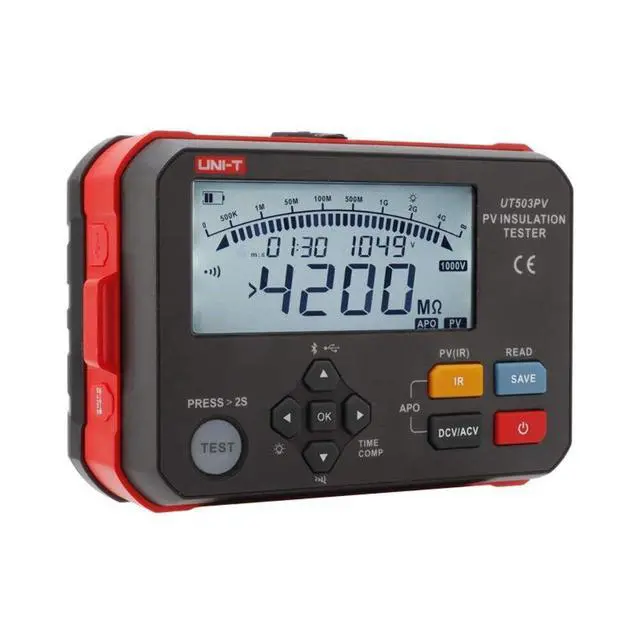

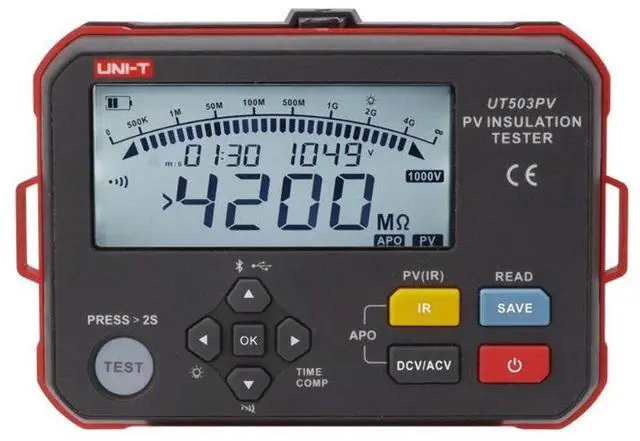

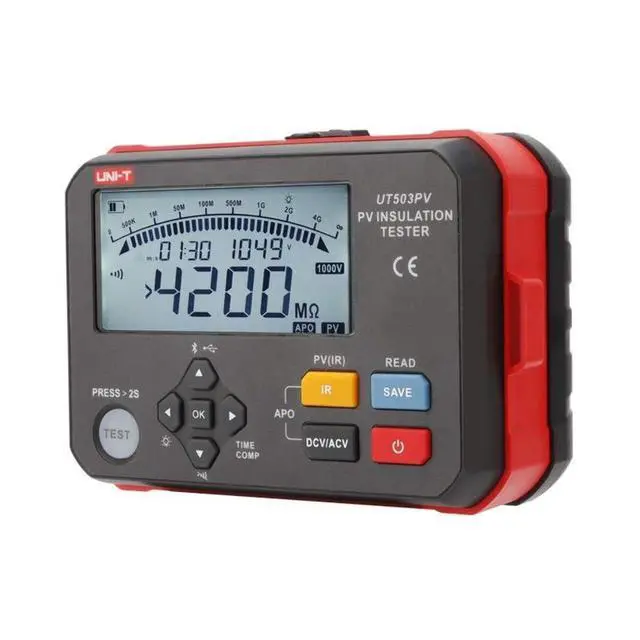

UNI-T UT503PV Solar PV Insulation Resistance Tester DC 1000V
- LIVE PV INSULATION TESTING: Measures insulation resistance on energized PV strings up to DC 1000 V no array shutdown or panel short-circuiting required, even after dark.; IEC 62446 COMPLIANT: Supports test voltages of 125 V, 250 V, 500 V, and 1000 V with a measurement range up to 4000 M and accuracy of ±(1.5%+5) for commissioning and verification.; SAFETY FEATURES: Automatic discharge clears stored charge after each test, a high-voltage alarm warns of live leads, and stepped-voltage testing with a comparison function aids diagnostics.; DATA STORAGE & CONNECTIVITY: Stores up to 1000 result sets on-board and transfers data via USB or Bluetooth app, making commissioning reports and maintenance records straightforward.; FIELD-READY BUILD: Rated CAT II 1000 V / CAT III 600 V with an IP54 sealed body; compact at approximately 1.1 lbs for easy rooftop and ground-mount use.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
The UNI-T UT503PV is a dedicated insulation resistance tester engineered specifically for photovoltaic systems. It measures insulation resistance on live PV strings at up to DC 1000 V, meaning you can verify an entire array without shutting it down or short-circuiting panels and since the measurement doesn't rely on sunlight, testing is fully functional after dark. Compliant with IEC 62446, it offers four selectable test voltages (125 V, 250 V, 500 V, and 1000 V) and a measurement range reaching up to 4000 M with an accuracy of ±( 1.5 %+5).
Safety features include automatic discharge after each test, a high-voltage alarm, and a CAT II 1000 V / CAT III 600 V rating. The IP54-sealed body holds up to outdoor rooftop and ground-mount environments. Stepped-voltage testing and a comparison function simplify pass/fail diagnostics, while onboard storage holds up to 1000 result sets transferable via USB or Bluetooth app ideal for commissioning reports and maintenance records. Weighing approximately 1.1 lbs and compact enough for field work, the UT503PV is also well-suited for EV-charging and battery energy storage DC wiring verification.
Safety features include automatic discharge after each test, a high-voltage alarm, and a CAT II 1000 V / CAT III 600 V rating. The IP54-sealed body holds up to outdoor rooftop and ground-mount environments. Stepped-voltage testing and a comparison function simplify pass/fail diagnostics, while onboard storage holds up to 1000 result sets transferable via USB or Bluetooth app ideal for commissioning reports and maintenance records. Weighing approximately 1.1 lbs and compact enough for field work, the UT503PV is also well-suited for EV-charging and battery energy storage DC wiring verification.
