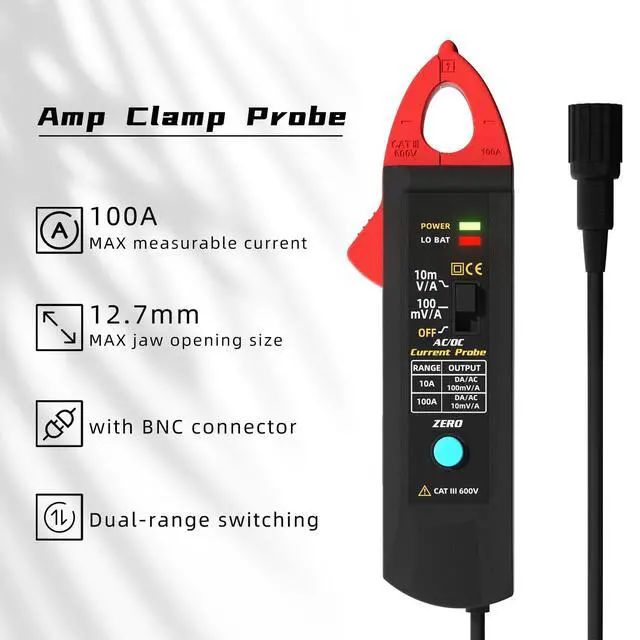

BSIDE AC DC Current Clamp Probe for Oscilloscope, 10mA-100A Range, 100mV/A & 10mV/A Sensitivity, 40-20KHz, with Standard BNC Connector and Carry Case for HVAC Electrical Automotive Amp Draw

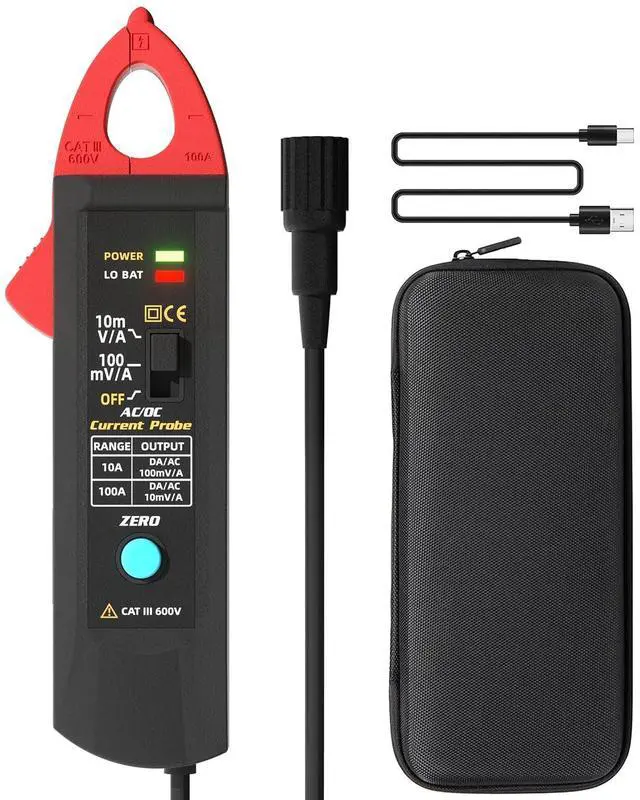

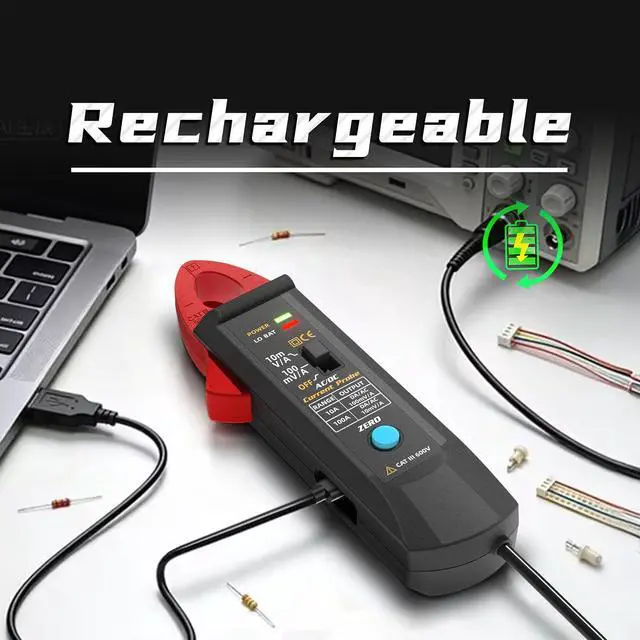

- Features: Handheld current clamp probe AC and DC current measurement 100mV/A & 10mV/A sensitivity for selection Compatible with any standard BNC interface oscilloscopes Specifications: DC current: 1)100mV/A: 1mV-2V/10mA-20A ±(1.5% + 1mV) 2)10mV/A: 1mV-400mV/100mA-40A ±(2% + 1mV); 400mV-1V/40A-100A ±(4% + 3mV) AC current: 1)100mV/A (40Hz-2KHz): 1mV-1V/10mA-10A ±(2% + 3mV); 100mV/A (2KHz-10KHz): 1mV-1V/10mA-10A ±(4% + 3mV); 100mV/A (10KHz-20KHz): 1mV-1V/10mA-10A ±(6% + 3mV); 100mV/A (40Hz-20KHz): 1V-1.5V/10A-15A ±(8% + 3mV); 2)10mV/A (40Hz-1KHz): 1mV-400mV/100mA-40A ±(2% + 3mV); 10mV/A (1KHz-2KHz): 1mV-400mV/100mA-40A ±(4% + 3mV); 10mV/A (3KHz-5KHz): 1mV-400mV/100mA-40A ±(6% + 3mV); 10mV/A (40Hz-20KHz): 400mV-1V/40A-100A ±(8% + 30mV); Power: 3.7V 400mA (built-in, rechargeable) Size: 156.9*45.8*30mm Weight: 121g Package Includes: 1 x Current Clamp Probe (with BNC Connector) 1 x Charging Cable 1 x Carrying Case 1 x User Manual
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
[10mA-100A

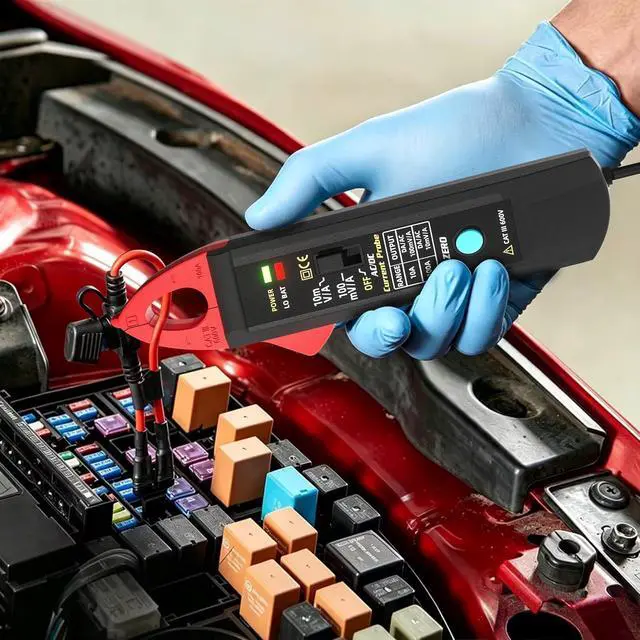

DC/AC]: Companion to your oscilloscope, this current probe measures dc and ac amps from 10mA to 100A. Suitable for HVAC, automotive diagnostics, and industrial circuits.;
[Dual Sensitivity]: 100mV/A & 10mV/A sensitivity output guarantees easy reading on you meter.;
[Non-contact Testing]: Without breaking the circuit, this current clamp probe could accurately measure ac and dc (Hall Effect sensor technology) amps.;

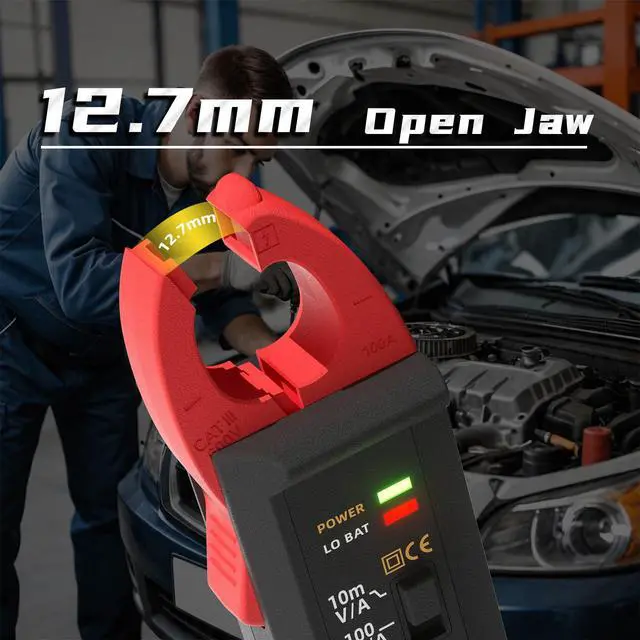

[High Standard]: Maximum conductor diameter is 12.7 mm, CAT III 600V safety rating with double insulation design.;

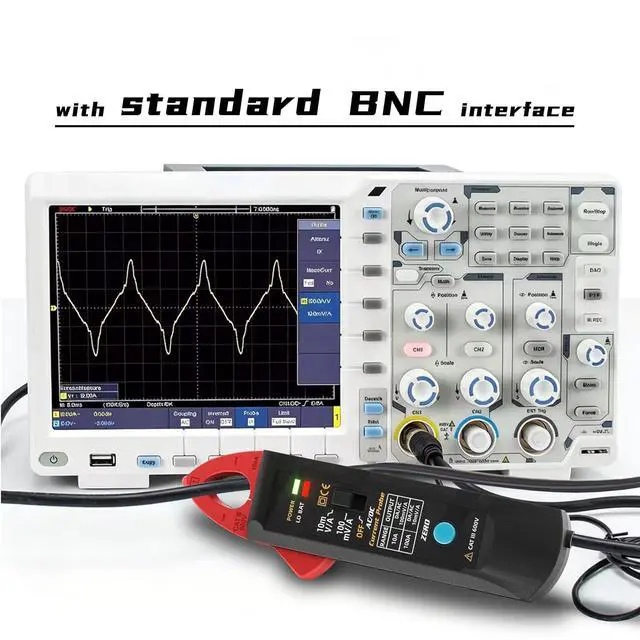

[with BNC Connector]: The current clamps have been designed for use with any standard BNC interface oscilloscopes.;
[Carrying case]: Come with a roomy carry case, which could hold and protect your meter and current clamp.
DC/AC]: Companion to your oscilloscope, this current probe measures dc and ac amps from 10mA to 100A. Suitable for HVAC, automotive diagnostics, and industrial circuits.;
[Dual Sensitivity]: 100mV/A & 10mV/A sensitivity output guarantees easy reading on you meter.;
[Non-contact Testing]: Without breaking the circuit, this current clamp probe could accurately measure ac and dc (Hall Effect sensor technology) amps.;
[High Standard]: Maximum conductor diameter is 12.7 mm, CAT III 600V safety rating with double insulation design.;
[with BNC Connector]: The current clamps have been designed for use with any standard BNC interface oscilloscopes.;
[Carrying case]: Come with a roomy carry case, which could hold and protect your meter and current clamp.
